5
ASSEMBLY.......................................................
The heater is packaged with the feet unattached. You must attach them before operating
the heater.
CAUTION: Do not operate this heater without
casters attached.
WARNING: Do not operate without feet attached.
Do operate the heater only in upright position (feet
on the bottom, controls on the top), a
position could create a hazardous situation.

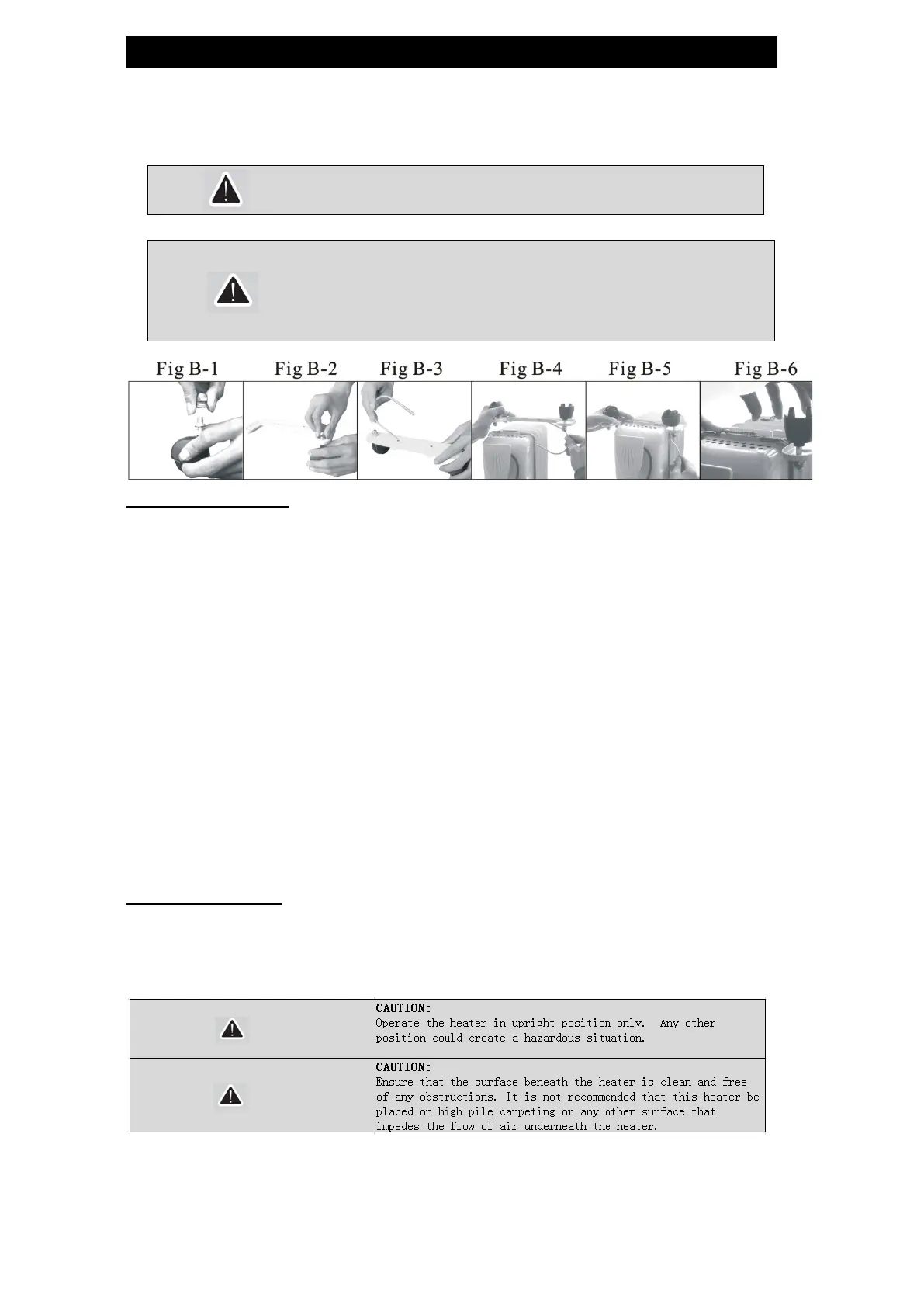

Assembly Instructions:
Unpack the heater and remove all parts from the packaging.
For ease of assembly, place the heater upside down or on its side on a soft surface which will
not scratch the unit. Use one hand to hold it in place.
• Place the bowlegged castor-mounting plate in the front and put straight castor-mounting plate in
the back.
1. Unscrew nut and washer and nut. (Fig B-1)
2. Attached casters with two metal plates with washer and nut (Fig B-2)
3. Place the bowlegged metal plate and wheel assembly between the last two fins at each end of the
heater as shown in Fig B-3,4,5.
4 .Attach the plate and wheel assemblies onto the heater with the U bolts and wiring nuts supplied as
shown in Fig B-3,4,5
5. Remove the wing nut from the U bolt and insert the U bolt through the holes in the plate and wheel
assembly as shown, reattach the wing nut and tighten firmly.(Fig B-6). Repeat this procedure on the
opposite side.
Location of the Heater:
1. Turn the heater upright. Ensure legs are correctly installed and level.
2. Place heater on a flat and stable surface. Setting the heater on an incline or decline may cause
damage to the unit and create a hazardous situation.
