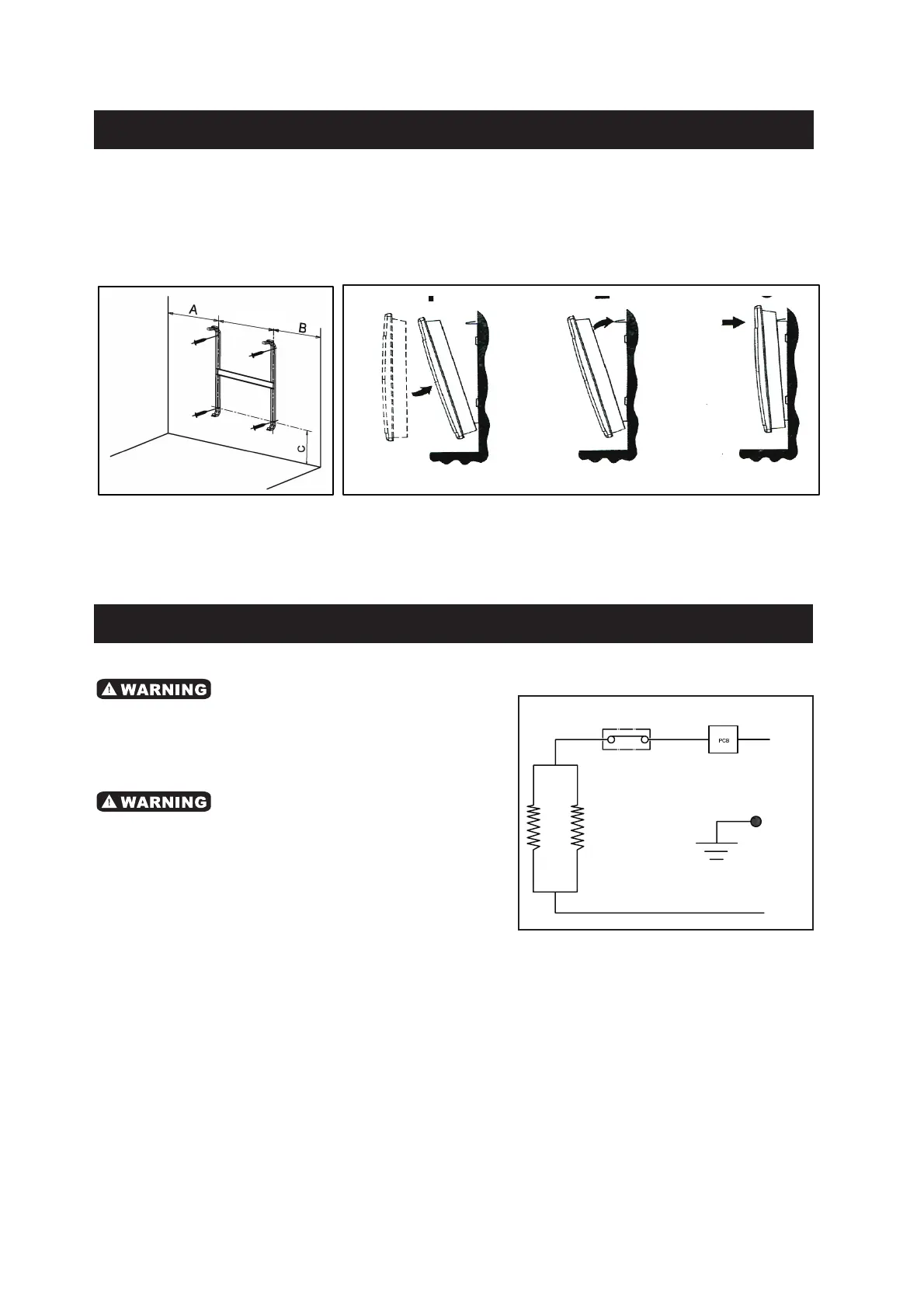

INSTALLATION INSTRUCTIONS
• The heater must be installed by a certified
electrician and in accordance with the local and
national building codes.
• This convection heater is to be used on a 240 V
CA power supply and grounded outlets.
ELECTRICAL WIRING
4
Wall Mounting
1) Drill the required holes in the wall using the positioning screw holes.
2) Attach the bracket to the wall with the screws. (Fig.2)
3) Mount the heater to the bracket and engage the corresponding slots on the rear of
the heater. (Fig.3)
Removing the heater from the bracket
1) Press and loosen all clips.
2) Pull the heater to disengage the clips from the bracket.
THERAL CUT-OFF PROTECTION
HEATER ELEMENT
GROUNDING
Fig
.2
Fig .3
Center distance
L1
L2
To Next Page
