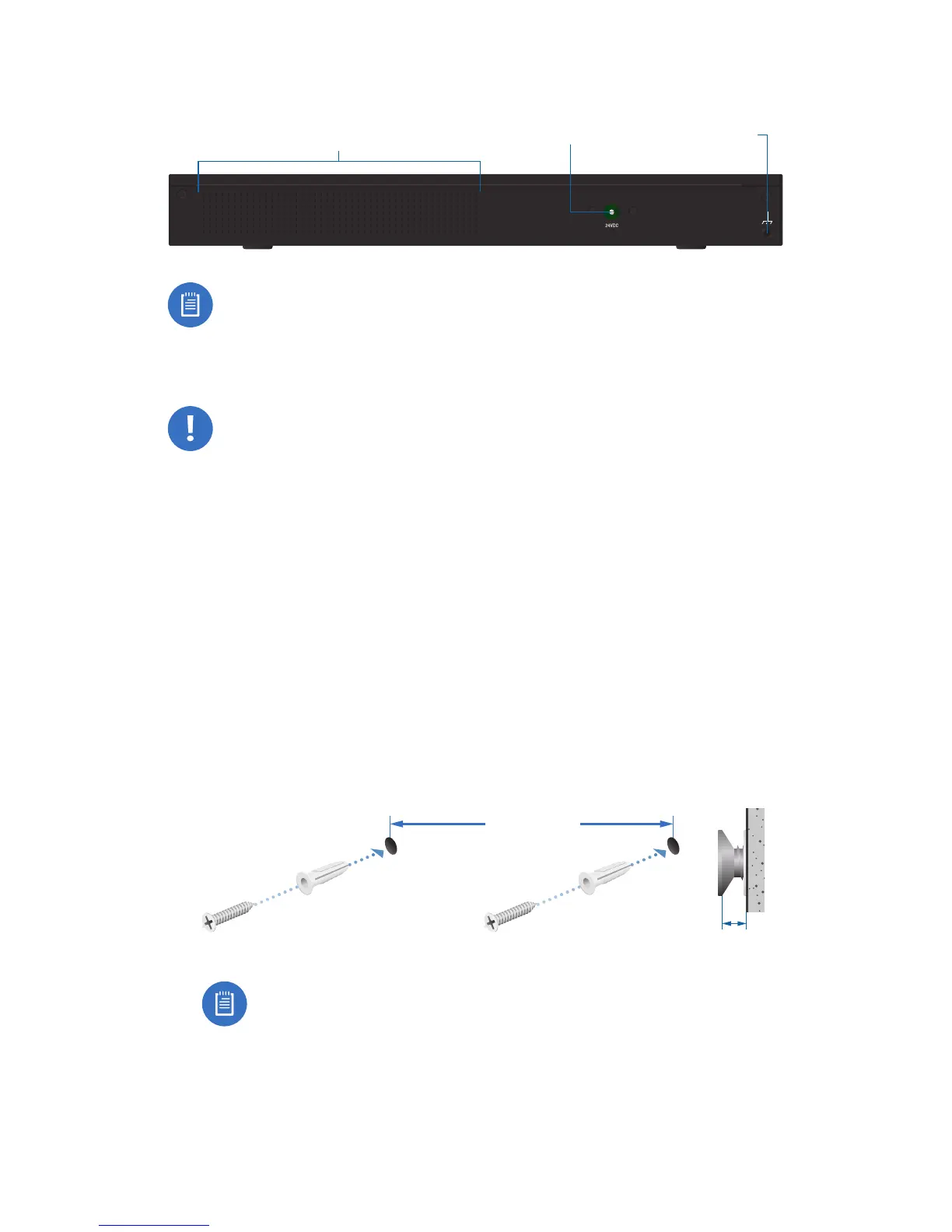

Ubiquiti EdgeRouter 10X User Manual

Back Panel
Grounding Point
Ventilation Holes
Power
Note: There are additional ventilation holes on the sides
of the EdgeRouter.
Hardware Installation
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
Wall Mounting
To mount the EdgeRouter on a wall, you will need a drill, a
6mm drill bit, and a Phillips screwdriver.
1. Use a 6 mm drill bit to drill two holes 190 mm apart.
2. Insert the Wall Mount Anchors into the holes. Use a Phillips
screwdriver to secure a Wall Mount Screw to each anchor.
Leave a clearance of approximately 3 mm between each
screw head and its anchor.
190 mm
3 mm
Note: You can also mount the EdgeRouter in a
vertical orientation.
