EVK-R5 - User guide
UBX-19042592 - R06 Appendix Page 15 of 23
C1-Public

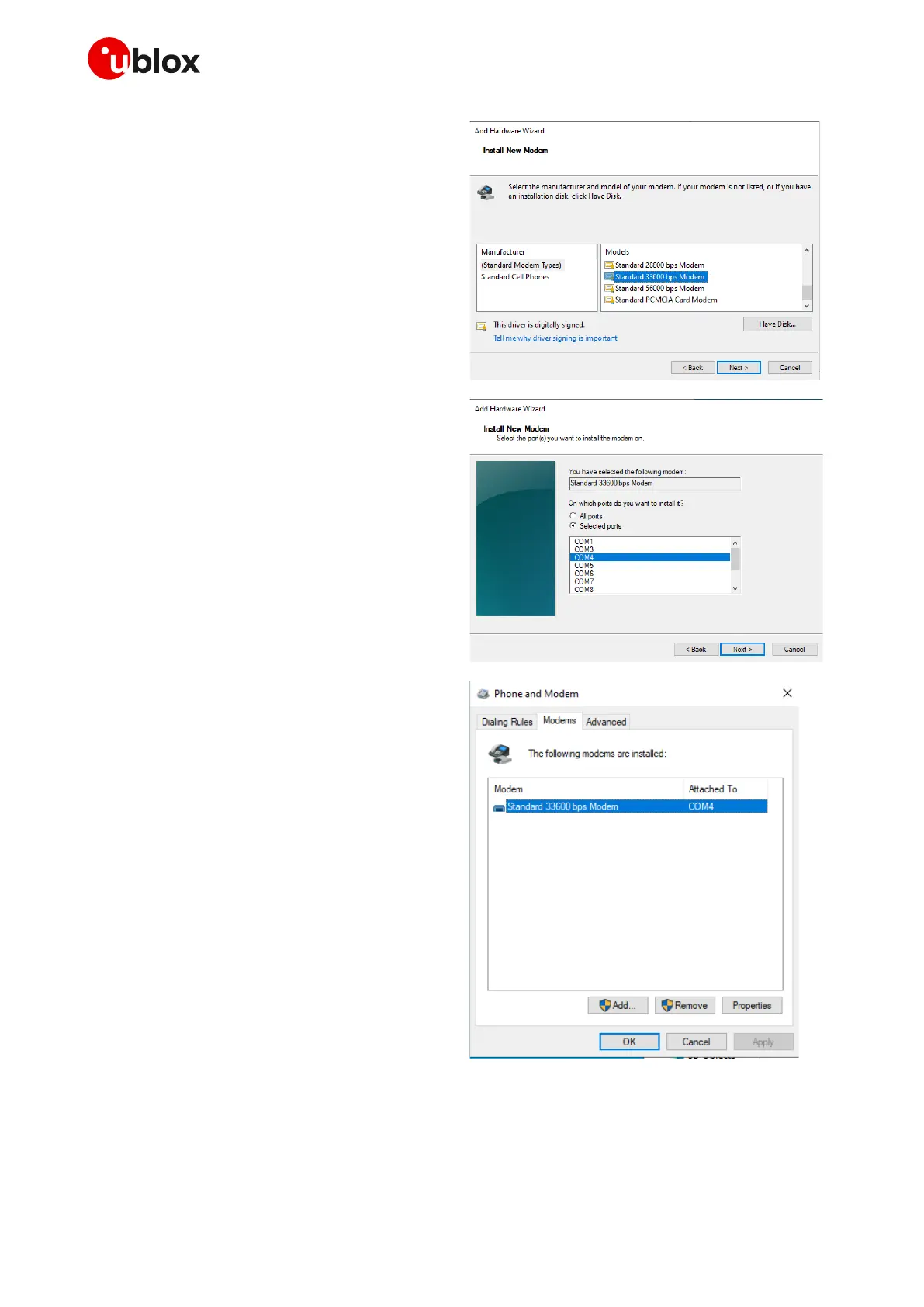

3. Select “Standard 33600 bps Modem” and
click “Next”.
4. Select the COM port to use for data
communication and click “Next”. This is the
COM port on which the modem will be
installed.
5. In the next step, click “Finish” to complete
the modem installation.
6. Now the new modem is visible under the
Modems tab in Control Panel > Phone and
Modem.
Any extra initialization AT command (e.g., to set
a specific APN name) can be entered by
selecting Properties and filling in the “Extra
initialization commands” text box under the
Advanced tab.
Now the module is ready and the connection can be configured.
The modem configuration can be edited also by clicking on the modem name in the Device Manager.
