UTD2000 Series User Manual
43
Chapter IX Storage
The DSO setting, waveform and screen image can be store in DSO or USB, the stored
setting or waveform can be recalled when needed. Press STORAGE to enter storage
setting interface.

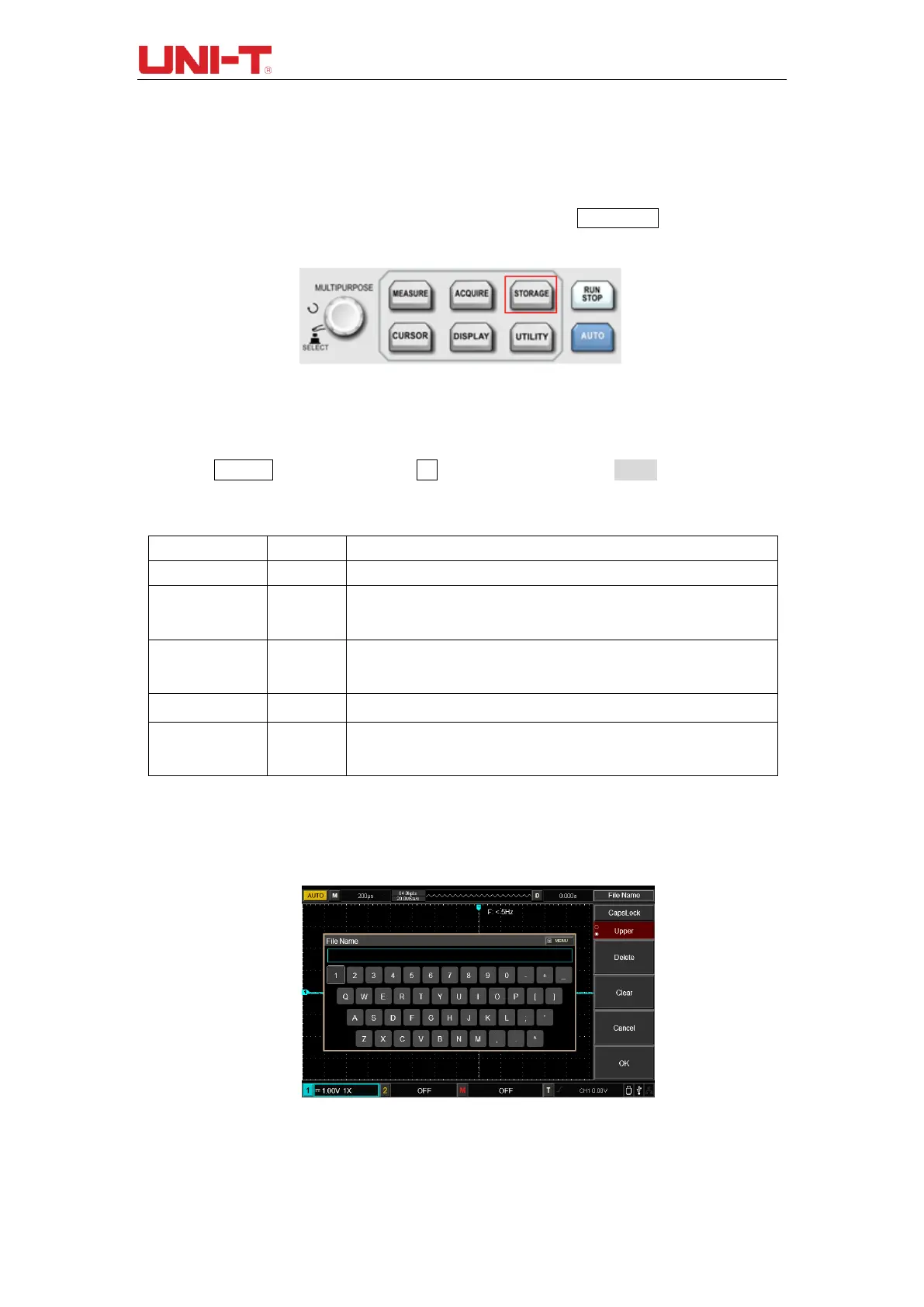

Figure 9-1 Function Key of STORAGE
9.1 Set storage and load
Press the Storage button, then Press F1 to choose storage type Setup, and you will see
the following menu.
Table 9-1 Storage setting menu
Select storage type as setup.
Select storage location. DSO can store 20 groups, USB can sotre 200
groups.
Delete: Delete the stored files. File name: The menu will change to file
name when the storage medium is USB.
Store the file to current designated storage location.
Load the previous storage location in current designated storage location to
get the DSO back to stored setting status.
Edit file name
When the storage medium is USB, the stored file name can be edited, press file name to
enter file name edit window, as shown in the figure below:
Figure 9-2 File name window
Move the cursor by adjusting multifunctional knob, press multifunctional knob switch
to choose number or letter, press CONFIRM to go back to previous menu.
