UNIQUE ELITE 30E&36E
8
Dimensions and Clearances
All units must be installed in accordance to minimum rear and side wall clearance and
clearances extended vertically above the cook top, specifics relating to minimum
clearances are stated on the serial plate located at the back of the appliance near the gas
inlet connection.
ANY OPENINGS IN THE WALL BEHIND THE UNIT AND IN THE FLOOR
UNDER THE UNIT MUST BE SEALED.
Note. Due to potential hazards it is recommended that storage cabinets NOT be
installed above the cooking surface.
IN THE EVENT OVERHEAD CABINETS ARE INSTALLED, THE
MAXIMUM DEPTH OF CABINETS INSTALLED ABOVE COOKING TOPS
SHOULD BE 13”.

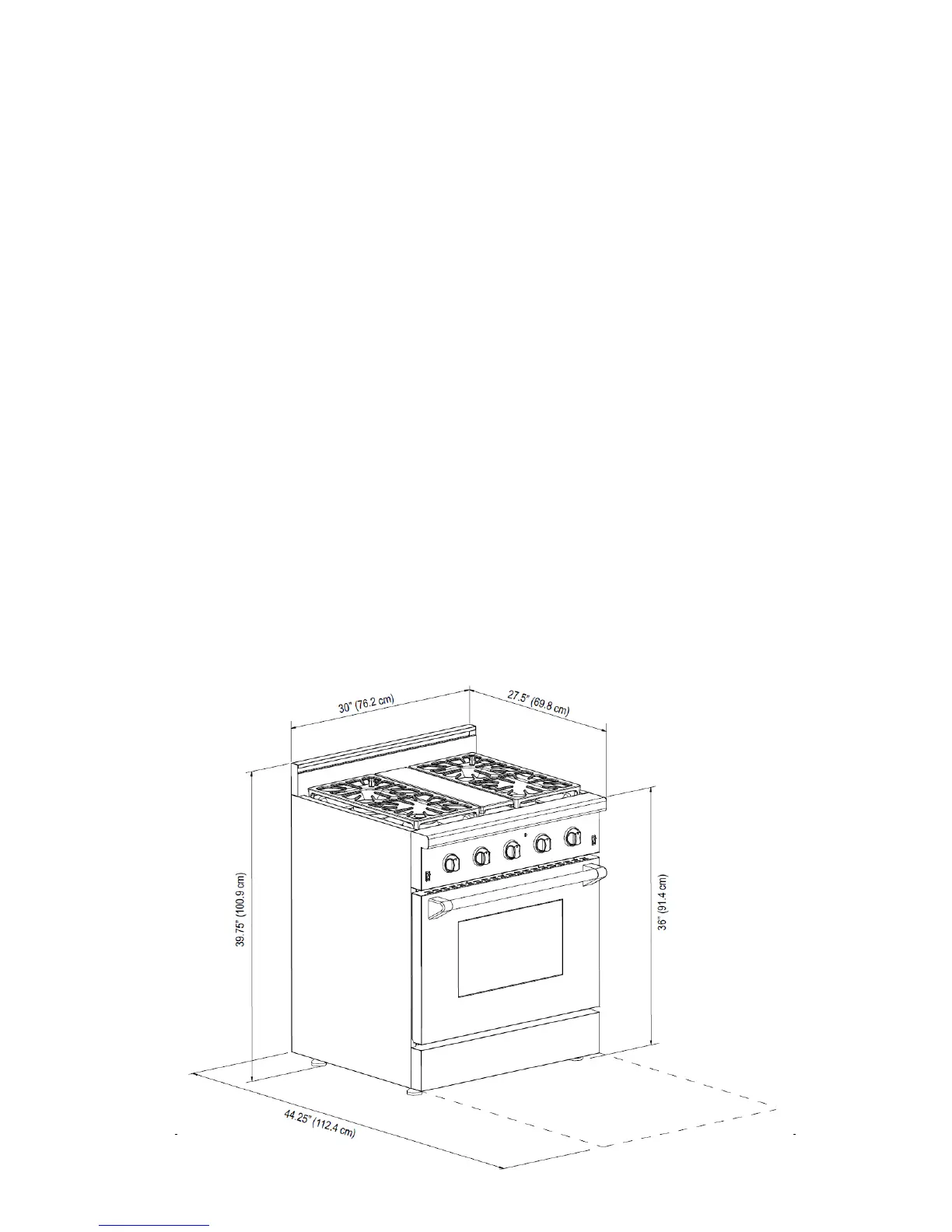

UGP 30E Specs
The range may be installed flush to the rear wall. You may install a non-combustible
material on the rear wall above the range and up to the vent hood. It is not necessary
to install non-combustible materials behind the range below the height of the
counter top. The minimum distance from the side of the range above the counter
top to combustible sidewalls must be at least 10 inches.
