8. INSTALLING CONTROL SYSTEM and CONNECTING POWER
8.1 Installing the Thermostat (Fig. 8-1)

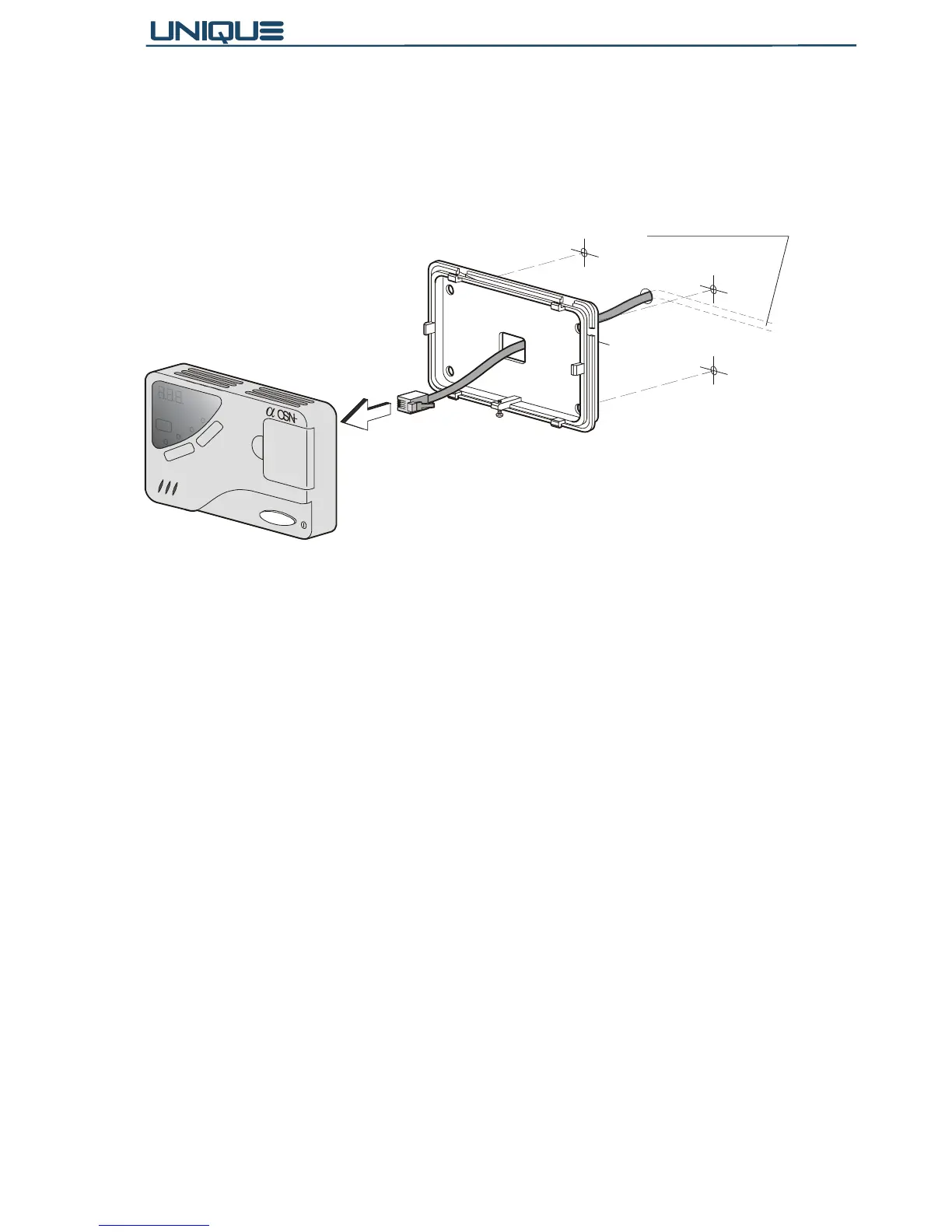

Fig. 8-1
• Remove the thermostat from the packaging.
• Install the in-room wall mounted thermostat:
• Separate the front panel from the back panel by depressing the tongue lock
located in the back part of the unit.
• Push the back panel out.
• Gently disconnect the data cable from its quick connect wiring harness.
• Line the back panel up against the wall or against any other flat surface onto
which it is to be mounted. Drill holes and use appropriate fixing screws to
fasten the panel to its location.
• Locate the terminal box. See Fig. 8-2 and Fig. 8-3.
• Complete the electrical connections according to the electrical wiring diagrams.
• Reconnect the data cable and close back the cover of the thermostat to its base.
