LOADING PLATE UNITS INTO THE VS9 HOUSING
With the VS9 resting on a stable working surface, unlatch the front housing and swing it toward you.
Lift the assembled plate unit and insert it into the rear housing. Lift the shaft lock pin and seat the plate
unit with a gentle twist. Make sure that the thrust bearing on the shaft is fully inserted into the rear
housing and that the square milled end on the shaft has cleared the rear housing hub. Release the shaft
lock pin and close and securely latch the front housing.
The VS9 is now ready to mount to the power source equipment.

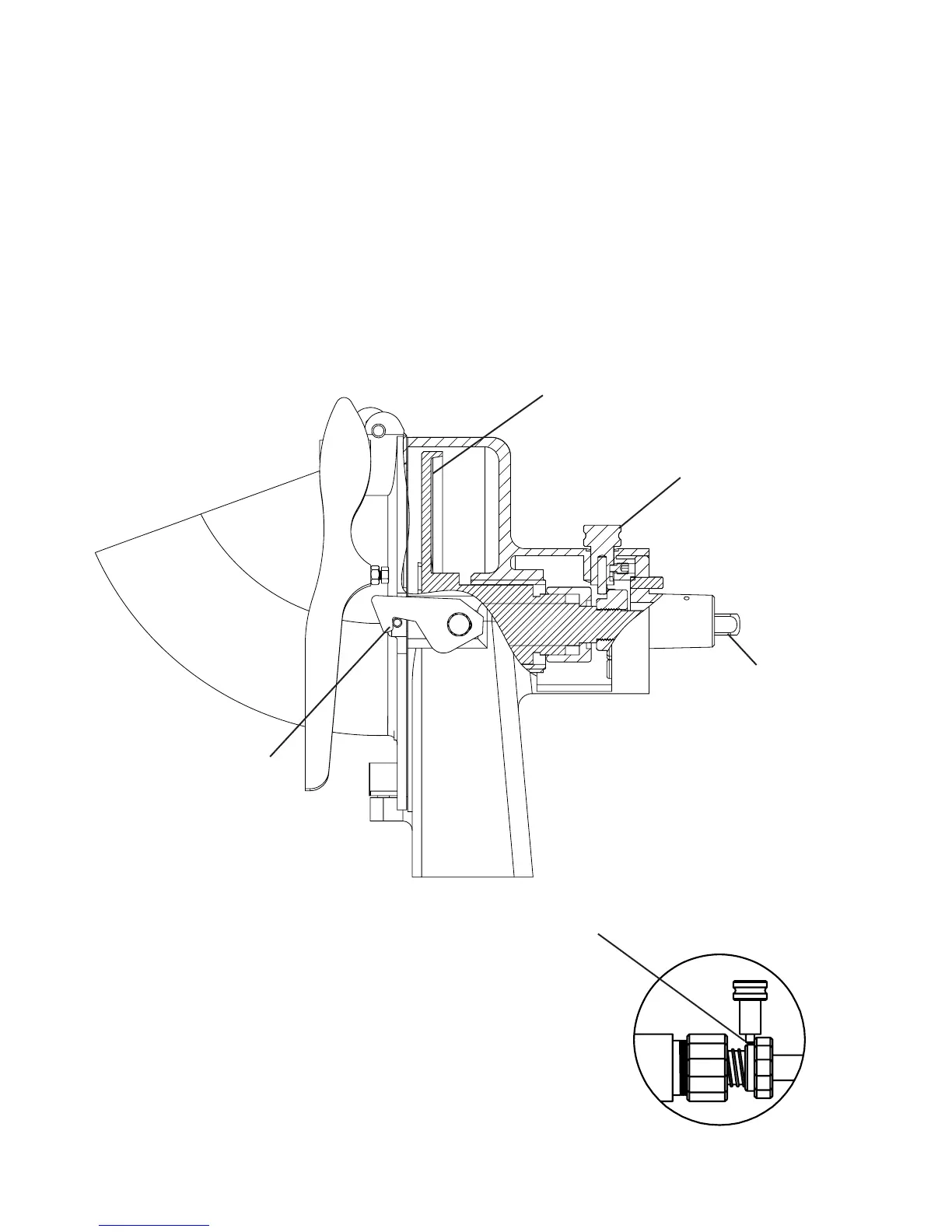

PROPERLY LOADED VS9/VS9H
FIGURE 8
Plate positioned far enough
back to prevent contact with
feed plate
Shaftlockpin
properly seated
Square milled
shaft end
Housing securely latched
Lock pin properly
engaging thrust bearing
