LPG gas connection ( only for gas ovens)
Before installing the appliance carefully read chapter “
Safety regulations“
at page
5
.
Connections to the gas supply and the gas utility lines must comply with the regulations in force in
the country of installation of the appliance; and all connections must be performed by qualified in-
staller authorised by UNOX.
Failure to comply with these regulations may cause damage and inju-
ries, invalidates the guarantee and relieves UNOX of all liabilities.
Connecting to the gas utility system

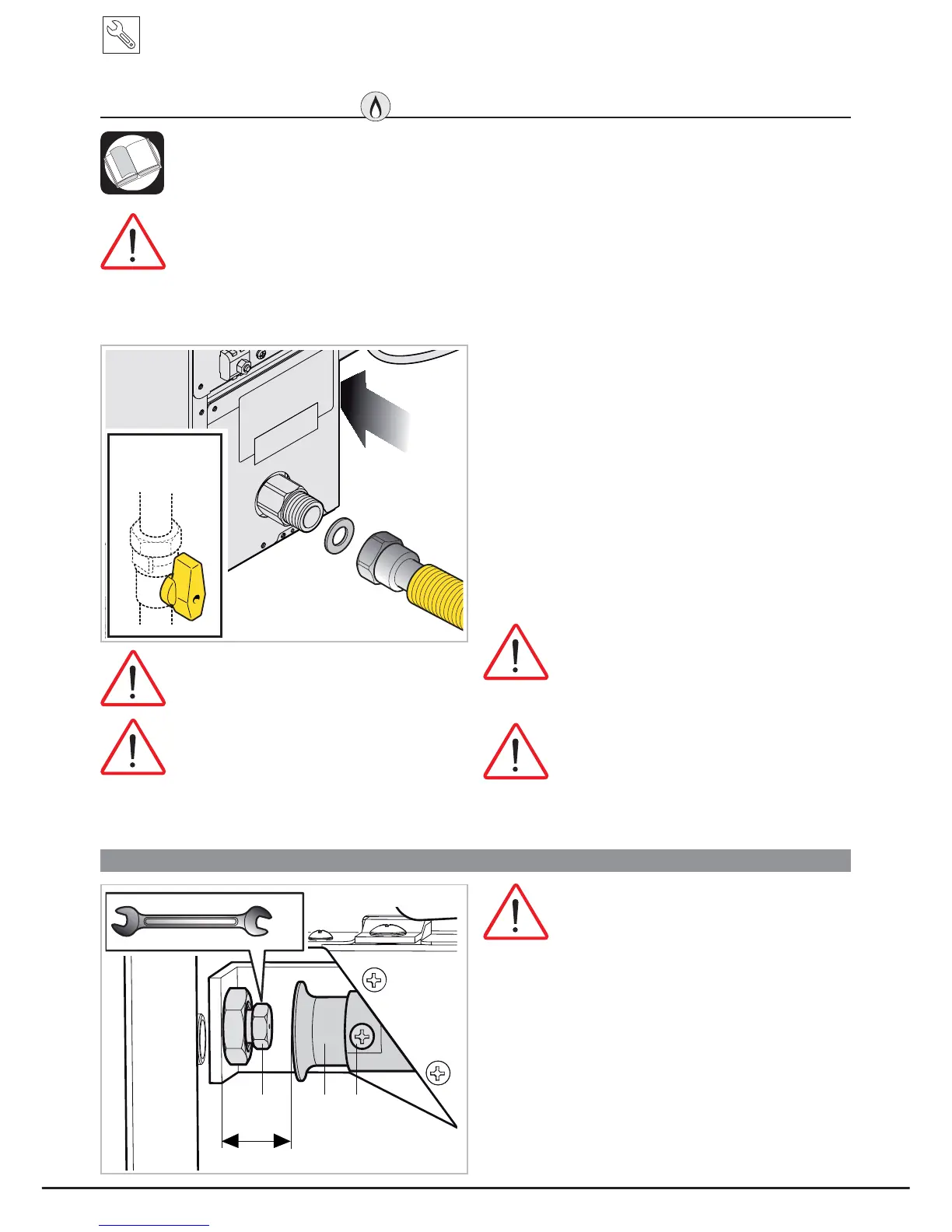

The appliance is factory set, configured and tested to
operate using:
/3*JDVEXWDQHSURSDQHW\SH**
- nominal pressure of 28/30/37 mbar.
- maximum gas inlet pressure of 55 mbar.
Make sure that the gas supply and pressures comply with
DERYHLQGLFDWLRQVEHIRUHFRQQHFWLQJWKHDSSOLDQFHZKLFK
DUHDOVROLVWHGRQWKHVSHFLILFDWLRQVODEHORWKHUZLVHFRQ-
sult chapter
“Adapting to different gas supplies“
The 3/4" female type attachment for connection to the
gas utilities is in the back of the oven: the oven must be
FRQQHFWHGXVLQJDIOH[LEOHSLSHZLWKDFXWRIIYDOYHQRW
VXSSOLHGSODFHGXSVWUHDPRIWKHDSSOLDQFH
Make sue that the piping does not run
next to hot areas and that they are not
subject to pulling, twisting or crushing
forces.
The gas supply system and all attach-
ments must be up to code and respect
the regulations in force in the country of
use.
Adapting to different gas supplies
CHANGING INJECTOR
C
H
AB
13
Operations to adapt the oven to anoth-
er type of gas must be exclusively per-
formed by qualified installer authorised
by UNOX.
Shut the cut-off valve, disconnect power and check that the
diameter of the replacement injector in 1/100 mm matches
the value printed onto it.
Unscrew and remove injector C using a 13 mm spanner.
Install a new injector that is suitable to the type of gas
XVHGVHH
“
Table C” columns A and B
Loosen screw "A".
Position bushing "B" at distance H in relation to the injec-
WRUXVHGVHH
“
Table C” column C
/RRVHQVFUHZ$RQFHDJDLQ
Components sealed with red paint must
never be adjusted!
Unox provides upon customer request an
adapter whose diameter varies in relation
to oven model to connect the evaacua-
tion switch to the wind deflector device.
hose not
supplied
3/4” female
fitting
cut-off valve
not supplied
injector
