Page 7TM12 Work Platform
B
LOCKING
T
HE
E
LEVATING
A
SSEMBLY

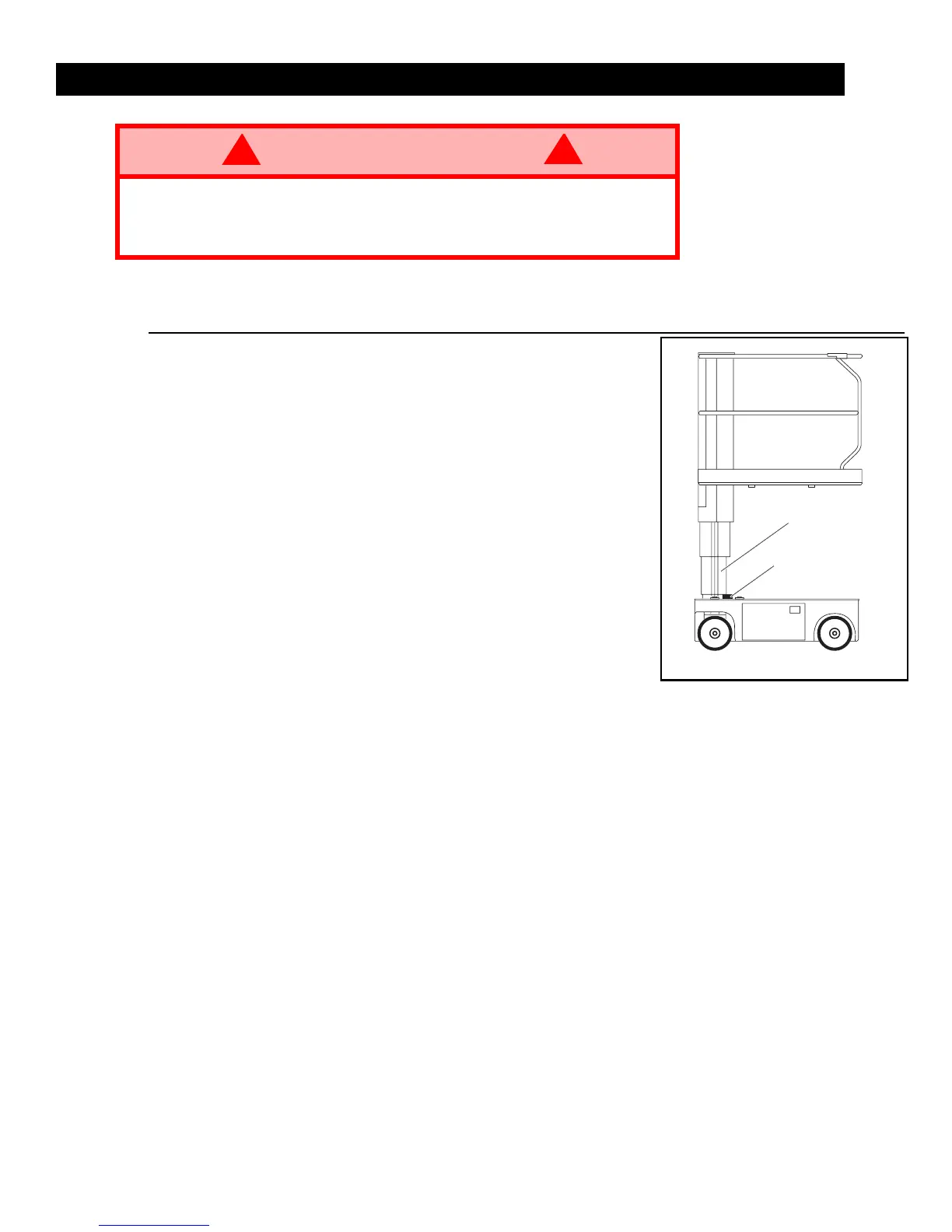

Figure 7:
Blocking the Elevating Assembly
B
RACE
I
NSTALLATION
1. Park the work platform on firm, level surface.
2. Verify that the Chassis and Platform Emergency Stop
Switches are ON by pulling each button out.
3. Turn and hold Chassis Key Switch to CHASSIS.
4. Push Chassis Lift Switch to UP and elevate platform
approximately 4 feet (1,2 m).
5. Place a solid wood block, 2”x 4”x18” (51mm x 100mm x
45cm) between the second mast section and Chassis
just behind the mast assembly. (See Figure 7)
6. Push Chassis Lift Switch to DOWN position and gradu-
ally lower the platform until the second mast section is
supported by the block.
B
RACE
R
EMOVAL
1. Turn and hold the Chassis Key Switch to Chassis. Push
the Lift/Lower Switch to UP and gradually raise the plat-
form until the wood block can be removed.
2. Remove the wood block.
3. Turn and hold the Chassis Key Switch to CHASSIS. Push the Lift/Lower Switch to DOWN and
completely lower platform.
M
AINTENANCE
WARNING
!
!
Never perform service while the platform is elevated without first blocking the
elevating assembly.
DO NOT
stand in elevating assembly area while deploying or storing brace.
DO NOT
block elevating assembly with a load on the platform.
Number 2 Mast
Wood Block
To Next Page
