12
DS1706-011
13
DS1706-011
Folio video door phones Ref. 1706/5 and Ref. 1706/6 are designed to be used in 2Voice systems.

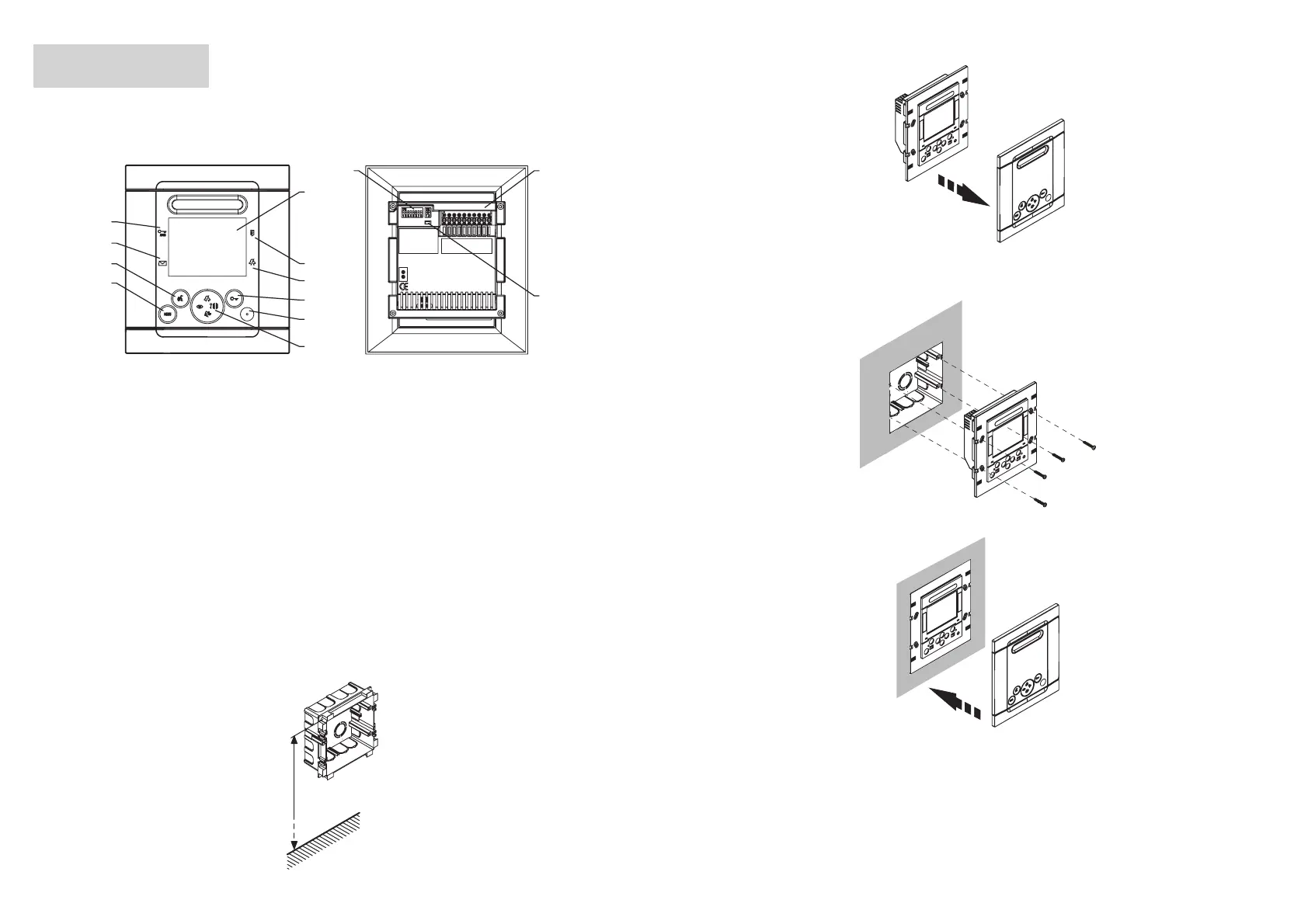

COMPONENTS DESCRIPTION AND CHARACTERISTICS
12
13
11
1
6
3
8
2
9
4
5
7
10
1 - Display
2 - Microphone
3 - Indication of “mute function” active (green led)
4 - Indication of automatic door lock release active (green led)
5 - Indication of present messages (green led)
6 - Indication of open door or absence active (red led)
7 - Button used to activate/deactivate audio
8 - Door lock release button
9 - Buttons for navigation, auto-on, call to switchboard, gate opening, ringer mute.
10 - Menu button
11 - Confi guration dip switch:
- 2 to defi ne the number of the apartment station inside the apartment
- 8 to defi ne the number of the apartment in the column
12 - Terminal pins for connection to the system
13 - Line termination
Folio Touch video door phone is provided with an embedded device for hard of hearing.
INSTALLATION
Fix the fl ush mounting box at the height shown in the following fi gure.
1,55÷1,60m
§
Remove the clip-on frame mounted on the support.
Perform connections and dip-switch settings.
After the programming procedure has been completed, fi x the video door phone to the fl ush mounting box
with the 4 provided screws.
Mount the clip-on front panel on the support.
Remove the protection fi lm.
TERMINAL PINS DESCRIPTION
LINE IN Connection to the system BUS
LINE OUT Connection to the next device for an in/out connection
S+ Call repeat
S- Call repeat
CP Floor call
ENGLISH
