15
Vent plug
Vent plug
opening
opening
2
Vent plug
or pressure
gauge
Suction
Pipe
1
Wire
from
motor
Wire from
power
supply
Green
ground
wire
5
5. Connect the green ground wire from the
power supply to the remaining green ground
screw in the pressure switch and re-attach
the pressure switch cover.

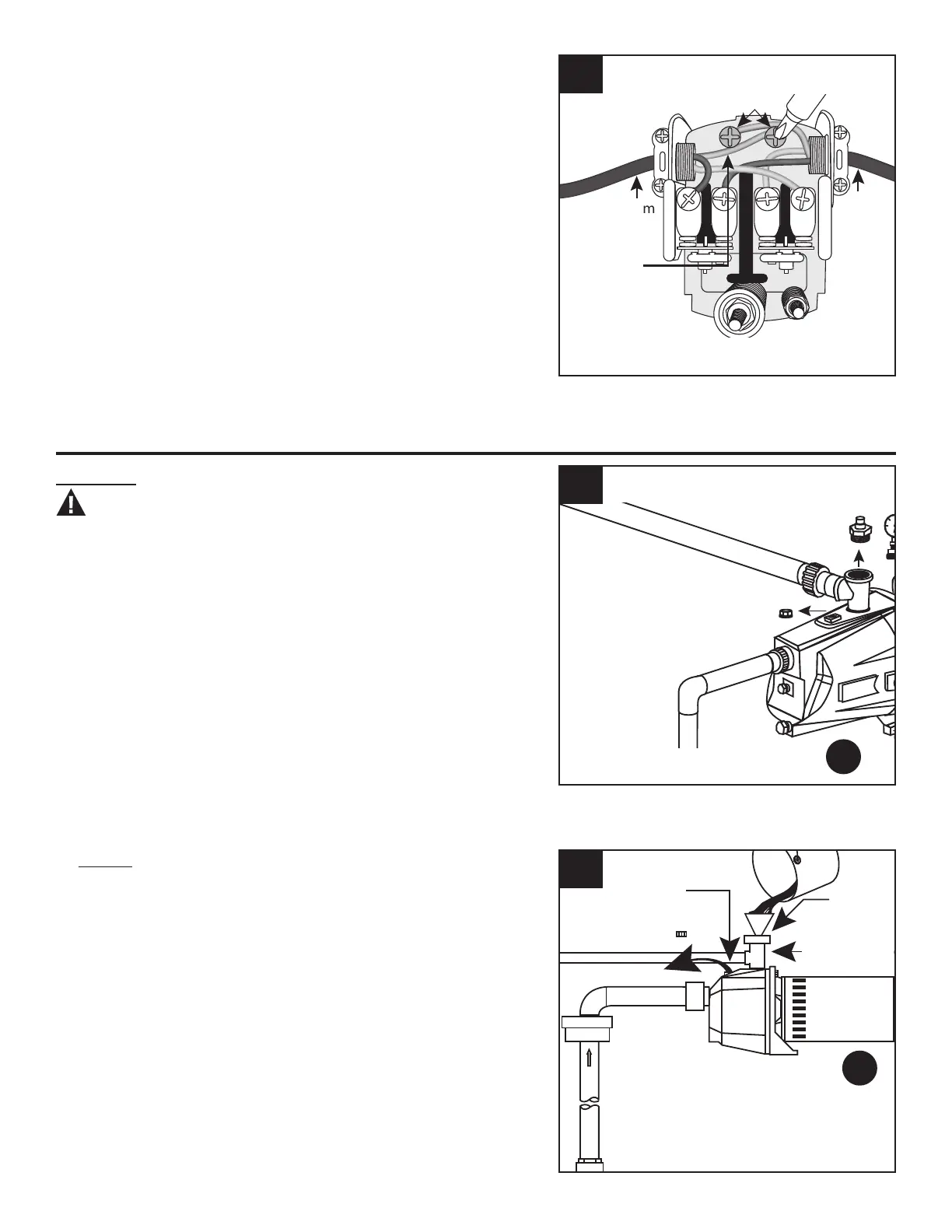

PUMP PRIMING AND STARTUP
PRIMING
CAUTION: All pumps must be primed
(lling the cavity with water) before they are
rst operated. This may take several gallons
of water, as the suction pipe will be lled in
addition to the cavity of pump (A).
1. Remove pipe plug or pressure gauge (not
included) at the top of the discharge tee and
the vent plug in front of the discharge tee.
A
2. Slowly ll the discharge tee with water until
water overows the vent plug opening.
Replace the vent plug loosely.
NOTE: It will take several minutes to fill pump
(A) and suction pipe completely.
