Discharge
to
Home
Water Level
1-1/4 in. Foot Valve
1 in.
Discharge Pipe
1-1/4 in.
Suction Pipe
Suction
Lift
25 ft.
Max.
1-1/4 in. Male Adapter
CAUTION
1
FOR USE WITH A PRESSURE TANK. DO NOT
USE FOR IRRIGATION APPLICATIONS!

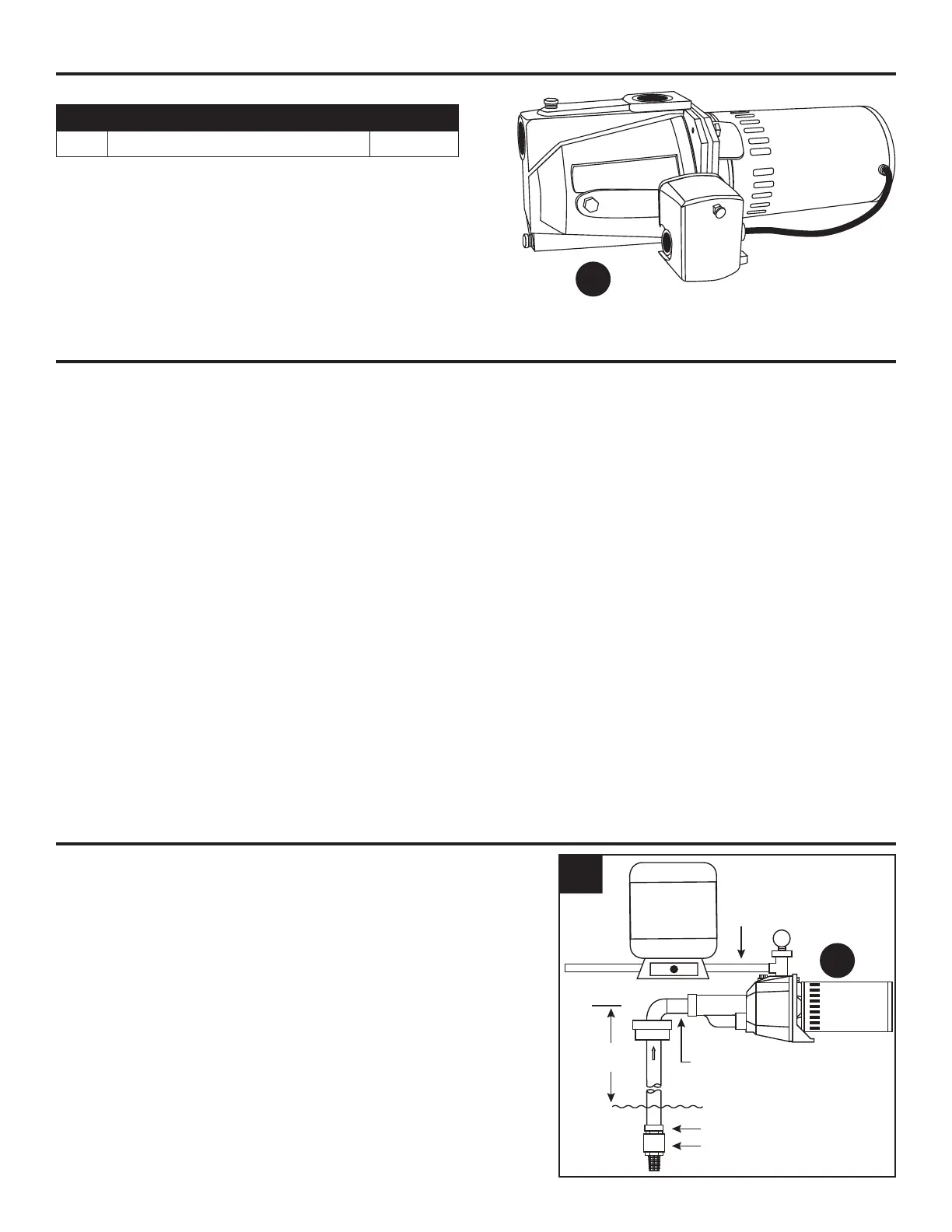

Typical Pump Setup
1. Shallow well jet pumps are designed for use
where the suction lift is 25 ft. or less. They
can be used with drilled or cased wells.
Part Description Quantity
A Pump 1
A
PREPARATION
Before beginning installation of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Compare parts to package contents list.
Estimated Installation Time: 2 hours.
Tools Required for New Installation (not included): pipe wrench, pliers, Phillips screwdriver, pipe clamp,
2-step PVC glue system (primer and sealer), thread tape, tire gauge or compressor
Parts Required for New Installation (not included): well seal, 1-1/4 in. to 1 in. male PVC adapter (2),
1-1/4 in. male PVC adapter, 1 in. male PVC adapter, 1-1/4 in. foot valve, 1-1/4 in. PVC pipe and
couplings, 1 in. PVC pipe and couplings, 1-1/4 in. PVC elbow, 1 in. PVC elbow, 1 in. discharge tee,
galvanized bushing, pressure gauge (optional) or pipe plug, 1-1/4 in. union (optional), 1 in. union
(optional), electrical wire, electrical wire strain relief, 1 in. x 1 in. x 1 in. tee, 3/4 in. x 3/4 in. slip coupling,
1 in. x 1 in. slip adapter, 1 in. x 3/4 in. slip adapter.
A
PACKAGE CONTENTS
GENERAL PUMP INFORMATION
To Next Page
