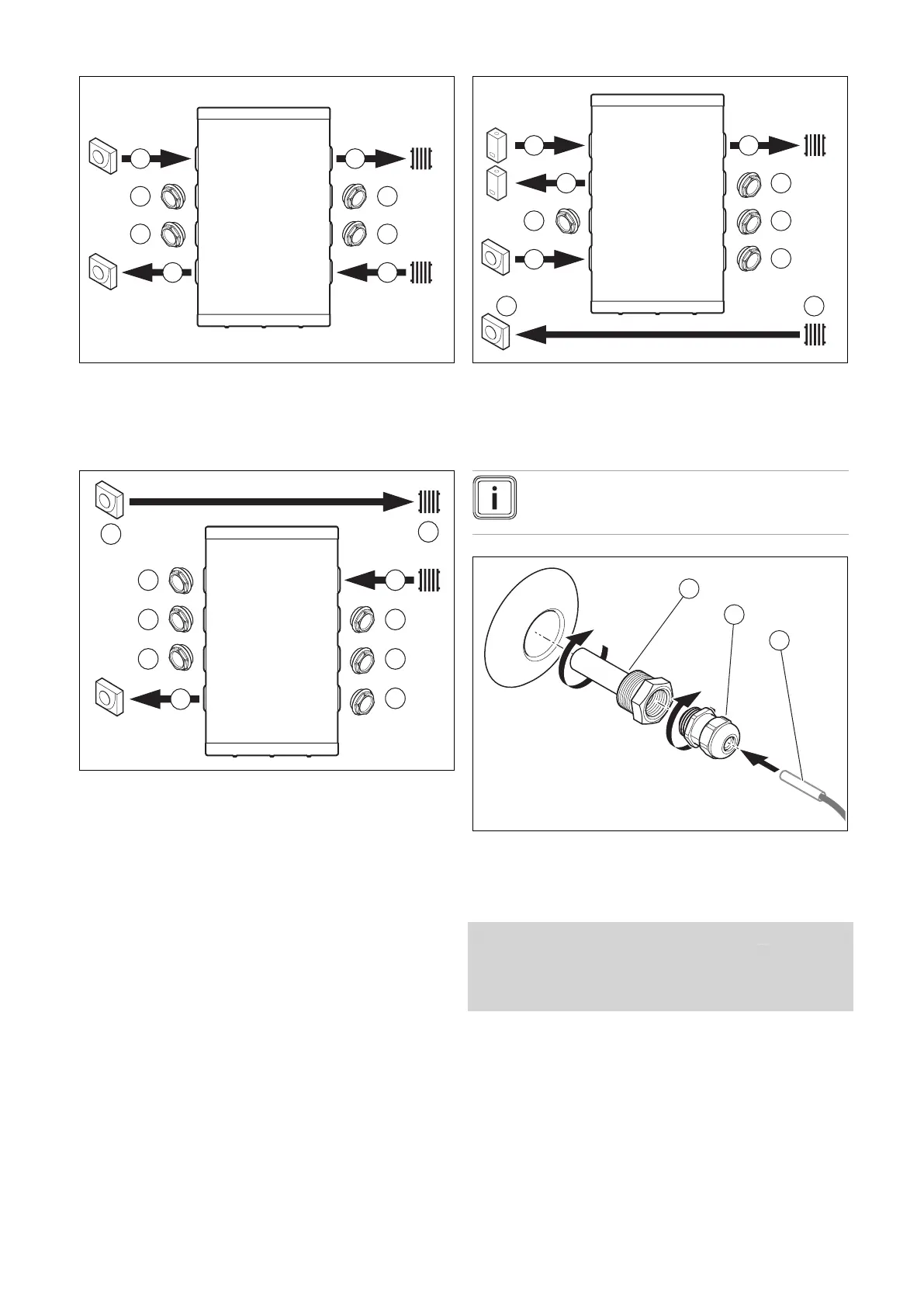

5.1.2.2 Case no. 2
1
1
2
3
3
3
3
2
1 Heat pump
2 Heating circuit
3 Plug
5.1.2.3 Case no. 3
1
3
3
3
3
3
1
2
3
2
1 Heat pump
2 Heating circuit
3 Plug
5.1.2.4 Case no. 4
4
1 3
2
2
1
3
4
4
4
1 Heat pump
2 Boiler
3 Heating circuit
4 Plug
5.2 Carrying out the wiring
Note
The temperature sensor is not enclosed but must
be ordered separately.
1
2
3
1. Screw the sensor pocket (1) into the cylinder.
2. Screw the stuffing box (2) into the sensor pocket (1).
3. Use heat-sink paste to insert the temperature sensor
(3) into the sensor pocket (1).
Validity: VPS R 200/1 B
▶ To guarantee the leak-tightness of the cylinder, always
install the two sensor pockets, even if only one tem-
perature sensor is used.
