4.6 Observing the requirements for the
product's installation site
▶ Ensure that the room in which the product is installed is
not heated to the maximum recommended room temper-
ature.
–
Recommended room temperature: 20 ℃
▶ Do not install the product above another unit that may
damage it (e.g. above a cooker that produces steam and
grease) or in a room with a high level of exposure to dust
or in a corrosive environment.
▶ Do not install the product below a unit from which liquids
may flow.
▶ Ensure that the room in which you want to set up the
product is sufficiently protected against frost.

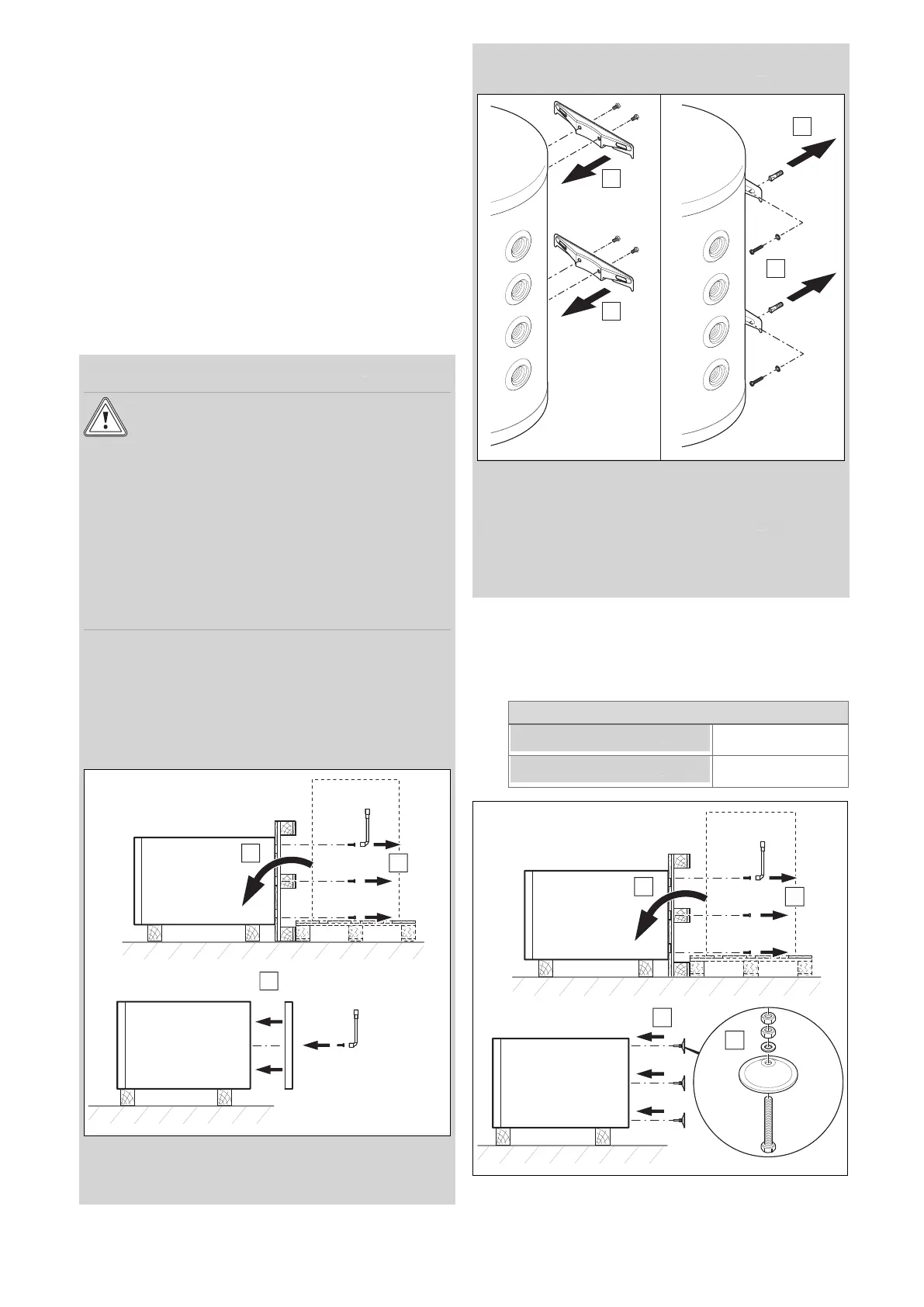

4.7 Wall-mounting the product
Validity: VPS R 100/1 M
Caution.
Risk of injury caused by the product tip-
ping.
If the product is not properly secured to the
wall, you cannot rule out that the product will
tip.
▶ Use the four fixing points to secure the
product to the wall.
▶ Check how tight the nuts are. After tight-
ening them, the threaded pins must pro-
trude out of the nuts.
1. Ensure that the wall offers sufficient load-bearing
capacity to bear the weight of the product when it has
been filled.
– Weight when filled with water: 135 kg
2. Check whether the supplied fixing accessories are
suitable for the wall type.
1
2
3
3. Remove the fixing screws from the cylinder below the
pallet.
4. Secure the lower cover below the cylinder.
Condition: The load-bearing capacity of the wall is sufficient; the fixing
material is permitted for the wall
A
B
C
D
▶ Attach the wall-fixing strips to the cylinder.
▶ Secure the cylinder to the wall.
Condition: The load-bearing capacity of the wall is not sufficient
▶ Ensure that wall-mounting apparatus on-site has a suf-
ficient load-bearing capacity. Use individual stands or
primary walling, for example.
4.8 Installing the product
1. When selecting the installation site, note the weight of
the filled cylinder and the load-bearing capacity of the
floor.
Weight when filled with water
Validity: VPS R 100/1 M
135 kg
Validity: VPS R 200/1 B
246 kg
1
2
3
4
2. Remove the cylinder's fixing screw from the bottom of
the pallet.
