29VRT 360 Installation Manual
Installation 9
4
2
3
1
5
3
4

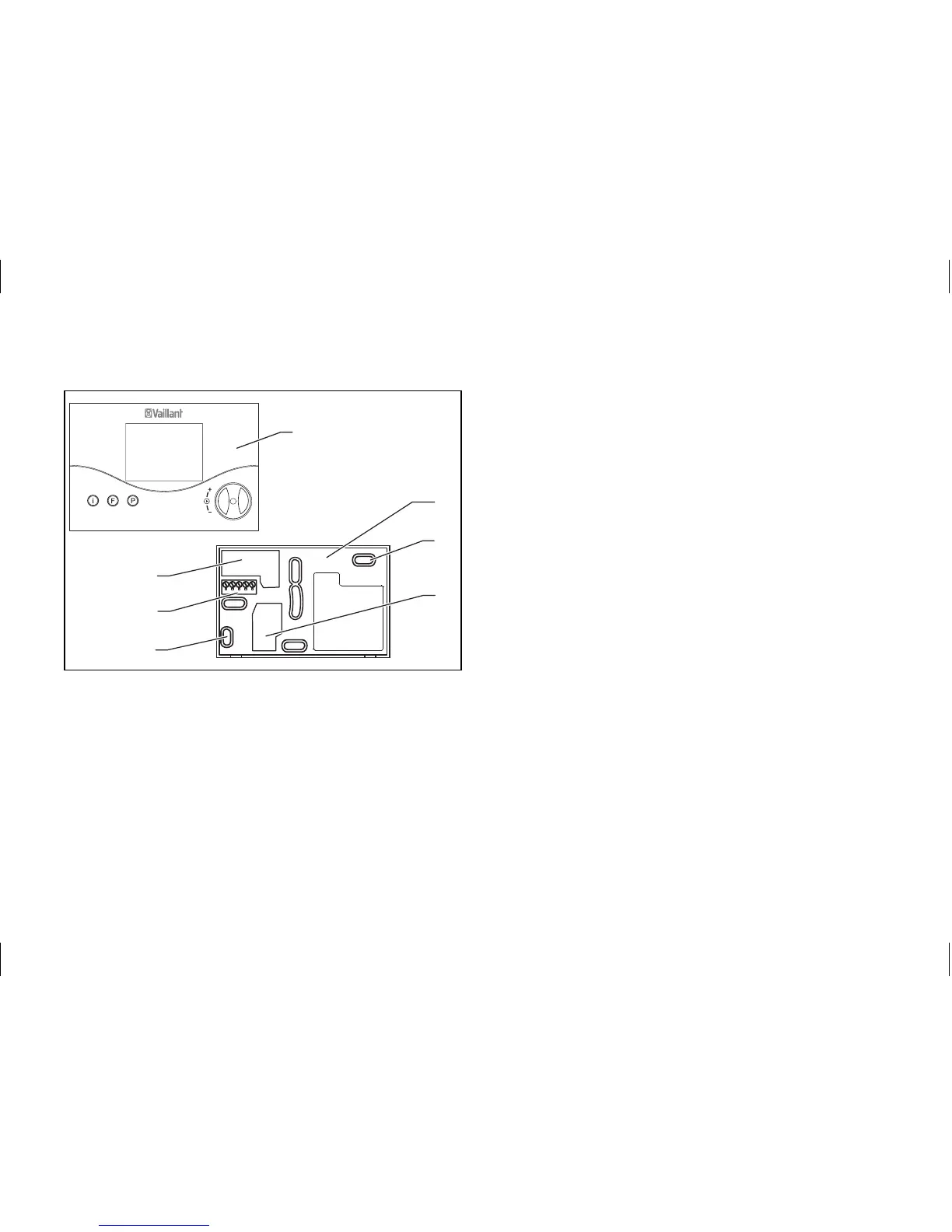

Fig. 9.1 Mounting the room thermostat
• Pull the room thermostat (1) out of the
mounting box (5).
• Drill two holes (3) of 6 mm diameter
(as shown in fig. 9.1) and put in the
supplied wall plugs.
• Guide the connection cable through
the duct (4).
• Fix the mounting box to the wall with
the two screws provided.
• Connect the lead as described in sec-
tion 10.
• Place the room thermostat (1) on the
mounting box (5) so that the pins on
the back of the upper section fit into
the recesses (2).
• Push the room thermostat onto the
mounting box until it catches.
