OWNER’S GUIDE
Page 9

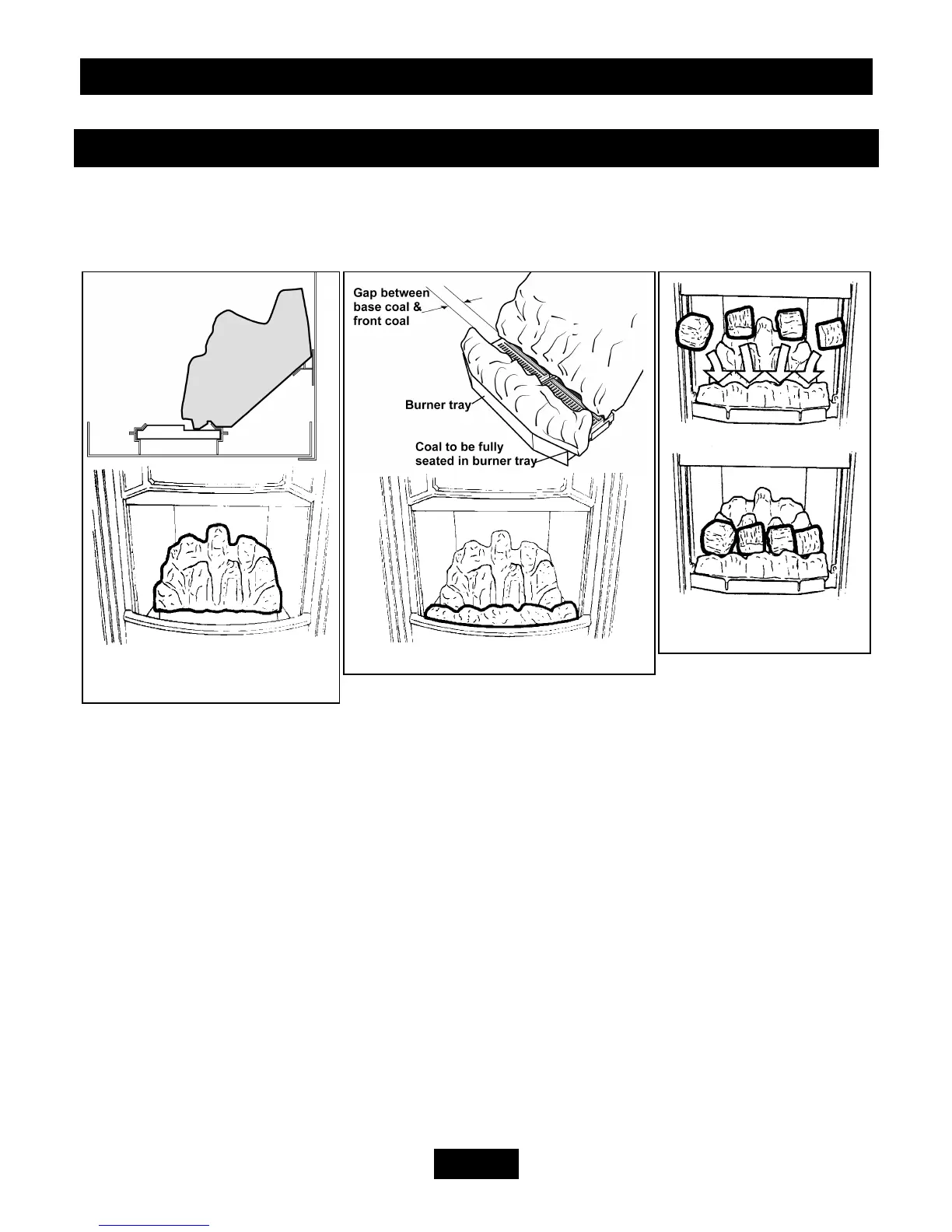

Fig. 4 Ceramic Base
Installation
Fig. 5 Front Coal Location
Fig. 6 Front Row of
Coals
FUEL BED REFITTING
If the fuel bed components are dislodged or removed, they must be refitted as follows:
Only the fuel bed parts supplied with this appliance or authorised replacements
must be used. Never add extra coals above the number stated in these instructions.
1. Place the ceramic base coal in the burner compartment. The bottom rear face of the
coal should rest on the angled ledge at the back of the burner compartment. The bottom
front recessed edge of the coal base should locate against the step in the burner plaques.
See figure 4.
(Installer - Note that the small round holes in the burner plaques which will be covered
by the base coal are not gas burner ports. They are simply a consequence of the plaque
manufacturing process).
2. Place the ceramic front coal in position in front of the base coal. Make sure that the
side legs of the front coal are fully seated into the burner tray. There will be a gap
between the rear of the front coal and the front of the base coal. See figure 5.
3. Install the 13 loose coals as follows. There are 2 “finger” coals, 7 medium size coals
and 4 large coals. Place all the loose coals so that they are firmly seated in the valleys in
the coal base and front coal.
4. Place the 4 large coals in the valleys of the front coal. See figure 6.
