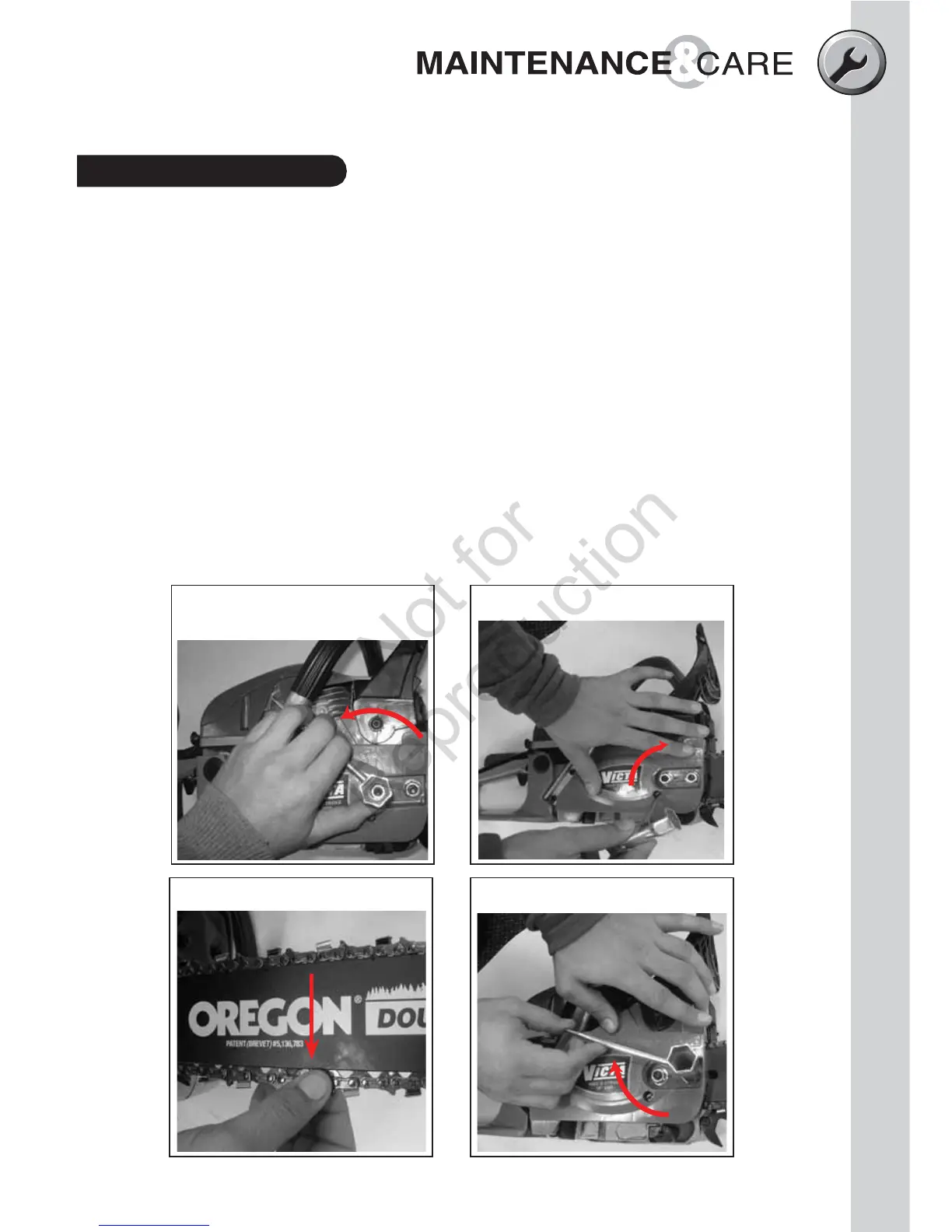

Adjusting Chain Tension
Adjust the Chain Tension
1. Loosen both tensioner housing nuts using tool provided.
- Maximum 1/4 turn ensuring housing is still firm against bar & chain.
2. Adjust tension of the bar & chain.
- Turn clockwise to increase tension.
3. Check the tension of the chain & bar.
- Firmly pull chain away from bar (3 - 4mm using 1Kg of force) half way along bar.
- Drive link should not lift out of bar guide rails.
- Drive link should be approximately 1/2 exposed from bar guide rail to establish correct tension.
4. Tighten both tensioner housing nuts using tool provided.
- Nuts to be firmly tightened to ensure they do not rattle loose during operation.
1. Loosen nuts - max 1/4 turn
anti-clockwise
2. Adjust tension - clockwise
4. Tighten nuts - clockwise3. Check chain tension
