Victron energy MultiPlus 3000 - Three-Phase Connection

EN Appendix
AC OUT 1 N
AC OUT 1 L3
AC OUT 1 L2
AC OUT 1 L1
To load
PE OUT
To load
PE IN
SLAVE Unit 3
BAT-
BAT+
BAT-
BAT+
BAT-
BAT
Panel
MASTER Unit 1
SLAVE Unit 2
AC OUT 2 N
AC OUT 2 L3
AC OUT 2 L2
AC OUT 2 L1
To load

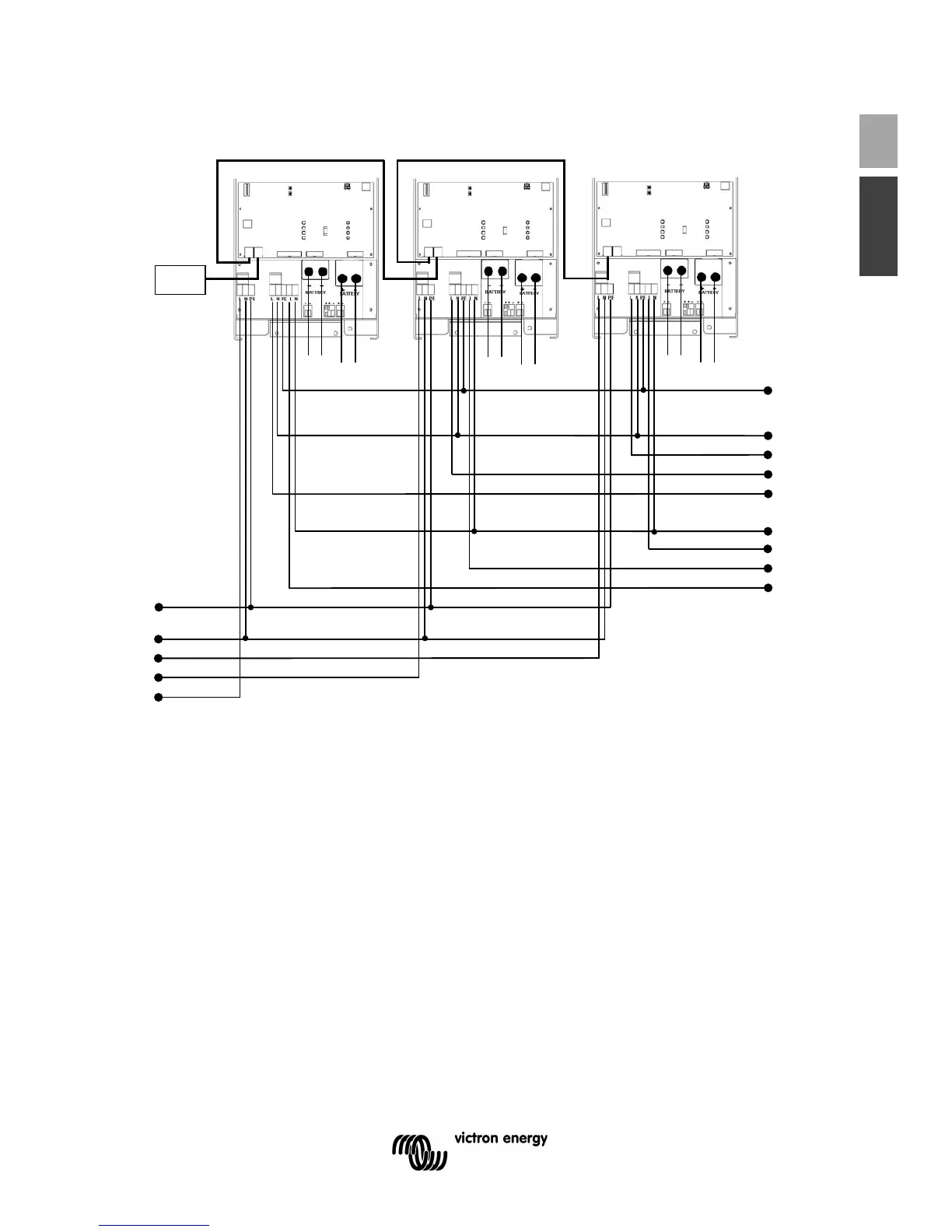

APPENDIX D: Three-phase connection
AC IN N
AC IN L3
AC IN L2
AC IN L1
