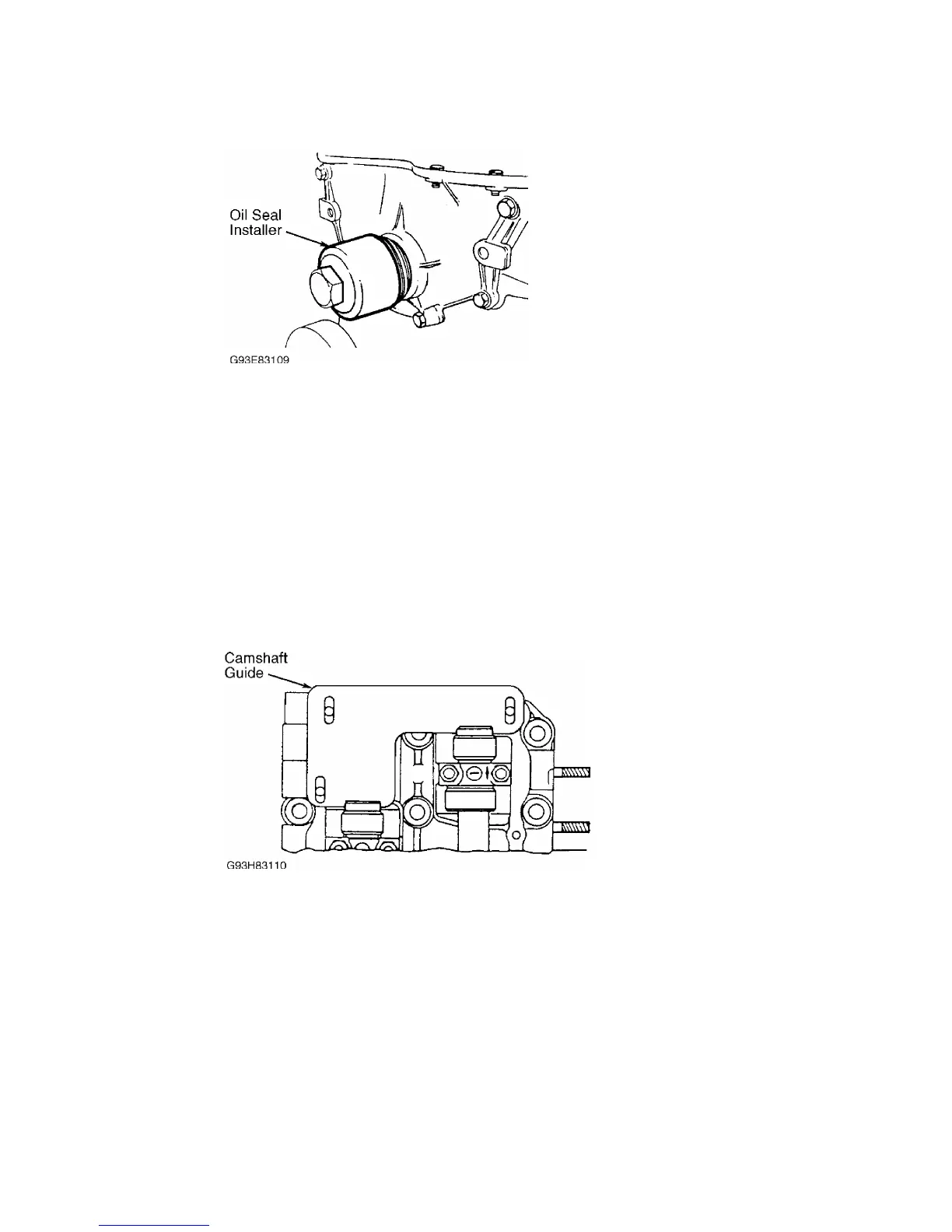

Fig. 8: Installing Crankshaft Oil Seal
Courtesy of Volkswagen United States, Inc.
TIMING CHAIN
Removal
1) Removal and installation procedure is not available from
manufacturer. Ensure crankshaft is aligned at TDC. Remove transaxle
and bellhousing assembly. Remove torque converter or clutch assembly
(as applicable). Remove valve cover. Remove camshaft sprocket cover
and intermediate shaft cover. Match mark all components to ensure
reassembly in original position.
2) Mark timing chains for direction of rotation. Align and
install Camshaft Guide (3268) onto cylinder head bolts. See Fig. 9.
Remove upper and lower chain tensioners. If necessary, remove
intermediate sprocket and camshaft sprocket bolts. Remove the timing
chain. See Fig. 10.
Fig. 9: Installing Camshaft Guide Onto Cylinder Head
Courtesy of Volkswagen United States, Inc.
