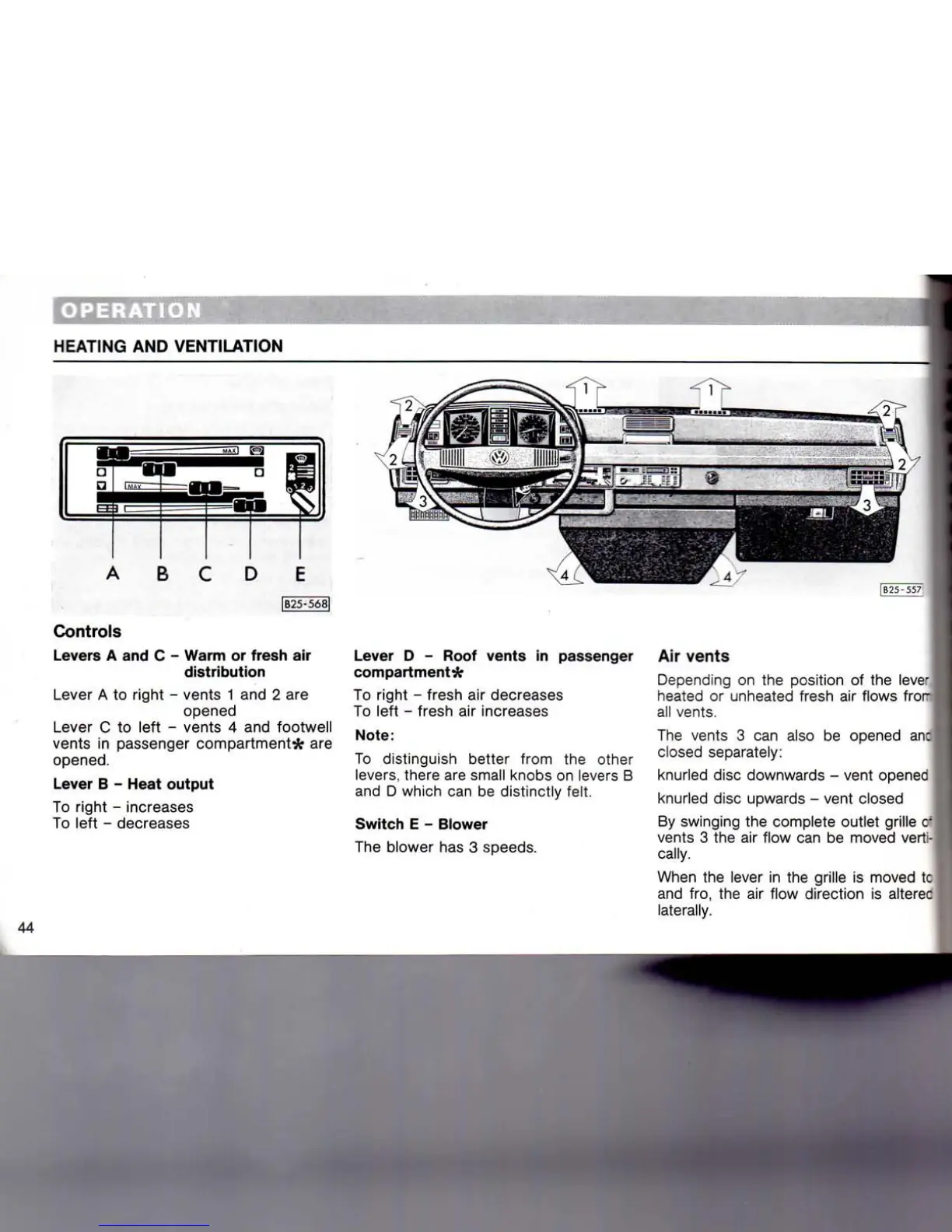

OPERATION
HEATING AND
VENTILATION
B25-568
Controls
Levers A and C
Warm
or
fresh
air
distribution
Lever
A to
right
Lever
C to
left
vents 1 and 2 are
opened
vents 4 and footwell
vents in passenger compartment* are
opened.
Lever B -
Heat
output
To
right
- increases
To
left
- decreases
Lever D - Roof
vents
in passenger Air
vents
compartment*
To
right
- fresh air decreases
To
left
- fresh air increases
Depending
on the position of the lever
heated or unheated fresh air flows fror
all
vents.
Note:
To
distinguish better from the other
levers,
there are small knobs on levers B
and
D which can be distinctly
felt.
Switch
E -
Blower
The
blower has 3 speeds.
The
vents 3 can also be opened an:
closed
separately:
knurled disc downwards - vent opened
knurled disc upwards - vent closed
By
swinging the complete outlet grille q
vents 3 the air flow can be moved vert-
cally.
When
the lever in the grille is moved tc
and
fro, the air flow direction is alterec
laterally.
