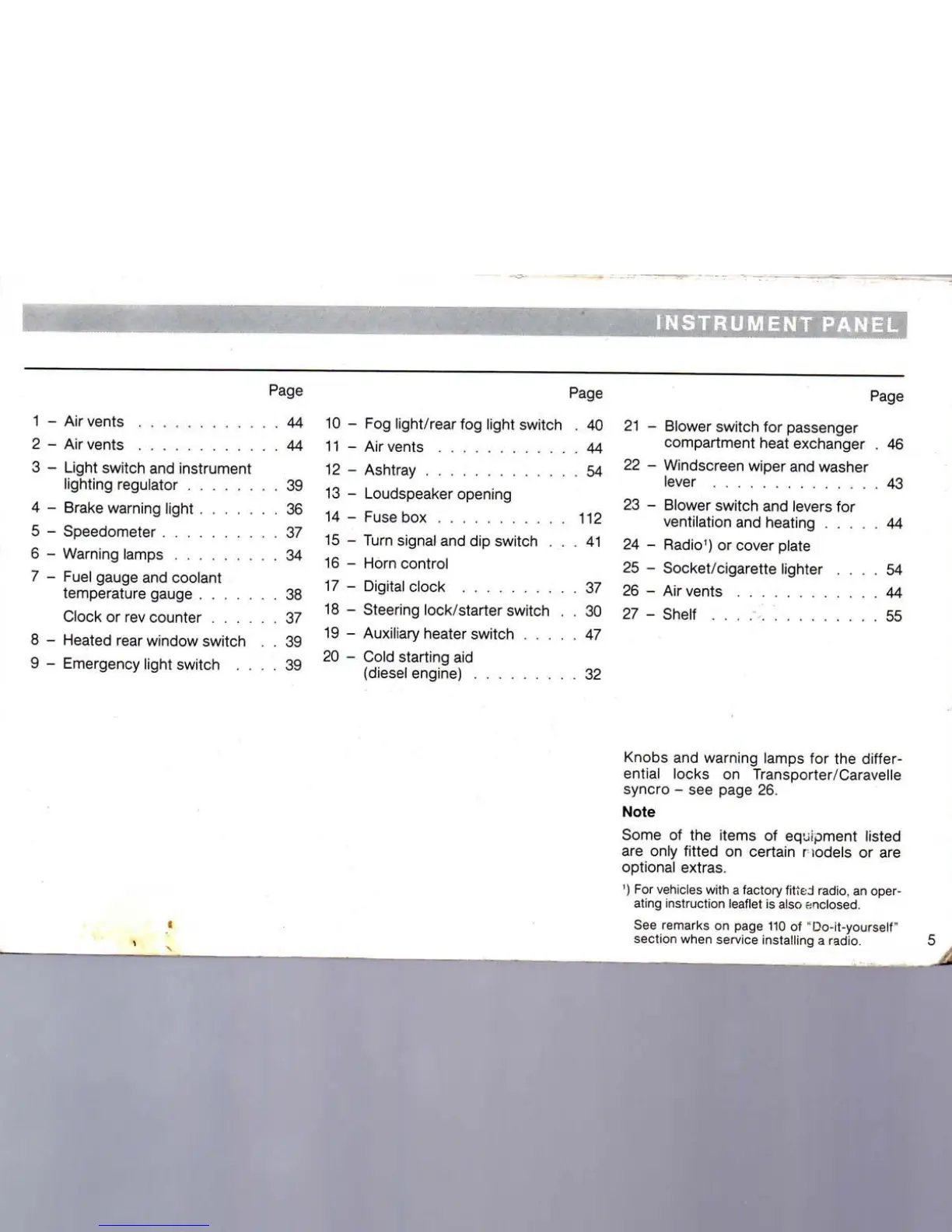

INSTRUMENT PANEL
Page
1 - Air vents 44
2 - Air vents 44
3 - Light switch and instrument
lighting regulator 39
4 - Brake warning light 36
5 - Speedometer 37
6 - Warning lamps 34
7 - Fuel gauge and coolant
temperature gauge 38
Clock or rev counter 37
8 - Heated rear window switch . . 39
9 - Emergency light switch .... 39
Page
10 - Fog light/rear fog light switch . 40
11 - Air vents 44
12 - Ashtray 54
13 - Loudspeaker opening
14 - Fuse box 112
15 - Turn signal and dip switch ... 41
16 - Horn control
17 - Digital clock 37
18 - Steering lock/starter switch . . 30
19 - Auxiliary heater switch 47
20 - Cold starting aid
(diesel engine) 32
Page
21 - Blower switch for passenger
compartment heat exchanger . 46
22 - Windscreen wiper and washer
lever 43
23 - Blower switch and levers for
ventilation and heating 44
24 - Radio') or cover plate
25 - Socket/cigarette lighter .... 54
26 - Air vents 44
27 - Shelf 55
Knobs and warning lamps for the differ-
ential locks on Transporter/Caravelle
syncro - see page 26.
Note
Some of the items of equipment listed
are only fitted on certain models or are
optional extras.
') For vehicles with a factory fitted radio, an oper-
ating instruction leaflet is also enclosed.
See remarks on page 110 of "Do-it-yourself"
section when service installing a radio.
