Volkswagen VAS 581 009 User Manual

Placing into service
VAS 581 009 unpacking instructions, placing into service, quick start guide
V2.00 05/18 All rights reserved.
19
4.7 Connecting the refrigerating agent cylinder CO2 (R744)
NOTICE
The VAS 581 009 is suitable for standard CO
2
(R744) refrigerating agent cylinders with a
built-in riser tube. The following cylinder sizes can be used: 5 kg, 6 kg, 10 kg or 20 kg.
Required purity equal or better than carbon dioxide 3.0 (99.9% purity).
Refrigerating cylinders can vary in size and design depending on the country. In these
instructions the two most common types are described.

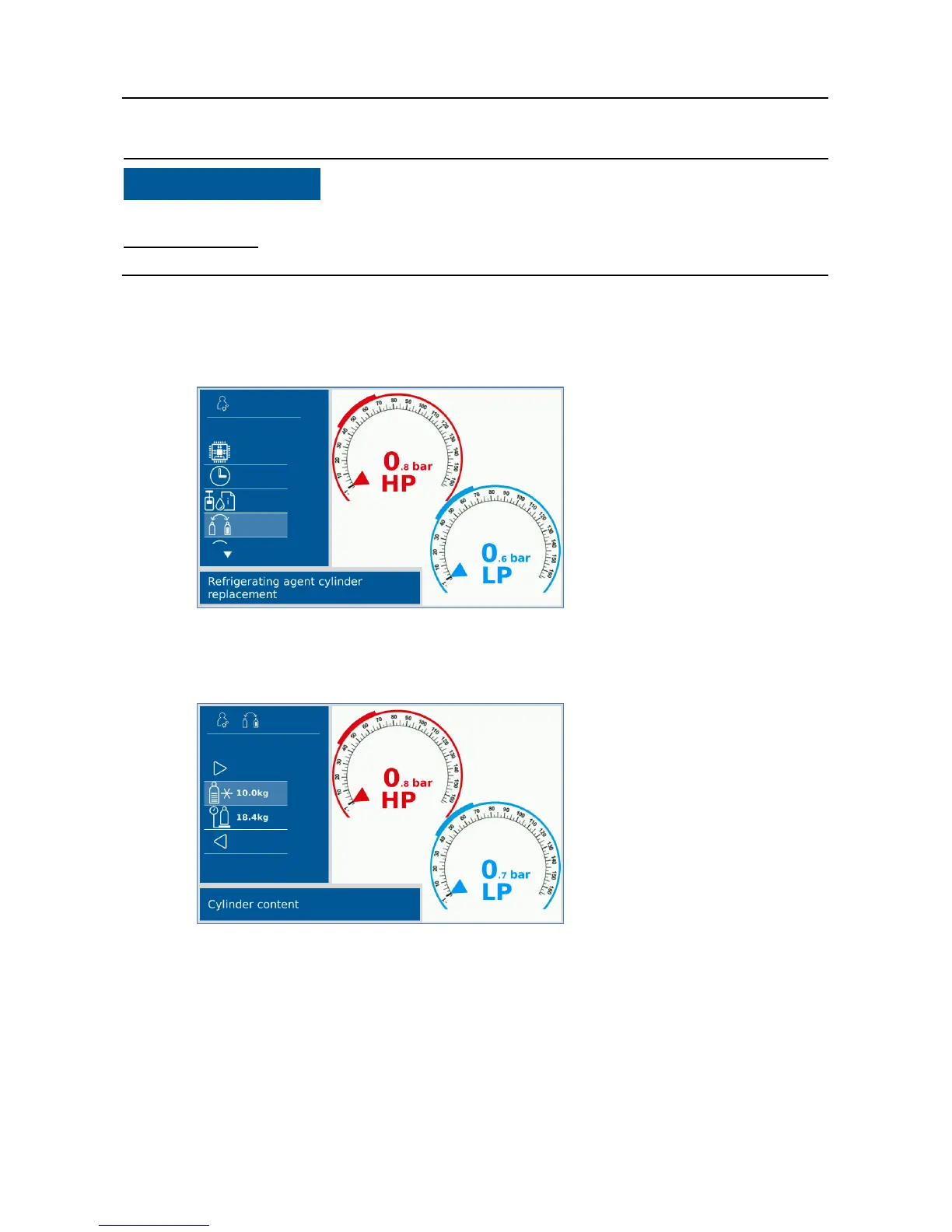

1. Select Replace refrigerating agent cylinder in the maintenance menu.
Fig. 4-16 Replacing refrigerating agent cylinder
2. Now select Cylinder content.
Fig. 4-17 Replacing refrigerating agent cylinder
