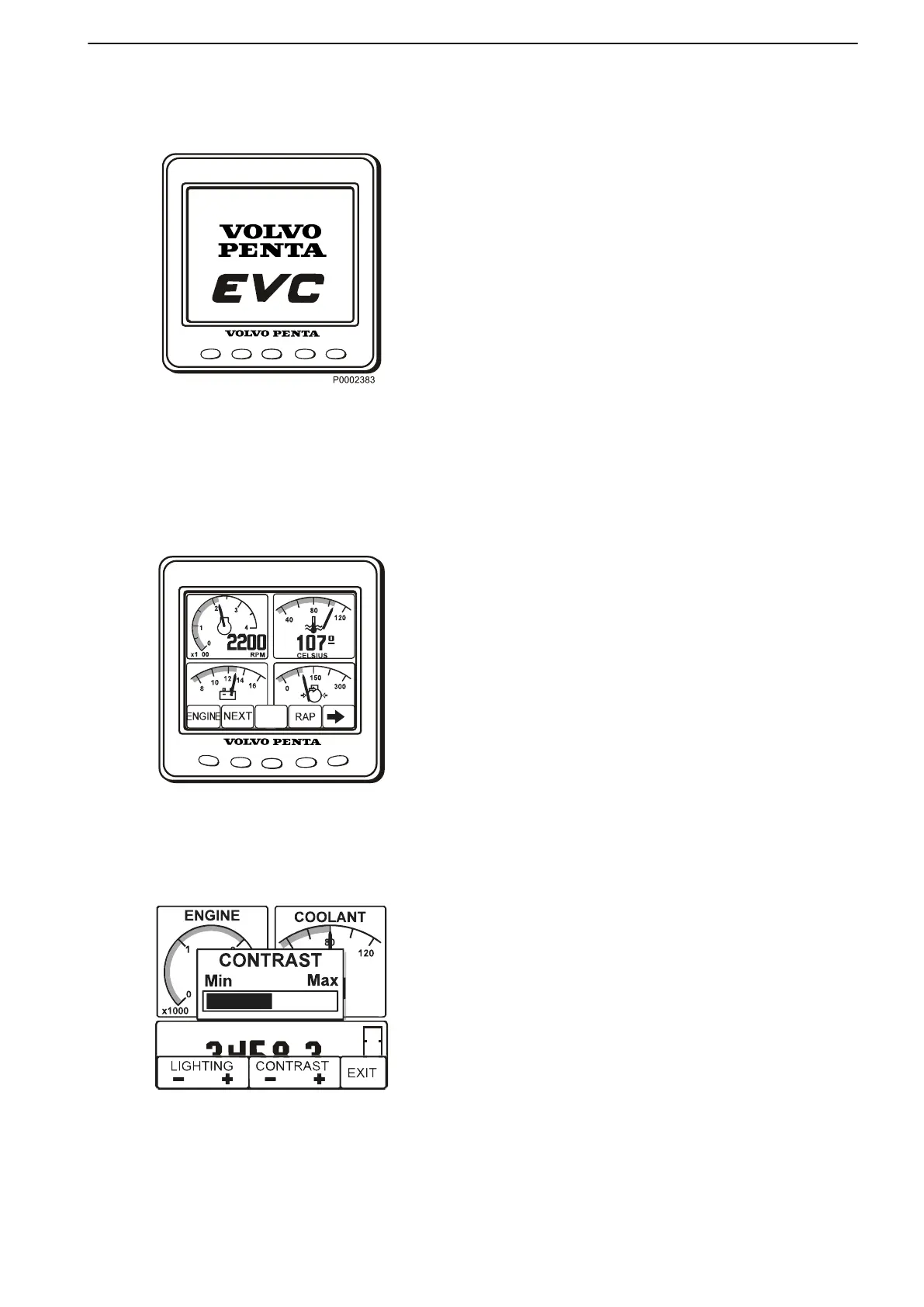

EVC System Display
It is possible to present several windows with different
operational information in the EVC system display. The
various screens are selected using the instrument but-
tons.
Before the display is put to use certain settings must
be entered in the configuration menu; refer to Config-
uration menu.
It is also possible to bring up a menu identical to that
shown in the tachometer display by navigating to Sys-
tem information in the Configuration menu, or by
depressing button 2; refer to Multi, button 2.
A self-test is performed at start; the display will emit a
constant audible signal if a fault is detected. The dis-
play will continue to function, but may behave in unex-
pected ways.
Only installed functions are shown in the display.
Screens
Depress any of the buttons 1 to 4 to bring up the func-
tion menu for the buttons on the lower part of the dis-
play.
Buttons 1, 2 and 4 provide different screens.
Button 1 – Engine
Button 2 – Multi
Button 4 – Graph
Use button 5 to adjust contrast and to access the con-
figuration menu for display settings; refer to Configu-
ration menu.
Exit the menu by waiting a few seconds or by depress-
ing button 5 (EXIT).
Contrast
The display has five contrast settings. Depress button
5 (far right) and change the contrast by depressing +
(button 4) or – (button 3).
Store the setting by depressing EXIT (button 5).
0
ENGINE HOURS
HOURS
P0003010
Instruments and Controls
47702088 05-2011 13
