Instruments and Controls
This chapter describes the instruments, panels and controls Volvo Penta sells for your engine.
If you would like to complement your instrumentation, or if your boat is equipped with instruments not described
here, we ask that you contact your Volvo Penta dealer.
For information about screens from 8” and above, please refer to the separate manual for Volvo Penta Glass
Cockpit.
Ignition Lock

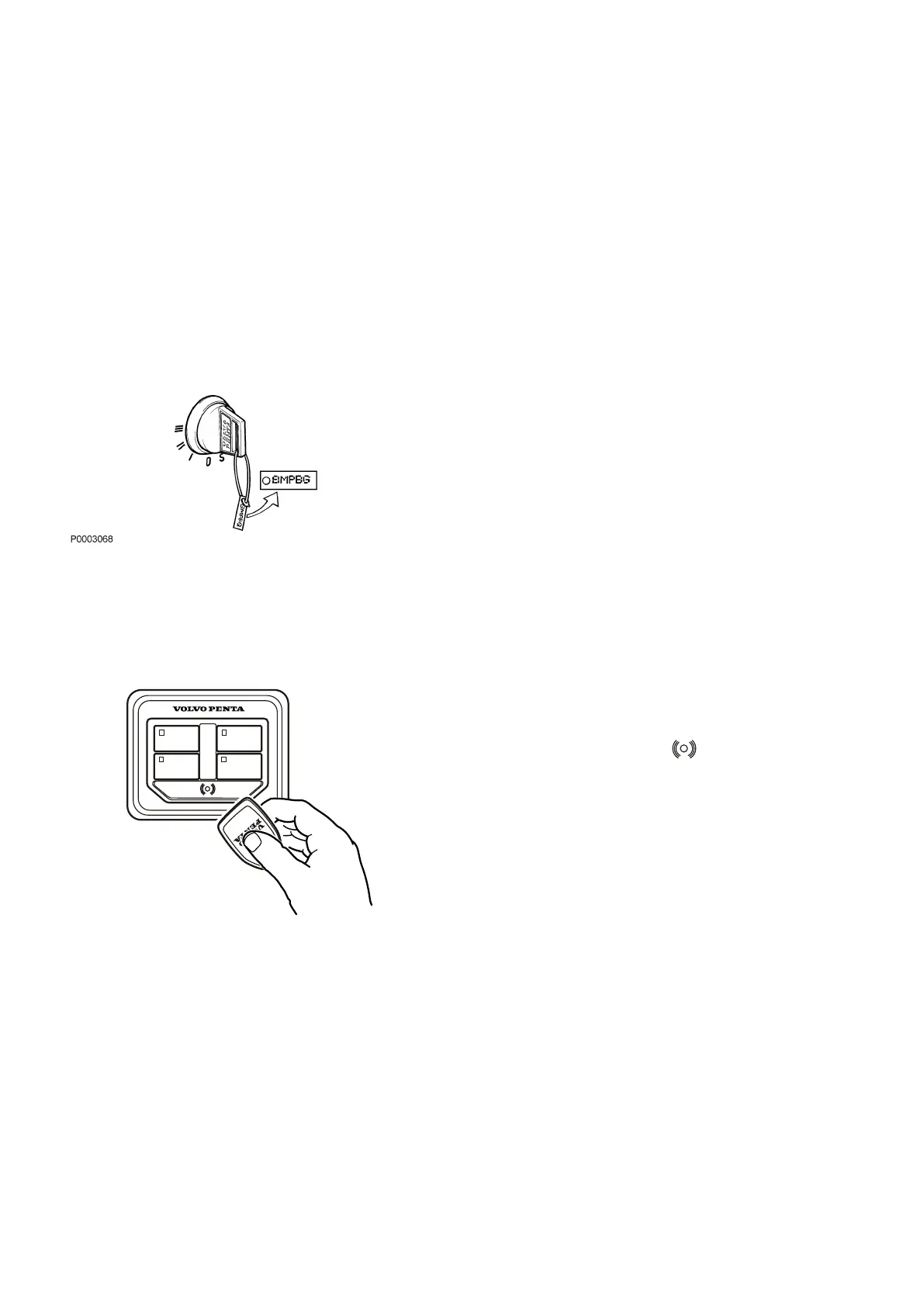

The start keys are supplied with a plate bearing the
start code to be used when ordering spare keys. Keep
the code beyond the reach of unauthorized people.
S = The stop position.
0 = The key can be inserted or removed.
I = Operating position. System power is connected.
II = Not used.
III = Start position. Starter motor is engaged.
There is always a helm station with an ignition lock.
The ignition must be switched on here in order for other
helm stations to be used.
Read the starting instructions in the Starting page 33
chapter to make sure you use the correct start proce-
dure.
e-Key panel
The Volvo Penta e-Key consists of a panel and a key
fob.
Hold the key fob in front of the symbol on the panel
to unlock the EVC system. A sound confirms the sys-
tem is unlocked.
When the electrical system is locked a red light flashes
under the symbol. The lamp goes out to indicate the
system is unlocked.
Key Management
Two key fobs comes at delivery. It is possible to
expand add additional keys, the system allows up to
four keys. With a key already registered to the system
other keys can be added or removed, see Key Man-
agement.
Safety Lanyard
A safety lanyard (optional extra) can be connected to
the panel. Should the safety lanyard be removed the
engines will stop, the system alerts and a warning
message is displayed in the Information Panel.
IGNITION IGNITION
START/STOP START/STOP
P0016313
10 47706669 05-2015 © AB VOLVO PENTA
