EVC System Display (optional extra )
Introduction
Volvo Penta EVC system display (EVC system dis-
play) is an instrument which displays operating infor-
mation about the engine and allows you to communi-
cate with the engine’s electrical system.
Operation information is shown on an LCD display.
The driver can select the display mode operative on
the display with the aid of the five buttons on the front
of the instrument.
The four buttons at the furthest left are used to display
operating information in different ways. The button at
the furthest right is used to adjust the display contrast
and to access the so-called configuration menu. Vari-
ous settings etc. can be done in it. You can also use
the configuration menu to reach the display mode
SYSTEM INFORMATION (which can also be reached
via button 2, please refer to the schedule below). This
display mode functions in the same way as the display
in the tachometer (EVC System Tachometer).
Before the display is used, it may be necessary to
modify the way that the display shows operating infor-
mation, to comply with user requirements. You can see
the settings that can be changed in the section about
the configuration menu.
1
2
3
4
5

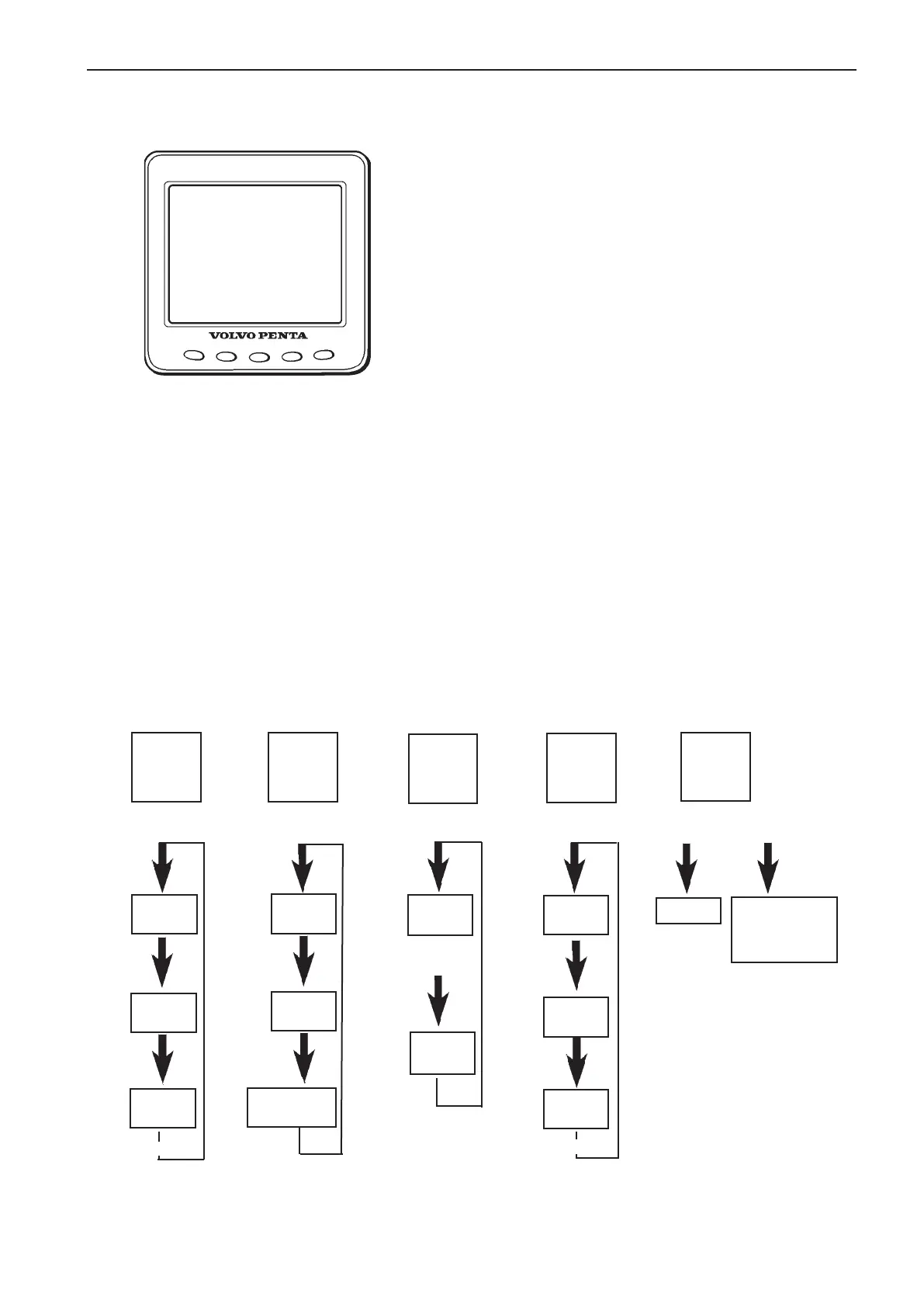

Structure of the display functions
Button 1
Engine
(10 different
fuel informa-
tion)
Button 2
Multi
(display in
several win-
dows)
Button 3
Trip
Button 4
Graph
(display as
graphs)
Fuel
consump-
tion/time
Fuel
consumption
Trip
fuel
consumption
Numerical
display
Instrument
display
Zeroing
of trip infor-
mation
Button 1
depressed
Button 2
depressed
Button 4
depressed
Graph
display 1
Graph
display 2
Graph
display 3
Button 5
Contrast/Con-
figuration
Button 5
depressed for > 3 sec
Button 5
depressed
Contrast
Button 3
depressed
Keep button
3 depressed
for 3 sec.
Trip info.
Configuration menu
- System information
- Settings
- System
System information
More fuel info. available
More displays available
