Volvo Penta IPS User Manual

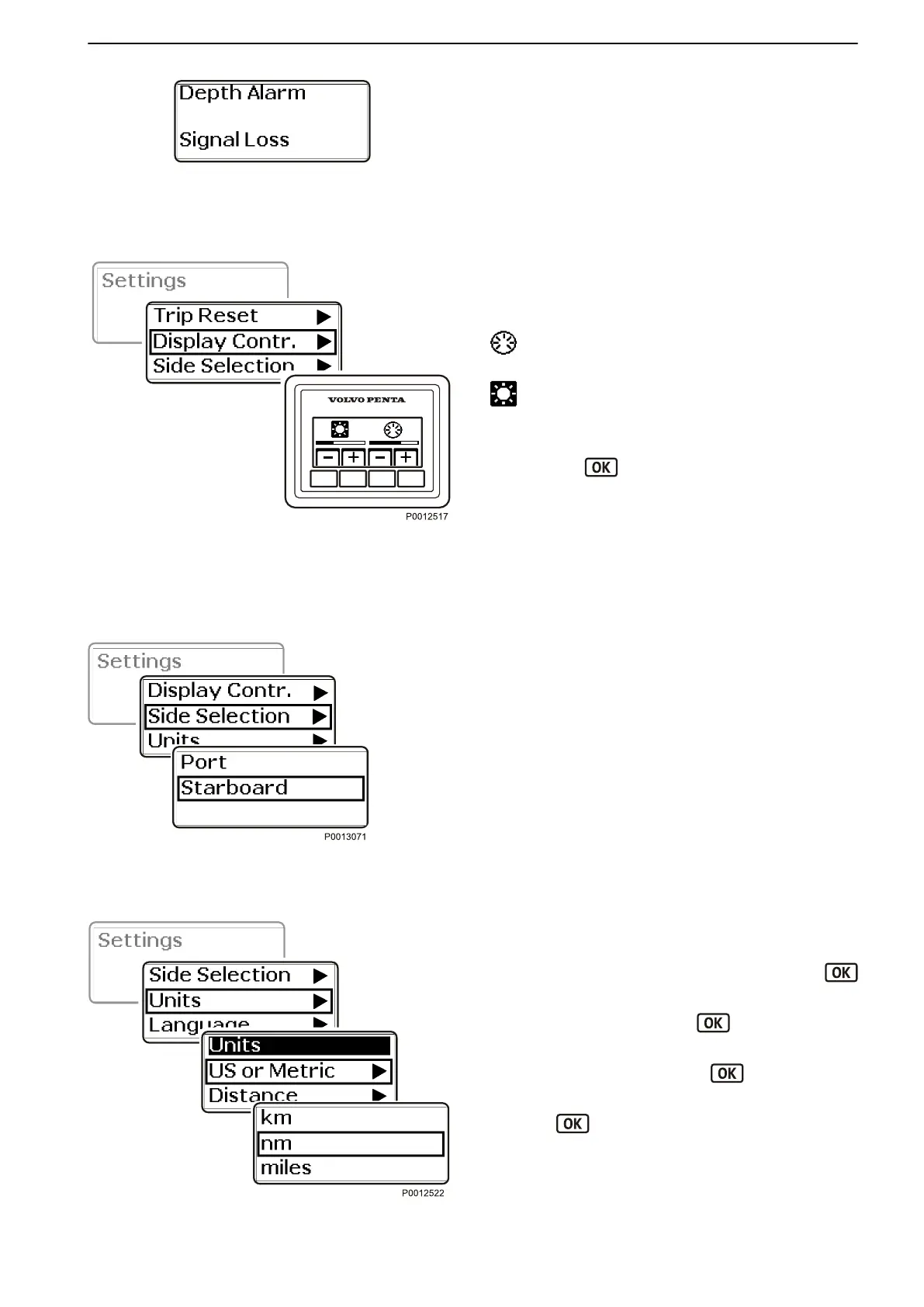

Signal fault
If the signal from the depth alarm is lost, e.g. if the
sensor is not working, a message is displayed stating
that the signal has been lost.
Display Contrast
Adjust the screen contrast.
The adjustment will affect all screens.
Backlighting
Contrast
1 Navigate to Display Contrast in the settings menu
and press to open the submenu.
2 Use + and – to increase or reduce the contrast or
backlighting.
The screen will return automatically to the settings
menu.
Side Selection
Set
from which engine information is to be show in dis-
play.
Units
Setting the units information will be shown in.
1
Navigate to Units in the settings menu. Press
to open the settings menu.
2
Open US or Metric, press and select Ameri-
can or metric units.
3
Navigate to Distance, press
and then select
kilometers, nautical miles or miles.
4
Press to confirm the selection.
P0005855
Depth Alarm / Signal Loss
Display Contrast
Side Selection
Units
Calibration and Settings
47705796 05-2014 © AB VOLVO PENTA 123

Volvo Penta IPS Specifications

General

Fuel Type	Diesel
Fuel System	Common rail direct injection
Type	Inboard
Drive	IPS (Inboard Performance System)
Steering	Electronic steering
Shifting	Electronic
Cylinders	6 or 8
Cooling System	Freshwater cooling
Emissions Compliance	IMO Tier II
