Technical data: TD/TAD420VE, TAD620VE, TAD650VE, TAD660VE
21
Group 20
Connecting rods

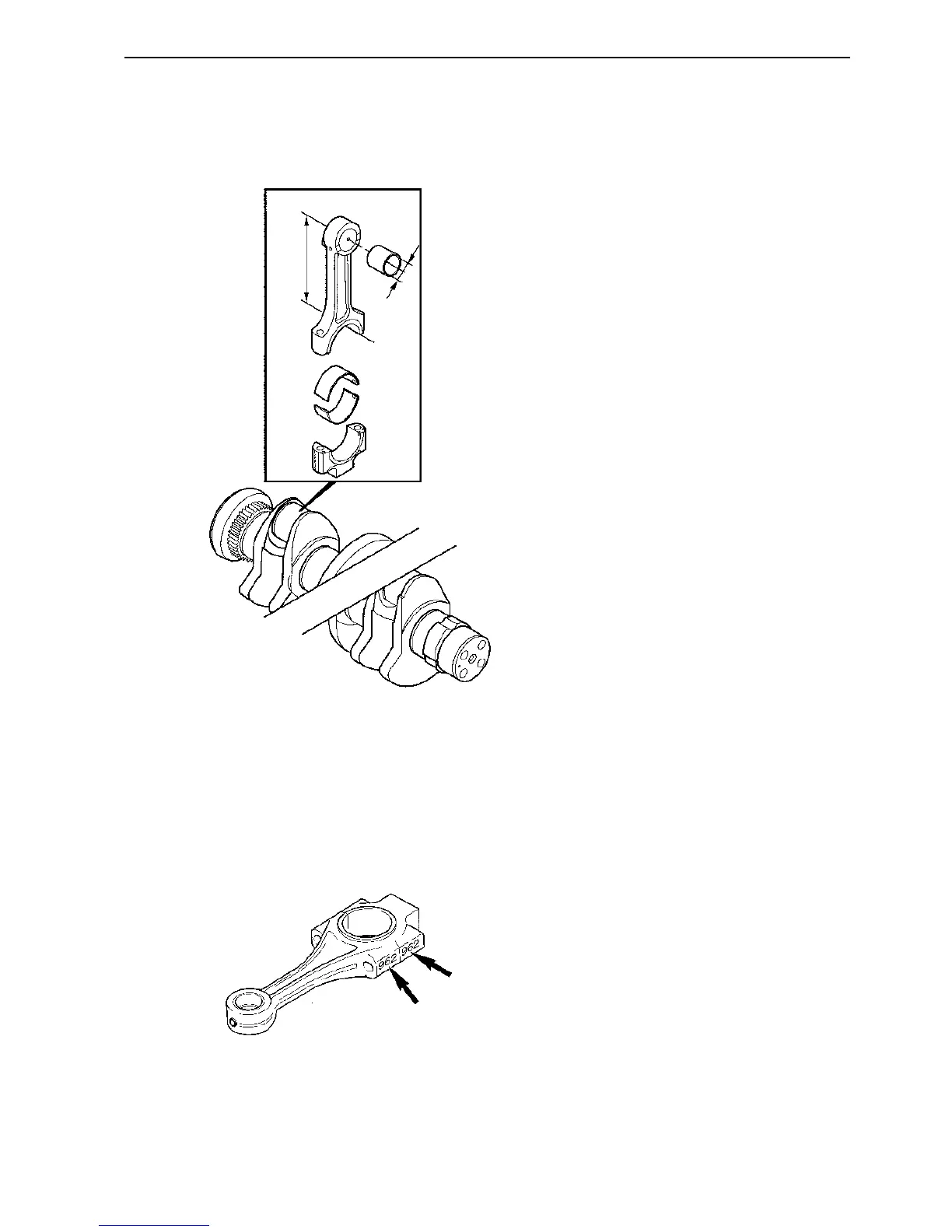

Length (L): Center – Center .................................... 192
±0.02
mm (7.559"
-0.0008”
)
Connecting rod bushing bore (M): ........................... 38.025
+0.01
mm (1.497"
+0.0004”
)
Wear limit ............................................................ 0.08 mm (0.0031")
Axial clearance, connecting rod – crankshaft
1)
....... 0.2-0.3 mm (0.00787"-0.0118")
Connecting rod bearing: radial clearance
1)
.............. 0.03-0.09 mm (0.00118"-0.00354")
Parallelism: Tolerans
Over a length of 100 mm..................................... 0.05 mm (0.002")
Squareness: Tolerans
Over a length of 100 mm .................................... 0.05 mm (0.002")
1)
Important! The dimensions apply to oiled parts.
L
M
Connecting rod marking:
Connecting rod and cap number marking must be on one side and identical.
