12
Instrument kits
The instrumentation is also supplied separately in sets.
There are also the following three smaller panels for
starting and stopping the engine and using the alarm
functions.

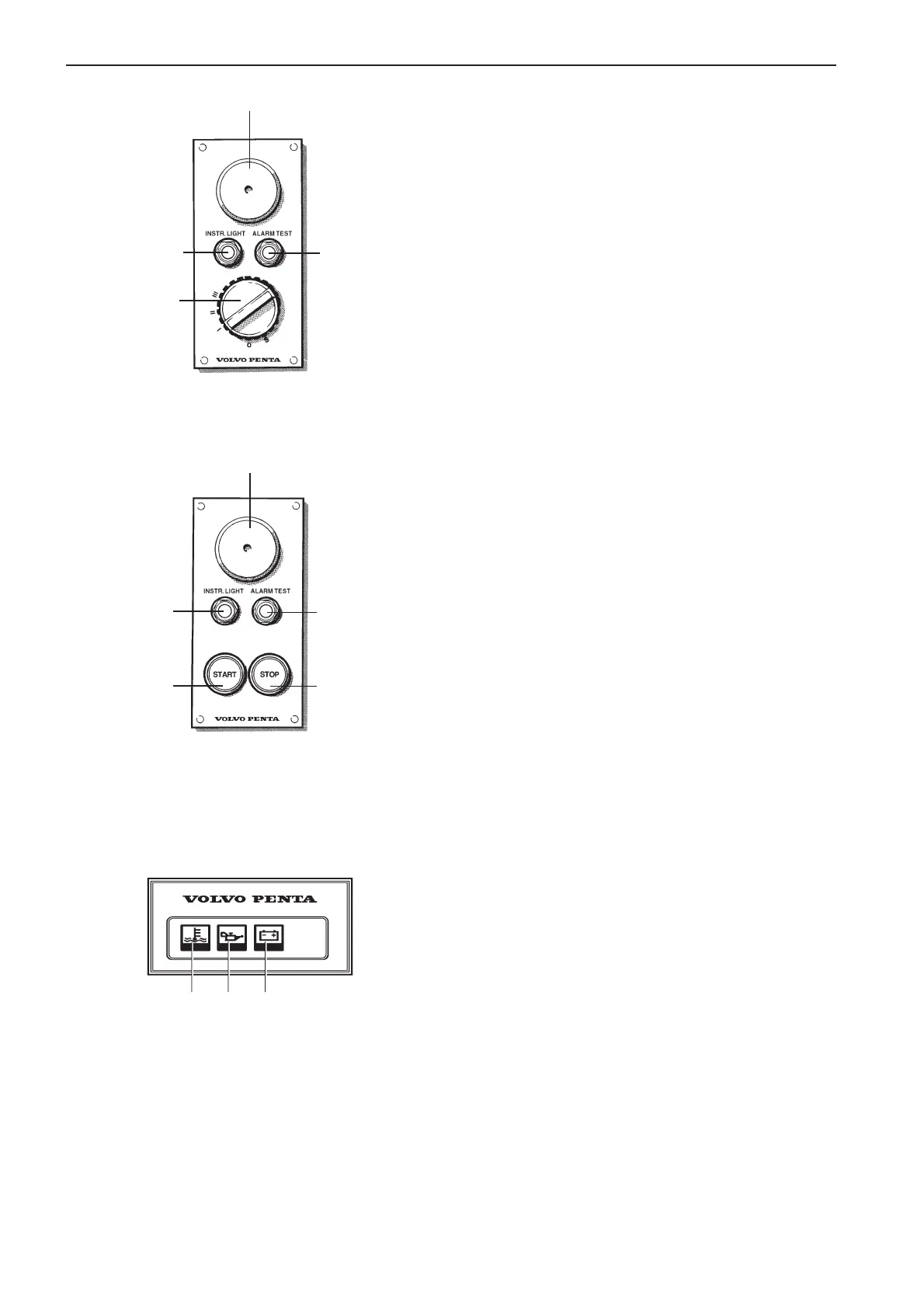

Control panel for pilot house
(main panel)
The pilot control panel has the same functions as the
main panel (pos. 4–5 and pos. 7–8).
Control panel for alt. operating
position
The control panel at the alternative operating position
has the same functions as the panel for the alternative
operating position (pos. 21–23).
Note The key switch in the pilot house control panel
must be in position I (operating position) for starting to
be carried out from the secondary operating position.
29. Start button The starter motor is engaged when
this button is pressed. Release the button as soon
as the engine has started.
30. Stop button The stop solenoid or stop valve is
engaged when this button is pressed.
7
4
5
8
22
29
23
21
30
Pilot house
Alarm panel
11
12 13
Alt. operation position
Alarm panel
The alarm panel has warning symbols corresponding to
those on the main panel (pos. 11–13).
