Maintenance – Engine
Air cleaner (ACL) replacement
TAMD163A, TAMD163P
1. Unscrew the center screw on the end of the filter.
Lift out and remove the filter for disposal. The filter
cannot be re-used.
2. Clean inside the filter housing using a damp cloth.
3. Reinstall using a new filter insert. Check the filter is
completely in the air cleaner filter housing. Tighten
the center screw.
4. Reset the pressure drop indicator by pressing in
the button (2).
5. Check for air leaks after starting the engine.
Air cleaner (ACL) replacement
TAMD162C
1. Detach clamps on the air cleaner (ACL) mounting.
Remove the old air filter.
2. Install the new filters. Tighten the clamps.
3. Reset the pressure drop indicator by pressing in
the button.
5. Check for air leaks after starting the engine.
Tensioning drive belts
A. Locking screws
Filter replacement for crankcase
ventilation (2 filters)
TAMD163P
1. Remove the old filters by unscrewing
counterclockwise.
2. Check the rubber gasket in the mounting, replace
if necessary. Screw on the new filters by hand.

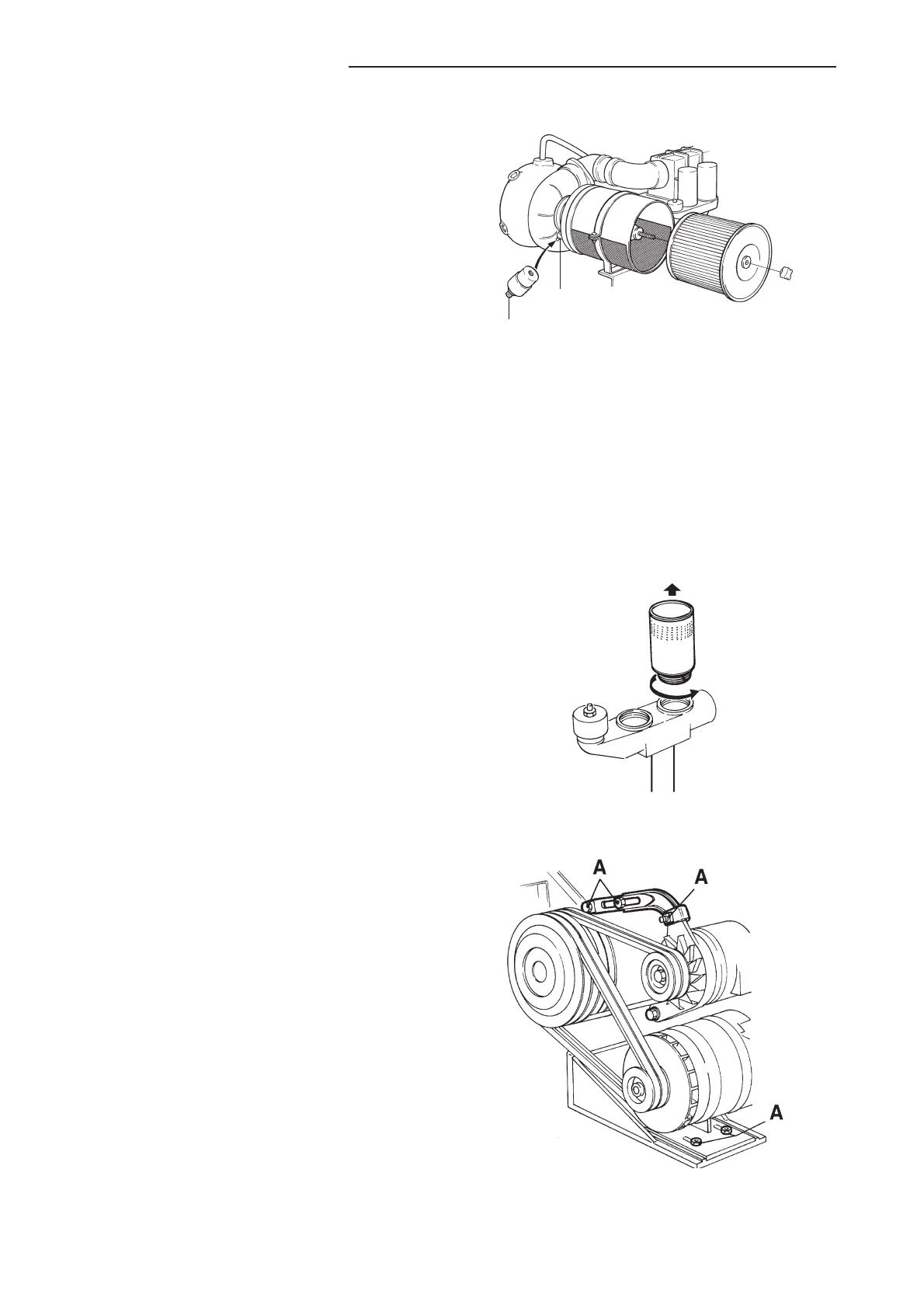

TAMD163A, TAMD163P: Filter insert replacement
1. Pressure drop indicator
2. Reset button
Inspecting/adjusting belt tension
Check the belt(s) for wear. Belts which work in pairs
should be replaced at the same time.
Undo screws (A) before tensioning the belt(s).
It should be possible to depress the belts 10 mm (0.4").
Tighten screws (A).
