Brake pads, replacing (one
wheel, first boggie axle)
512 Service Information 2014/8/21
Profile:
ART, A30D [GB]
Brake pads, replacing (one wheel, first boggie axle)
Op nbr 512-005
This operation also includes required tools and times for applicable parts of the following operations:
191 Service positions
771 Wheel, removing and installing
1. Place the machine in service position, see .
191 Service positions
2. Remove the wheel, see .
771 Wheel, removing and installing
3. Remove the guard.

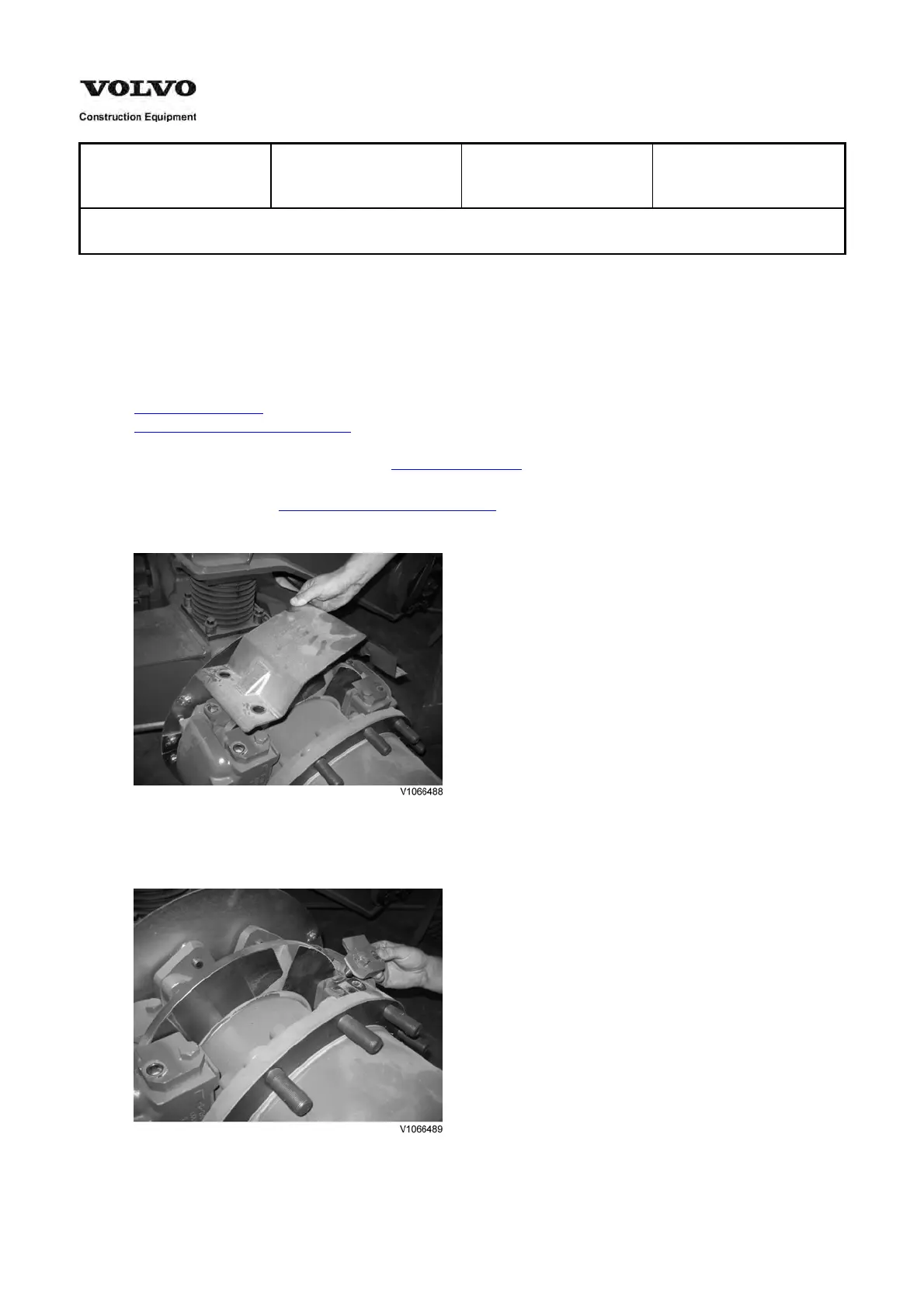

Figure 1
4. Remove the brake pad's stop.
Figure 2
5. Pry back the pistons with a pry bar.
To Next Page
