20
Controls
This chapter describes the controls available from Volvo Penta. If your boat is equipped with controls which are
not described here and you feel uncertain about the function please contact the dealer you purchased the boat
from.

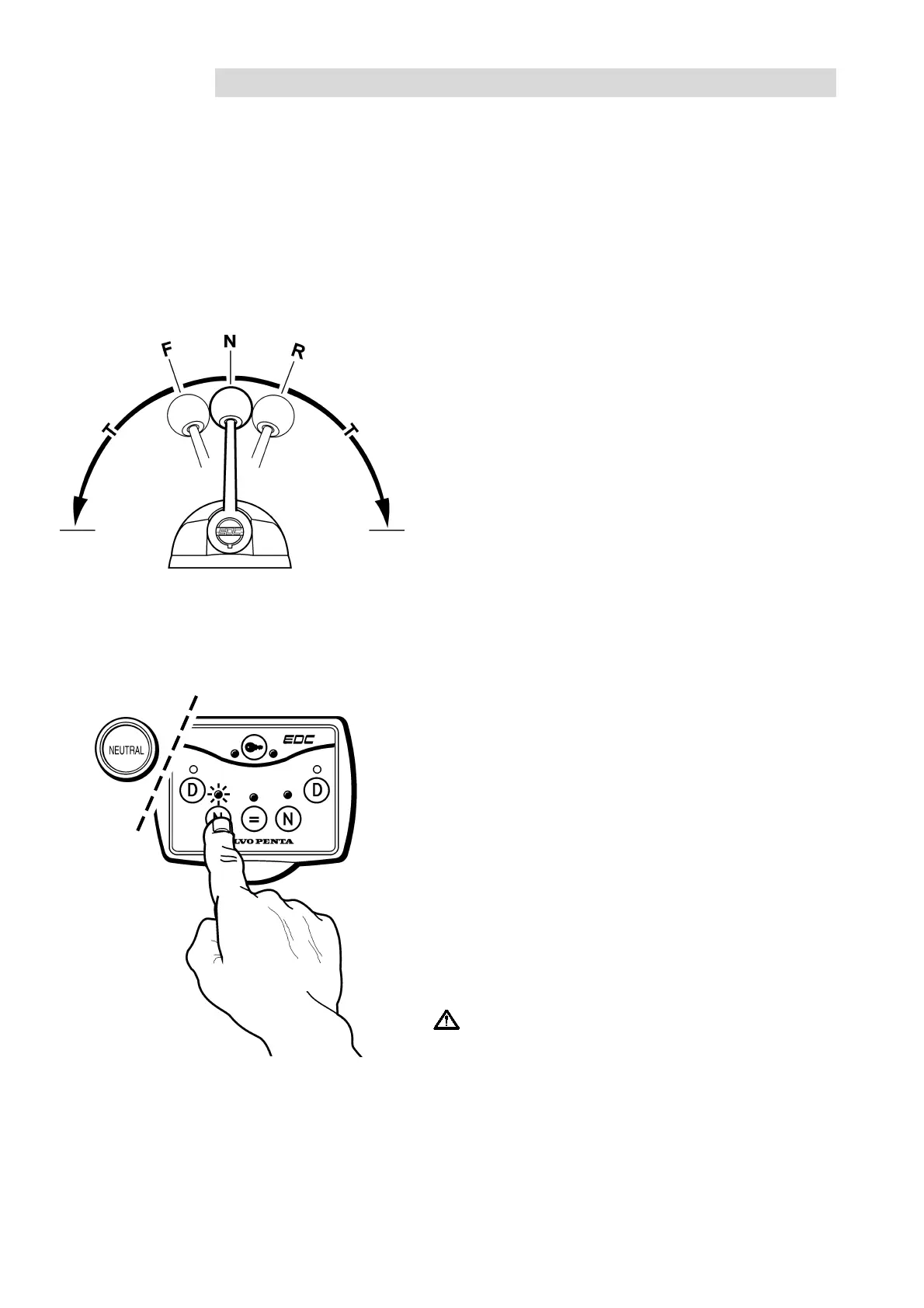

Single lever control. Electronic
Operation
Both the shift function and engine speed control are con-
trolled using the single lever control.
N = Neutral position (reverse gear is disengaged and the
engine runs at idle speed).
F = Reverse gear engaged for movement ahead.
R = Reverse gear engaged for movement astern.
T = Engine speed control.
NOTE! The engine can be started only if the control lever
is in the neutral position.
Disengaging the shift function
The shift function can be disengaged so that the control
lever only affects the engine speed.
1. Move the lever to the neutral position (N).
2. Press the neutral button in and hold it down while mov-
ing the control lever forward to the shift position (F).
3. Release the neutral button. The indicator begins to
flash to acknowledge that the shift function is disen-
gaged.
The lever now only affects the engine speed (RPM). In this
position the engine speed is limited to a maximum of 2000
rpm.
When the lever is moved back to the neutral position it will
automatically re-engage.
WARNING! Take care not to engage the reverse
gear unintentionally.
