Page 7
Installation:

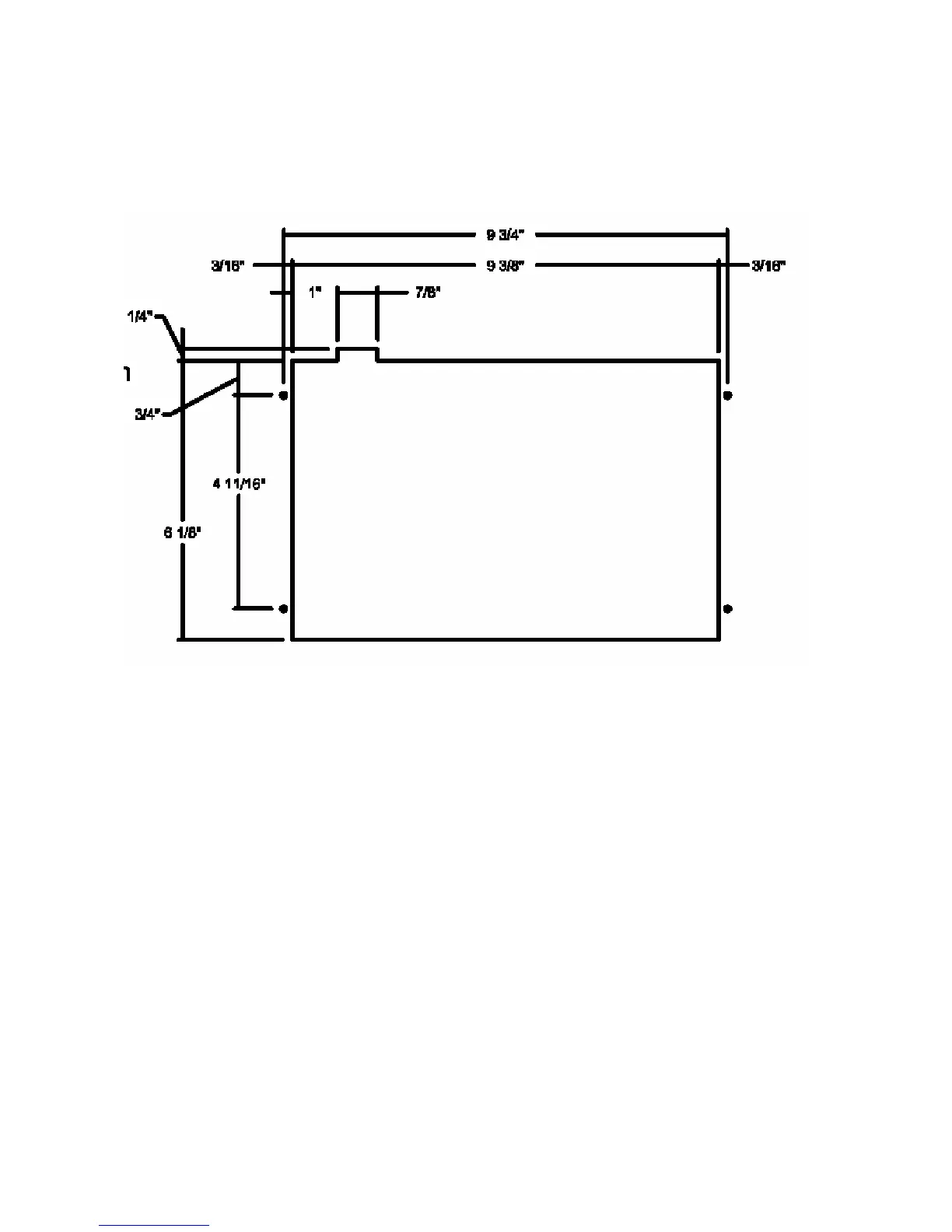

1) Cut a mounting hole in the desired location using mounting hole diagram (below) and use the
four 3x20min self tapping screws provided to mount the unit.
2) Route power, speaker and antenna cables through hole and connect to unit as outlined in the
Wiring Color Code diagram on the previous page.
3) After making sure connections are correct, test operation.
Specifications:
Operating Voltage: 11-16VDC
Output Power: 50 Watts Total (25 Watts per Channel)
Output Wiring: 2/4 speaker and Headphone System
Output Impedance: Compatible with 4-8 Ohm Speakers,
4 Ohm Load Min.
Tuning Range: (AM)530-1720 KHz
(FM) 87.5-108 MHz
Sensitivity (AM) less than 15uv
(FM) less than 2.5uv
FM Stereo Separation: More than 30dB
CD Frequency Response: 20-20,000 Hz
CD Channel Separation: 50dB
CD S/N Ratio: 60dB
CD Distortion: 0.3%
Size-
Overall Size: 10.43”(W)x7” (H)x6.26 (D)
265mm(W)x178mm(H)x159mm(D)
Mounting Size: 9.25”(W)x6.05”(H)x5.25”(D)
235mm(W)x154mm(H)x133mm(D)
Weight: 4 lbs.(1.8 Kg)
