13.1 Noise and vibration information
The noise and vibration information listed was determined according to the following guidelines with the
machine-typical operating states / specific test conditions while applying harmonized standards:
Machine directive 2006/42/EC
Noise emissions directive 2000/14/EC
In operational application, deviating values may result depending on the prevailing operating conditions.
13.1.1 Noise information
Sound pressure level at operator's location
The LpA was determined pursuant to EN ISO 11201 and EN 500-4.
Guaranteed sound power level
The LWA was determined pursuant to EN ISO 3744 and EN 500-4.
13.1.2 Vibration information hand-arm vibration (HAV)
Weighted vibration total value
The ahv was determined pursuant to EN ISO 20643 and EN 500-4.

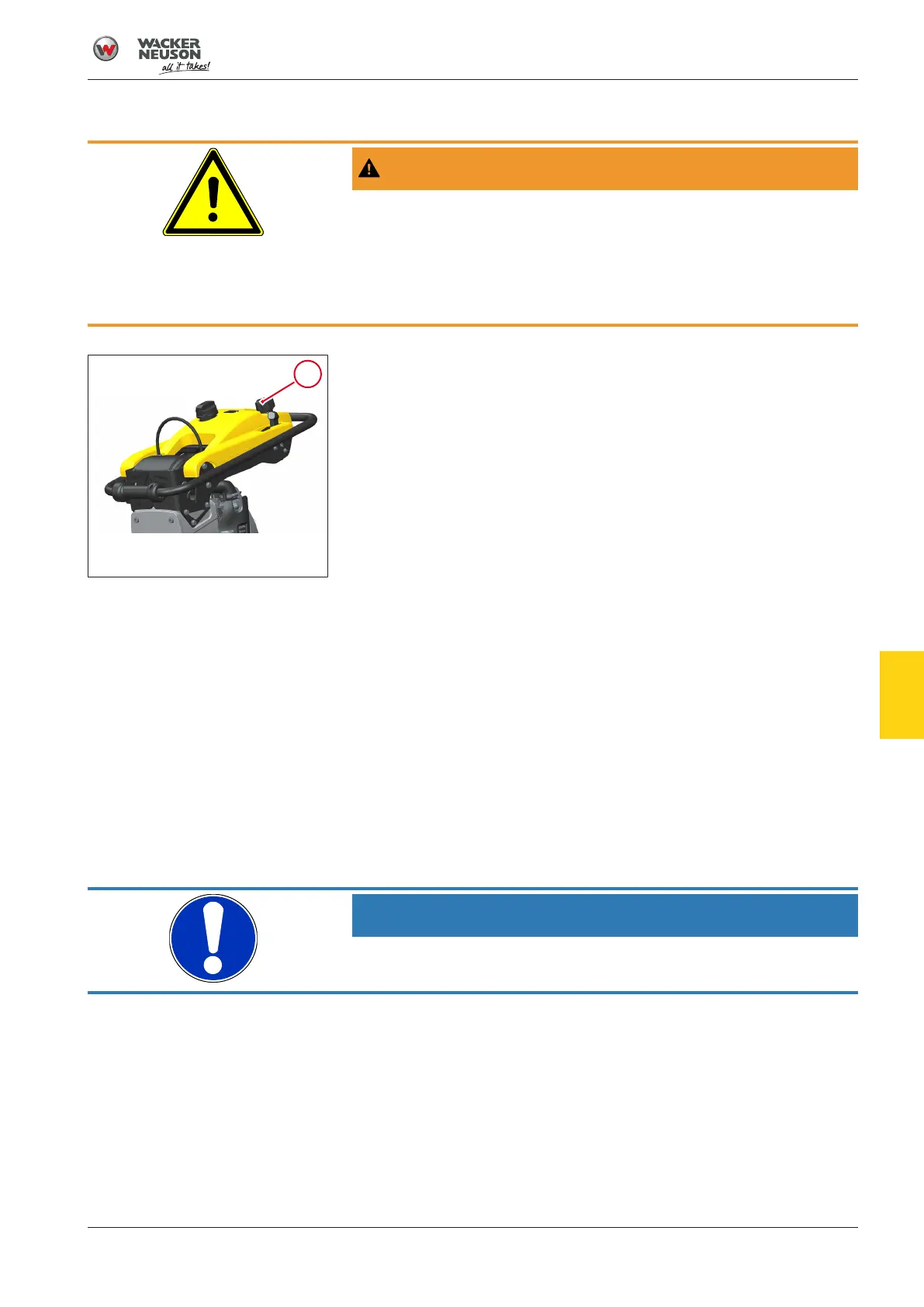

13.2 BS50-2
Designation Unit BS50-2 11" BS50-2 11" US BS50-2 6"
Item number 5100030591 5100030590 5100030592
Percussion rate rpm 687
Impact force kN 16
Travel speed m/min 9,5 7,9
Length mm 673
Width mm 343
Height mm 940
Length (ramming shoe) mm 340
Width (ramming shoe) mm 280 165
Weight kg 59 56
Operating power kW 1,7
Operating speed* rpm 4.250
Standard ISO 3046-1
Operating temperature range °C -10 – +40
Sound pressure level L
pA
dB(A) 92
Sound power level L
WA
measured
guaranteed
dB(A)
dB(A)
107
108
Vibration total value a
hv
m/s
2
9,8 5,4
Uncertainty of measurement
of the vibration total value a
hv
m/s
2
1,5
Oil specification SAE 10W-40
Oil quantity l 0,7
*
Depending on the operating parameters, material properties and environmental impacts.
