G/GS 5.6A Operation
wc_tx000152gb.fm 23
4.15 Voltage Selection

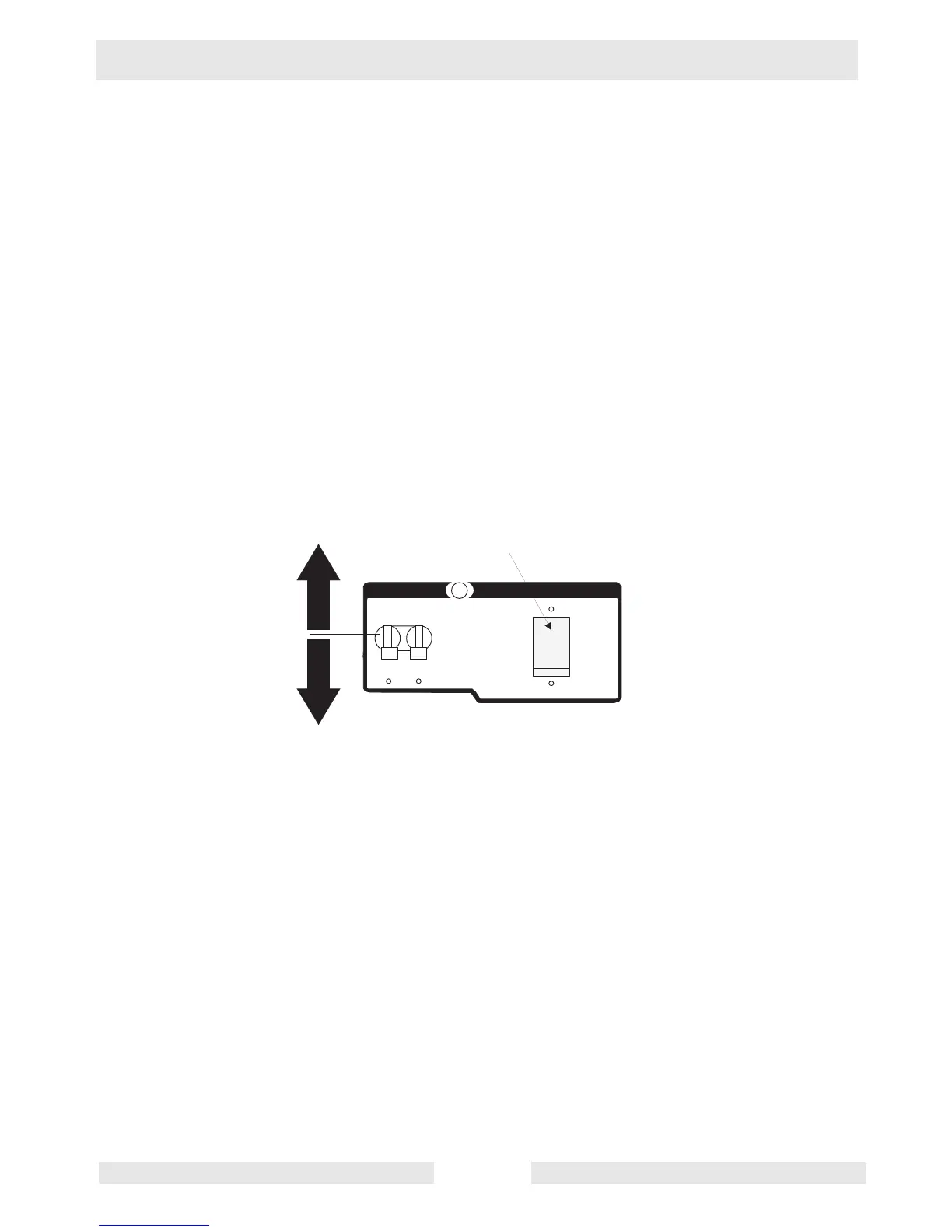

See Graphic: wc_gr000546
The voltage selector switch (a) allows the generator to operate in either
single (120V) or dual voltage (120/240V) mode.
In single voltage mode only the 120V twist-lock and duplex receptacles
are powered. The full rated power of the generator is shared between
the three receptacles.
In dual voltage mode both the 120V and 240V receptacles are
powered; however, only half the rated power (23 amps) is available at
the 120V duplex receptacles and the other half at the 120V twist-lock
receptacle. Full power is available at the 240V twist-lock receptacle.
CAUTION: NEVER switch the voltage selector switch with the main
breaker on! This can cause arcing and can damage the generator.
Turn all tools and appliances off and place main breaker in the “OFF”
position (open) (O) before changing voltage switch position.
w c _ g r 0 0 0 5 4 6
M A I N
C O N T R O L S
M A I N B R E A K E R
S E T M A I N B R E A K E R
" O F F " B E F O R E
S W I T C H I N G V O L T A G E
1 2 0 V
1 2 0 / 2 4 0 V
V O L T A G E
O
I
a
