WAGNER CONTROL SPRAY QX5 User Manual

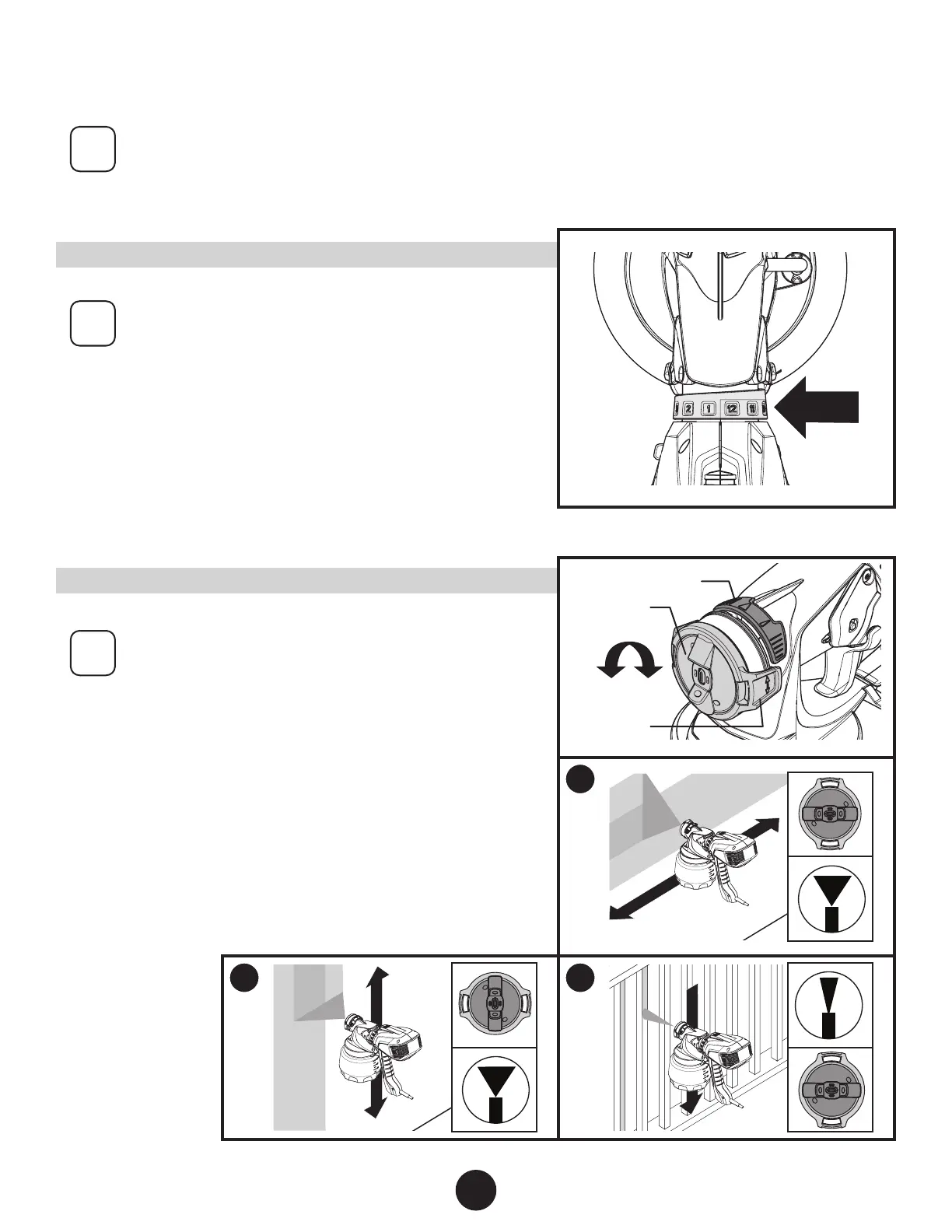

AIR CAP / PATTERN ADJUSTMENT
MATERIAL FLOW CONTROL
8
EN
SPRAYER CONTROLS
i
The material ow control will be factory-set
at its lowest setting out of the box. Adjust as
needed.
• Turn the knob out (counterclockwise) for less ow. Generally,
low material ow is needed for spraying smaller surface areas,
such as corners, lattice, or spindles.
• Turn the knob in (clockwise) for increased ow. Generally,
high material ow is needed for spraying large surface areas,
such as fences and decks.
i
For a video showing Control Spray QX5 spraying tips and best practices, visit:
www.wagnerspraytech.com/controlsprayQX5
i
Adjust the spray pattern by turning the air cap
ears. The air cap position will determine the
movement direction of the spray gun.
The spray width lever on the iSpray nozzle
determines the width of the spray pattern.
1. Vertical pattern:
Use side-to-side motion during spraying.
2. Horizontal pattern:
Use up and down motion during spraying.
3. Narrow pattern (set spray width lever to narrow):
Use up and down, or side to side spraying motion, depending
upon the object being sprayed..
AIR CAP
SPRAY WIDTH LEVER
AIR CAP EARS
1
=
=
2
=
=
3
=
=
