W 950 Flexio/ W 975 Flexio
Wall paint
40
W 950 Flexio/ W 975 Flexio
EN

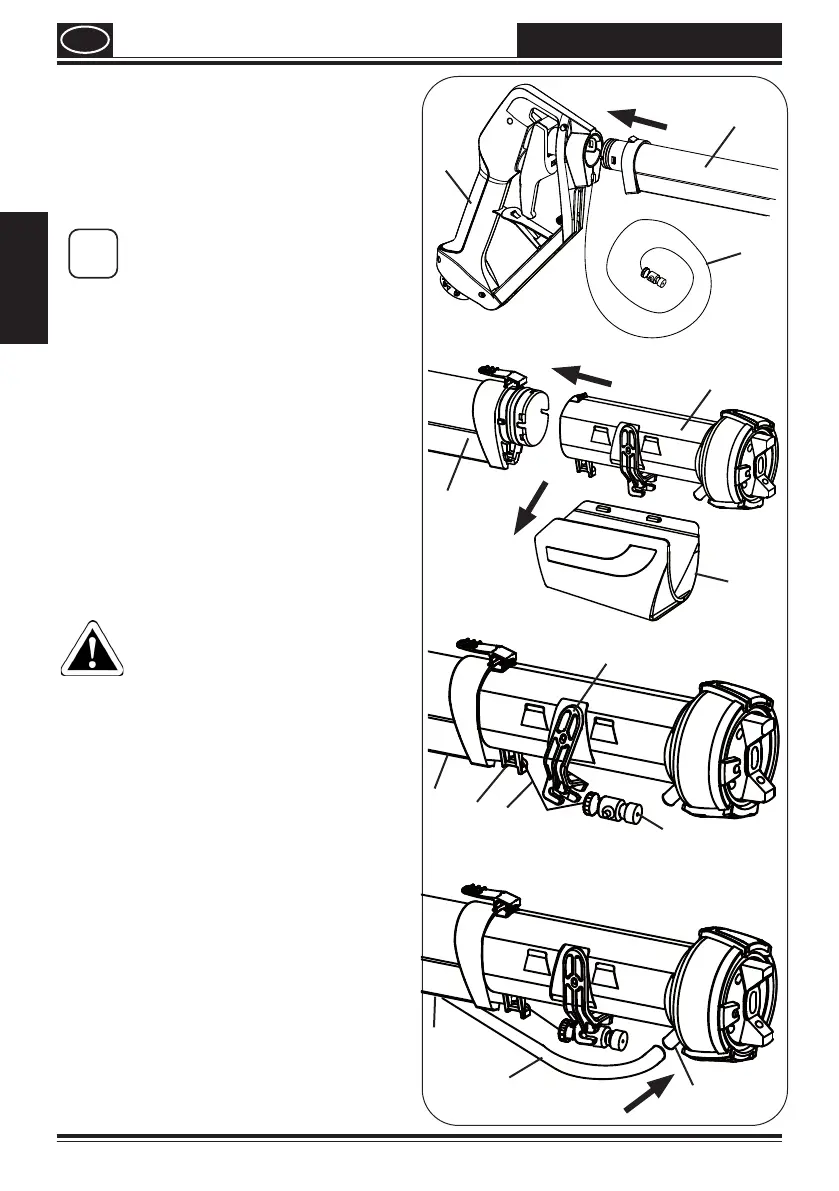

10. Assembling the spray lance
(g. 2)
•
Take the rolled-up pull wire (g. 2, 1) out
of the grab handle (2) and unwind it.
•
Put air pipe (3) in grab handle (2).
i
After assembly, the air pipe and
grab handle can no longer be
separated.
Do not try to disassemble them
by force!
•
Put together the spray head (4) and air
pipe (3).
•
Remove the cover (5) from the spray head
(4).
•
Insert the pull wire (6) into the guide rail
(7) on the bottom side of the air pipe and
pull it over the guide hook (8) to the spray
head.
•
Push back the trigger (9) and connect the
pull wire. Set the pull wire at a tension
using the adjustment screw (10).
Attention! Do not tighten the
adjustment screw (10) too
much. The nozzle opening has
to remain closed at this point,
as otherwise material might
leak out.
•
Push the end of the material hose (11),
without the securing clip, into the slot (12)
on the spray head.
•
Guide the material hose close along the
spray head along to the grab handle and
push it into the guide rail (7).
•
Clip the cover (5) back on to the spray
head.

1
2
3
3
4
5
9
7
8
6
10
12
11
7
