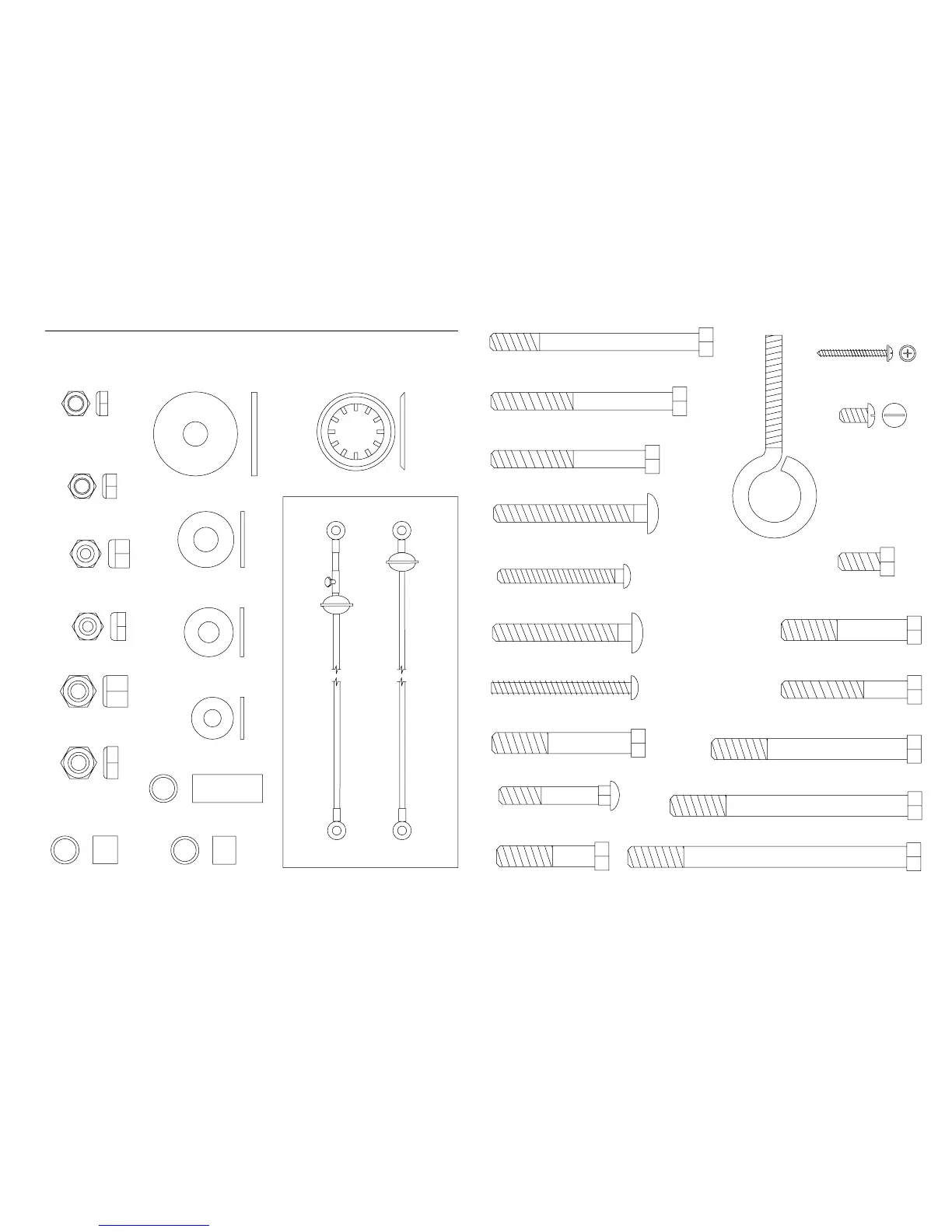

PART IDENTIFICATION CHART—Model No. X2-1 R0197A
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part
refers to the key number of the part. The second number refers to the quantity used in assembly.
1/4” Jam Nut (75)–4
1/4” Nylon Locknut (3)–2
1” Retainer (8)–4
5/16” Nylon Locknut (1)–14
3/8” Flat Washer (65)–3
5/16” Flat Washer (5)–10
1/4” Flat Washer (6)–2
3/8” Nylon Locknut (2)–5
1/2” x 1 1/4” Spacer (66)–1
5/16” x 3/4” Bolt (76)–3
5/16” x 2” Carriage Bolt (64)–1
3/8” x 4 1/4” Bolt (77)–1
3/8” x 3 1/2” Bolt (51)–1
3/8” x 2 1/4” Bolt (78)–1
3/8” x 1 3/4” Bolt (68)–6
1/4” x 1/2” Screw (11)–8
5/16” x 3 3/4” Bolt (49)–1
5/16” x 3 1/4” Bolt (43)–2
5/16” x 2 3/4” Carriage Bolt (14)–1
5/16” x 2 1/2” Carriage Bolt (35)–4
3/8” Jam Nut (82)–7
5/16” Jam Nut (81)–4
3/8” x 5” Bolt (67)–1
CABLES ARE NOT SHOWN TO SCALE
Low Cable (70)–1
High Cable (71)–1
5/16” x 2 3/4” Bolt (7)–1
5/16” x 1 1/2” Fender Washer (28)–2
5/16” x 2 1/4” Bolt (80)–5
1/4” x 2 1/2” Screw (16)–2
1/2” x 7/16” Spacer (63)–1
1/2” x 13/32” Spacer (55)–2
1 1/4” Tap Screw (39)–2
3/8” x 2 1/2” Bolt (44)–2
1/4” x 2 1/4” Carriage Bolt (12)–2
5/16” x 2” Eye Bolt (21)–1
