16
TROUBLE-SHOOTING AND MAINTENANCE
Inspect and tighten all parts each time you use the home gym system. Replace any worn parts immediately. The
home gym system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

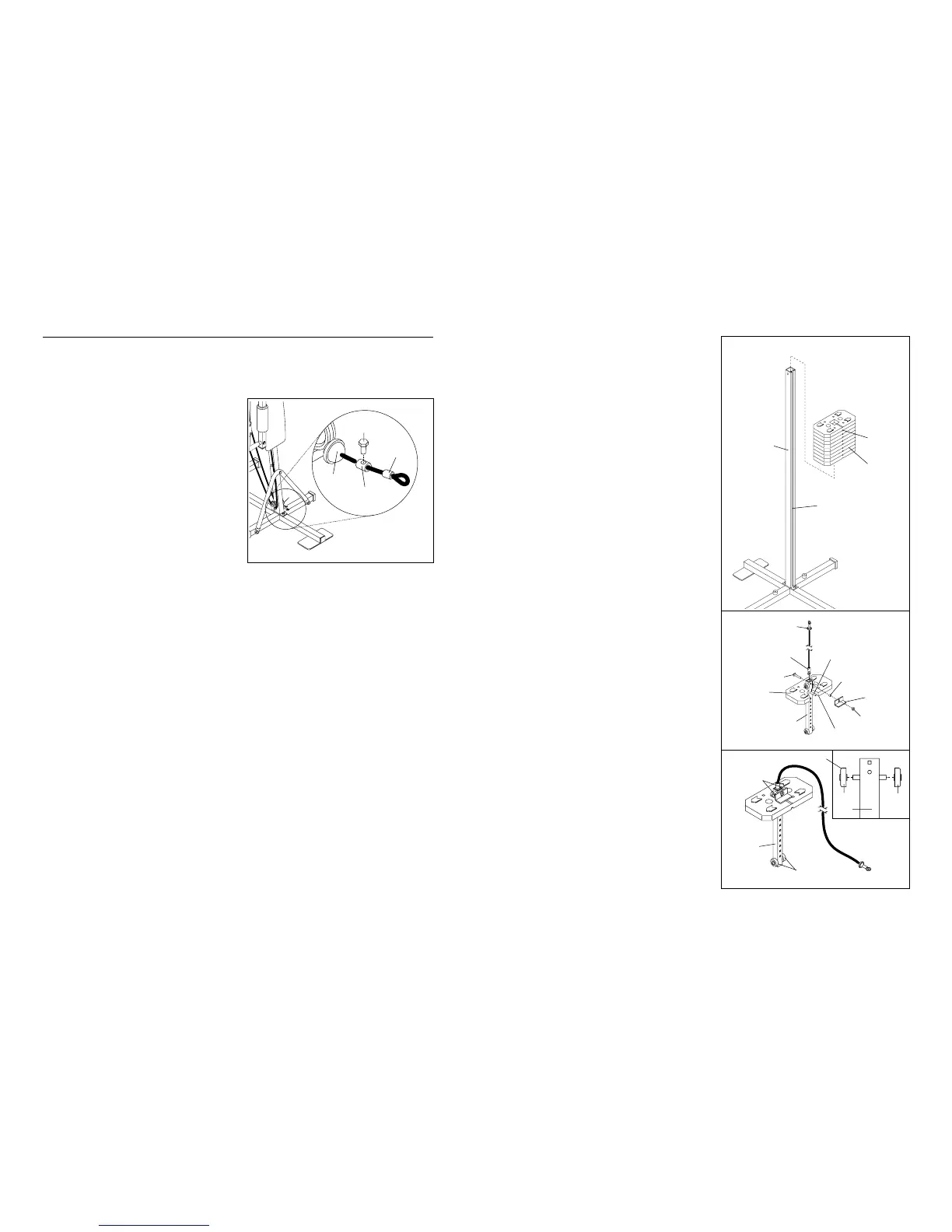

HOW TO TIGHTEN THE CABLES
Woven cable, the type of cable used on the home
gym system, can stretch slightly when it is first used. If
there is slack in the cables before resistance is felt,
the cables should be tightened. Locate the adjustment
sleeve and adjustment screw near the lower end of
the Low Cable (70). Loosen the adjustment screw.
Pull the end of the Low Cable until there is no slack.
Slide the adjustment sleeve and the ball against the
indicated 3 1/2” Thin Pulley (4). Retighten the adjust-
ment screw. Make sure that the cables are not too
tight, or the top weight will be lifted off the weight
stack.
If the cables need to be replaced, see ORDERING
REPLACEMENT PARTS on the back cover of this
user’s manual.
70
4
Adjustment
Screw
Adjustment
Sleeve
Ball
5
3. Slide nine Weights (45) onto the Guide Tube (34).
Make sure that the Weights are turned so the
pin grooves are on the slotted side of the
Guide Tube.
4. Slide the tenth Weight (45) onto the Weight
Selector (47). Make sure that the pin groove is
resting on the pin on the Weight Selector.
Find the High Cable (71) (see the PART IDENTIFI-
CATION CHART).
Hold the indicated end of the High Cable (71)
inside the Weight Selector (47). Insert the 5/16” x
2” Carriage Bolt (64) into the Weight Selector and
through the eyelet on the end of the High Cable.
Slide the 1/2” x 7/16” Spacer (63) and the Weight
Bracket (62) onto the Carriage Bolt. Thread a
5/16” Nylon Locknut (1) onto the Carriage Bolt. Do
not tighten the Nylon Locknut yet.
IMPORTANT NOTE: The cables will need to be
adjusted after assembly is completed. This will
be performed in step 29.
5. Make sure that the four Nylon Wheels (46) are
attached to the Weight Selector (47). In addition,
make sure that each Nylon Wheel is turned so the
round edge is away from the Weight Selector (see
the inset drawing).
3
4
5
Pin
Groove
45
34
Slot
63
Pin
46
46
64
71
Rubber Stop
62
1
47
45
Pin Groove
47
46
Round Edge
46
47
To Next Page
