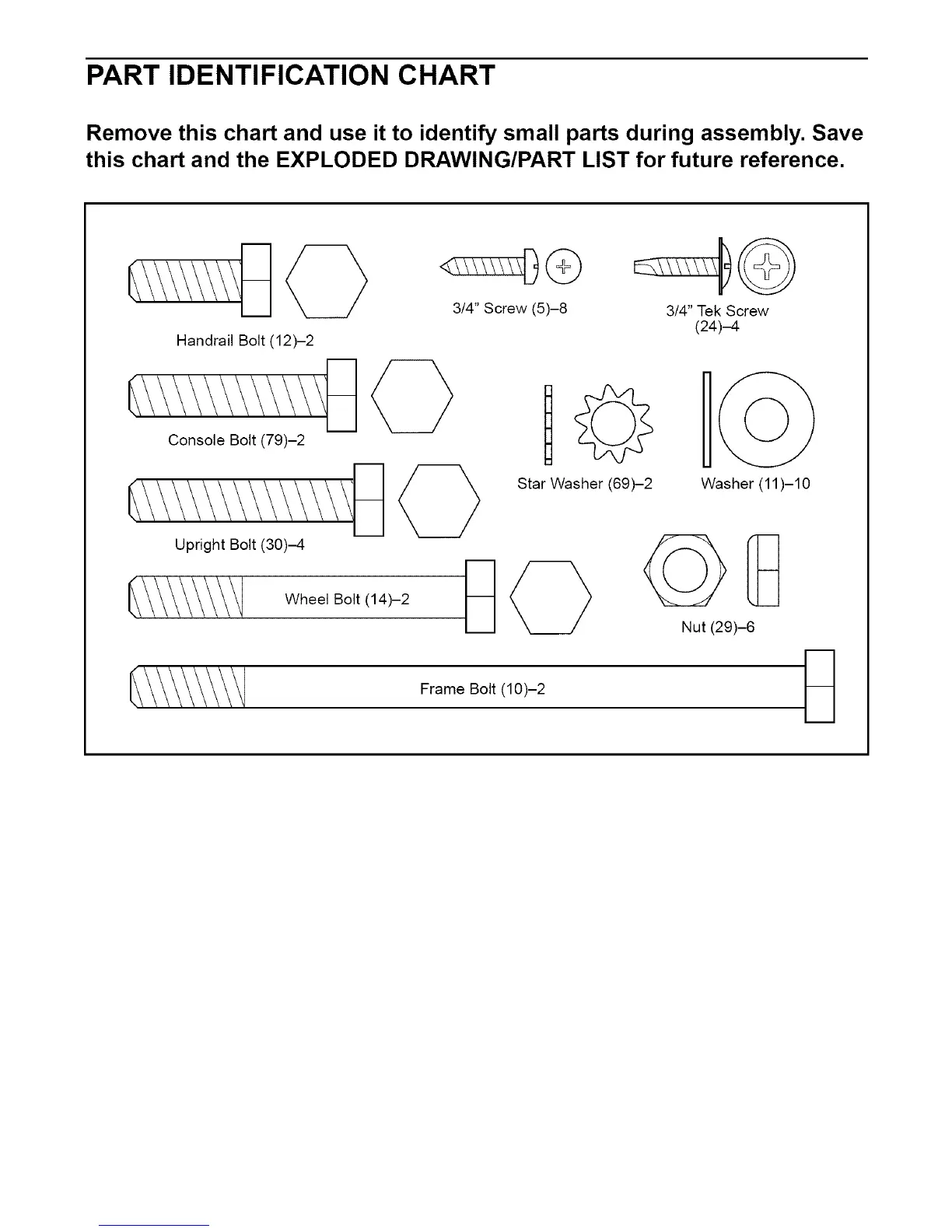

PART IDENTIFICATION CHART
Remove this chart and use it to identify small parts during assembly. Save
this chart and the EXPLODED DRAWING/PART LIST for future reference.
Handrail Bolt (12)-2
Console Bolt (79)-2
_\\\\\\\\\\\\\_
Upright Bolt (30)-4
whee,
_G
3/4" Screw (5)-8
Star Washer (69)-2
©
3/4" Tek Screw
(24)-4
Washer (11)-10
-DO
Nut (29)-6
__ Frame Bolt (10)-2
