WFCO EM-15 User Manual

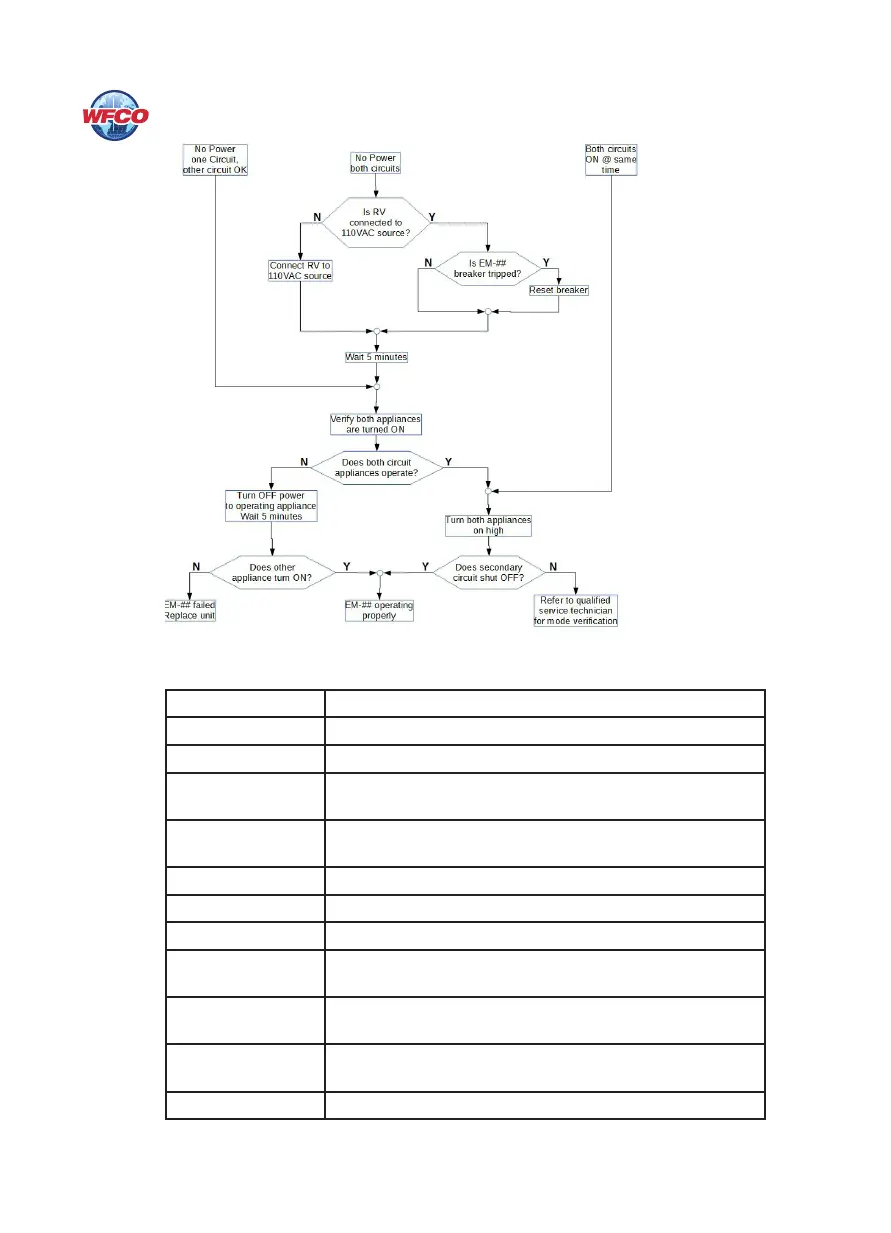

Troubleshooting Chart
Specications
Model: EM-15 & EM-20
Power: 120V / 60Hz
Power Relay: 2; Contact Rating: 30A / 250VAC; Coil Rating: 12VDC
Logic Control Relay
(EM-20 ONLY):
2; SPDT Contact Rating: 3A / 250VAC; Coil Rating: 12VDC
Delay Time: 3 minute resume delay time for air conditioner protection (EM-20
ONLY); N/A for general appliances
Enclosure: Fire-retardant reinforced plastic
Dimensions: 128 x 112 x 73 mm / 5.04 x 4.41 x 2.9 in (L x W x H)
Weight: 0.55 kgs / 1.21 lbs
Mounting: Wall/Floor mounting or mount directly to the back of WFCO
Power Centers (8900 or 8500 Series)
Remote Switch
(EM-20 ONLY):
12  long wire and RJ11 connector; 1 switch to set circuit
priority; 2 LEDs to indicate which circuit is priority
AC Connections: 9P terminal block for 12 AWG / 14 AWG wire; Suggested 7 in-lb
torque
Safety: CETL / UL 916 + CSA C22.2 NO. 205
14

WFCO EM-15 Specifications

General

Brand	WFCO
Model	EM-15
Category	Switch
Language	English
