26
Maintenance
Brush Deck
The dual cylindrical head is designed to agitate the
carpet while vacuuming. The first scrubbing brush
turns in a clockwise rotation when viewed from the right
of operator's side of machine. The first brush scrubs
dirt and debris between the brushes. The second
brush, turns in a counter clockwise rotation, picks up
debris and throws it into the debris tray.
NOTE: The brushes should wear evenly side to side.
Brushes should be replaced as a set when bristle
length wears to height of yellow PerformAlert™
bristles.

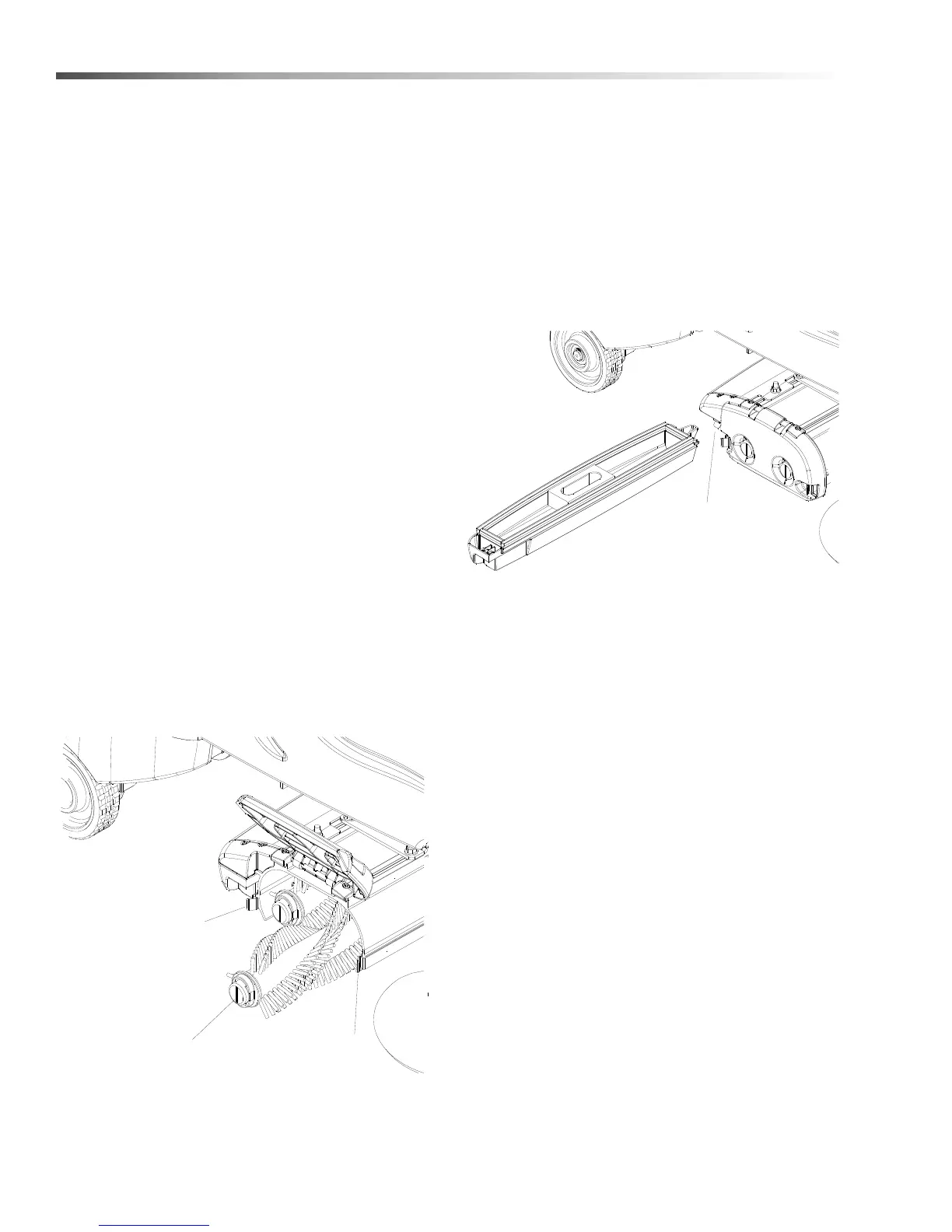

Brush Removal
The brushes are removed from the right side of the
machine.
1. Release door spring clips and rotate the brush door
up.
2. Slide the brushes out the side opening.
Brush Installation
1. Slide brush through door opening and onto drive
shaft. Make sure it is fully seated and is driven by
the deck system.
2. Rotate the brushes until the indicator lines on the
ends are vertical.
3. Rotate the brush door down and secure with spring
clips.
Debris Tray Removal
1. Release the debris tray spring clip.
2. Slide the debris tray away from machine.
Debris Tray Installation
1. Slide the debris tray into the debris tray mount
notch.
2. Secure with debris tray spring clip.
SPRING CLIP
VERTICAL INDICATOR LINE
SPRING CLIP
86347810 Chariot iVacuum 34
