Replacement of Parts
47

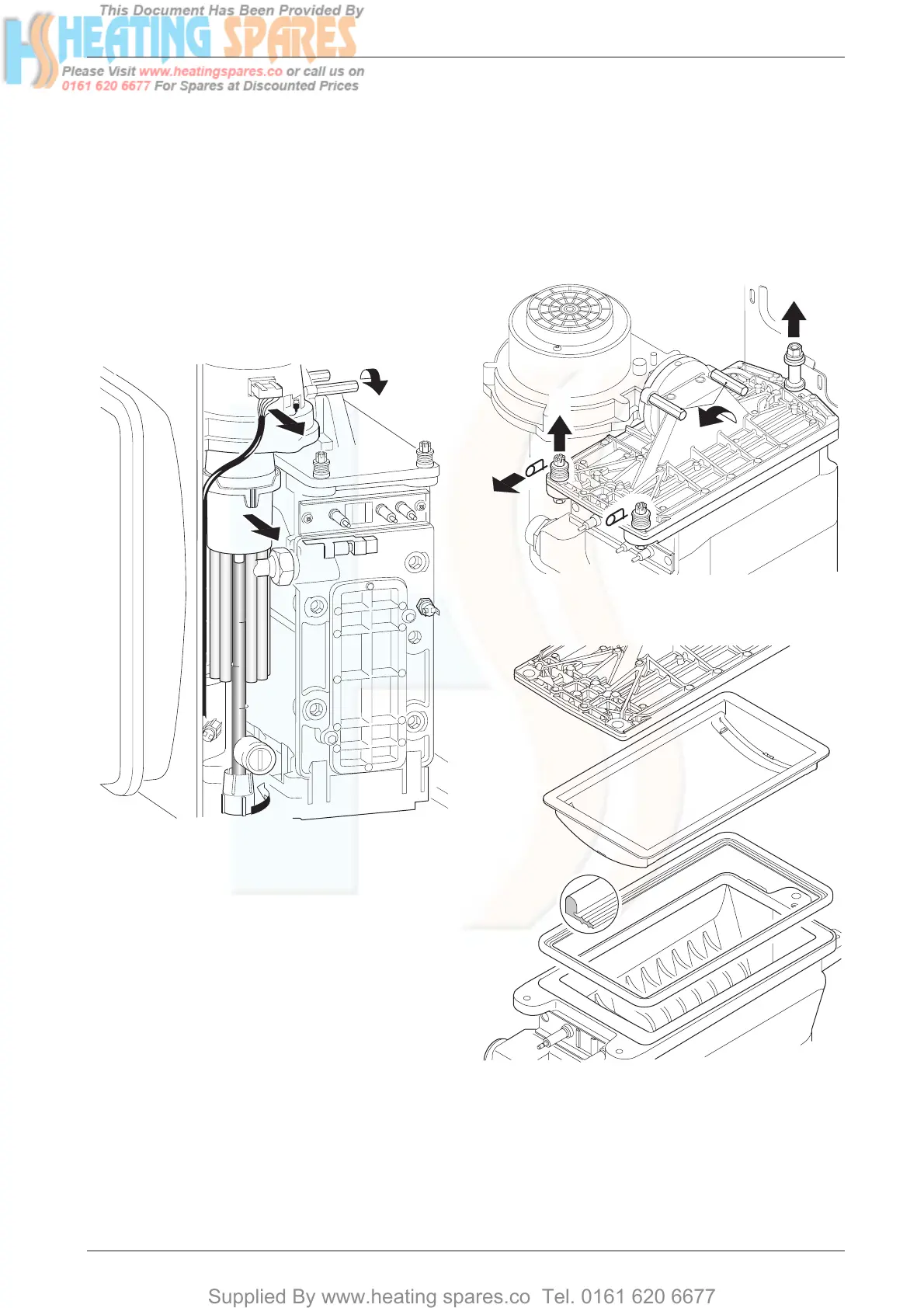

5.2 Fan Assembly
B Power OFF the appliance.
B Undo lower pipe union on gas pipe (1.).
B Remove fan lead and earth connector (2.). The earth
connector has a positive clip fixing.
B Remove fixing screws attaching fan to the burner
cover (3.).
B Remove three fan fixing screws.
B Remove fan together with gas pipe and mixer unit.
B Separate the fan from the pipe and mixer unit by
twisting the mixer unit to release it (4.).
Fig. 9
5.3 Primary Heat exchanger/Burner
B Power OFF the appliance.
B Remove spring cotters from two front cover fixing
assemblies.
B Unscrew the two front fixing assemblies.
B Slacken fully the rear securing bolt (4).
B Undo the fan fixing screws.
Fig. 10
B Remove the burner coverplate.
Fig. 11
B Remove burner and seal.
1 .
2 .
3 .
4 .
7 1 8 1 4 6 5 3 2 - 2 3 .
1.
2.
4.
7 181 465 330-04.1R
3.
