1. Transfer Roller
2. Fuser
3. Rear Door
4. Wireless Network Adapter Port Cover
5. Phone Connector
6. Fax Line Connector
7. USB Port, Type A
8. USB Port, Type B
9. Ethernet Port
10. FDI Port
11. Left-Side Panel, Access to optional
Productivity Kit
12. Power Connector
OOppttiioonnss

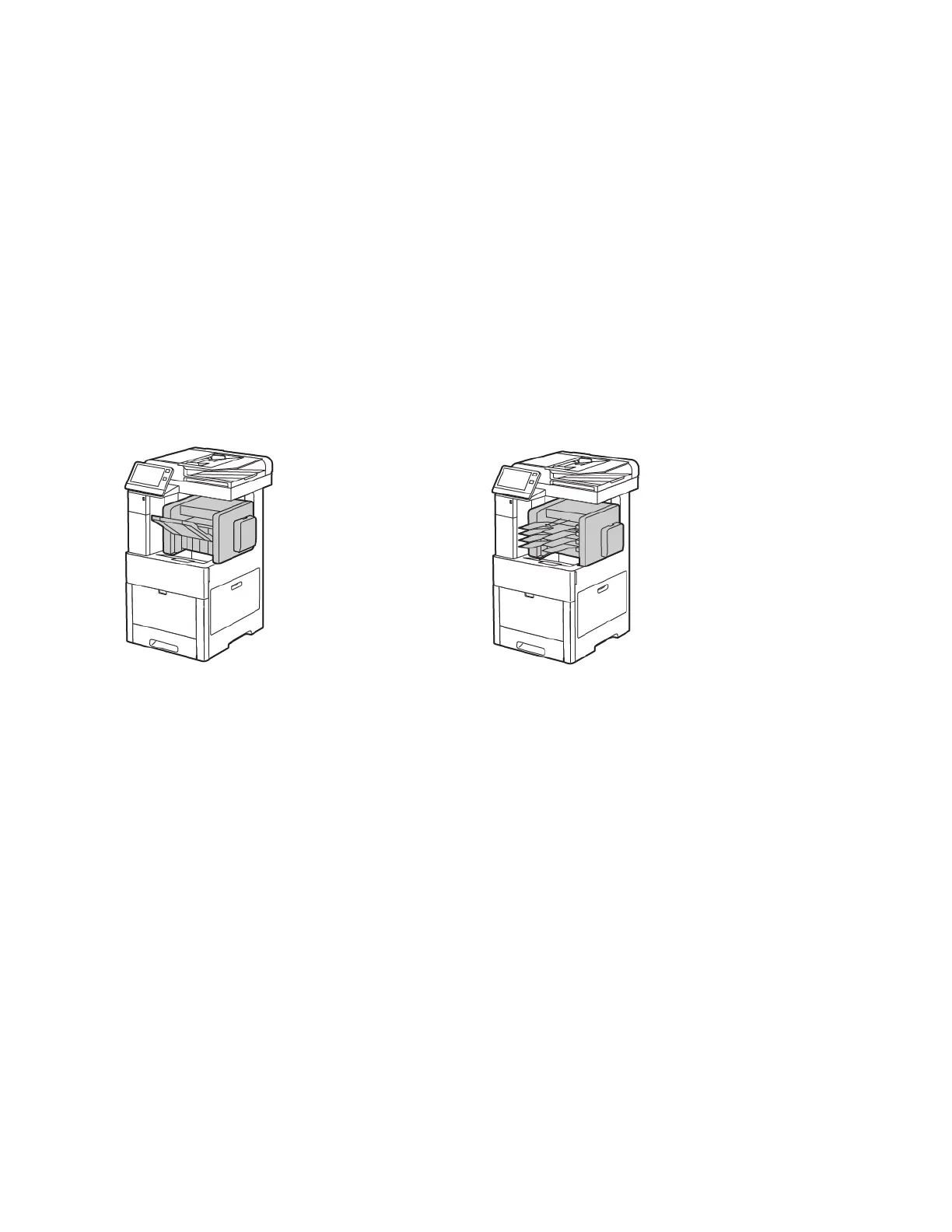

Finisher Mailbox
CCoonnttrrooll PPaanneell
The control panel consists of a touch screen and buttons you press to control the functions available
on the printer. The control panel:
• Displays the current operating status of the printer.
• Provides access to print, copy, and scan features.
• Provides access to reference materials.
• Provides access to Tools and Setup menus.
• Prompts you to load paper, replace supplies, and clear jams.
• Displays errors and warnings.
• Provides the Power/Wake button used for powering on or powering off the printer. This button
also supports the power-saver modes, and blinks to indicate the power status of the printer.
Xerox
®
VersaLink
®
C505 Color Multifunction Printer
User Guide
25
Getting Started

Xerox VersaLink C505S Specifications

General

Brand	Xerox
Model	VersaLink C505S
Category	All in One Printer
Language	English
