Xilinx VC707 Manual

VC707 BIST
Download the BIST bitstream with Vivado

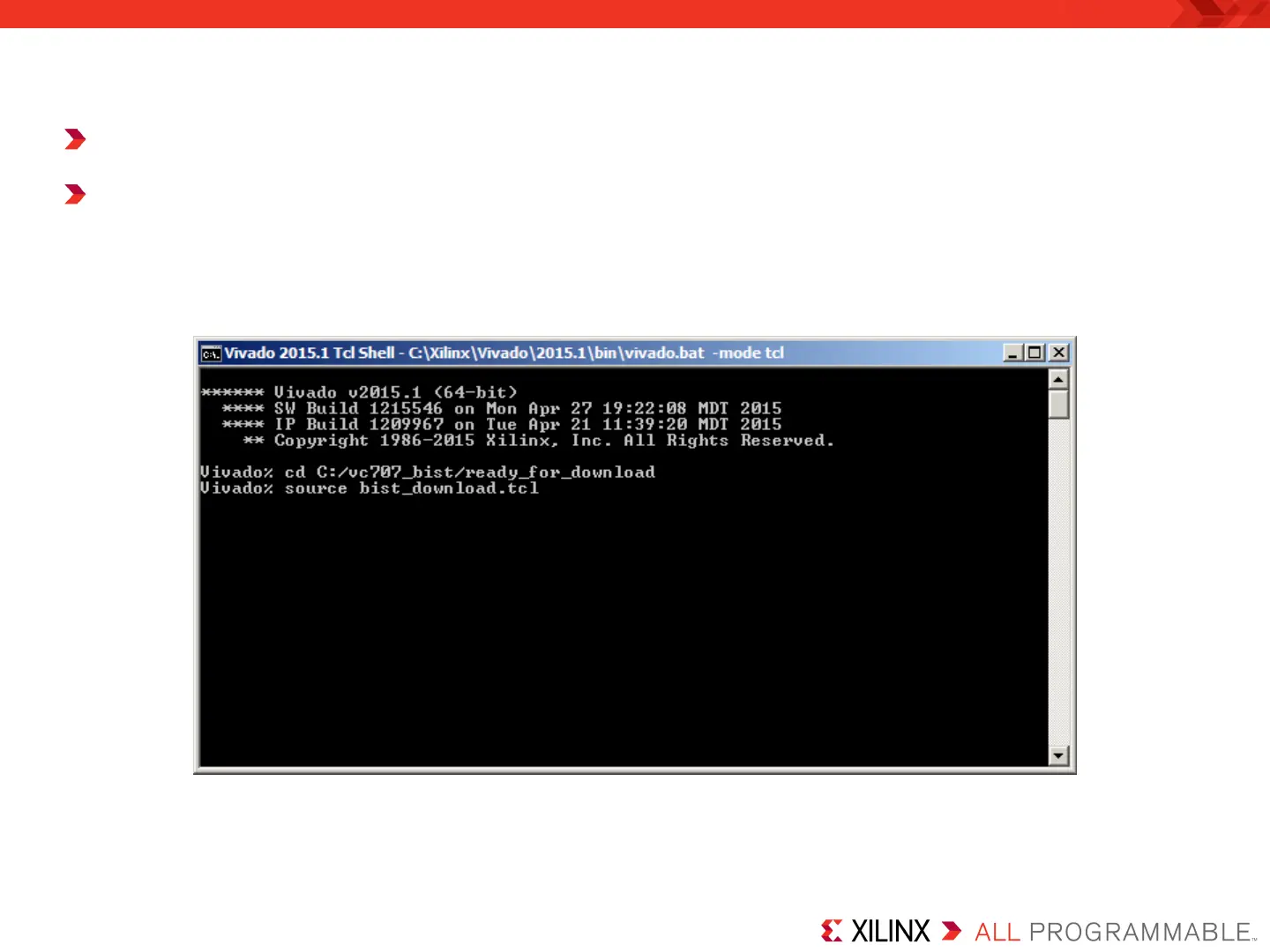

In the Vivado Tcl Shell type:
cd C:/vc707_bist/ready_for_download
source bist_download.tcl
Note: Presentation applies to the VC707

Xilinx VC707 Specifications

General

Form Factor	ATX
FPGA Device	XC7VX485T
FPGA Family	Virtex-7
Logic Cells	485, 760
DSP Slices	2, 800
Operating Temperature	0°C to +85°C
Flash Memory	128 Mb (for configuration)
Configuration	JTAG, SPI Flash
Connectivity	USB
Expansion Connectors	FMC
USB	USB 2.0
PCIe Gen2/Gen3 Support	Yes
Ethernet	1 Gbps
Power Supply	ATX
