Reference System Description

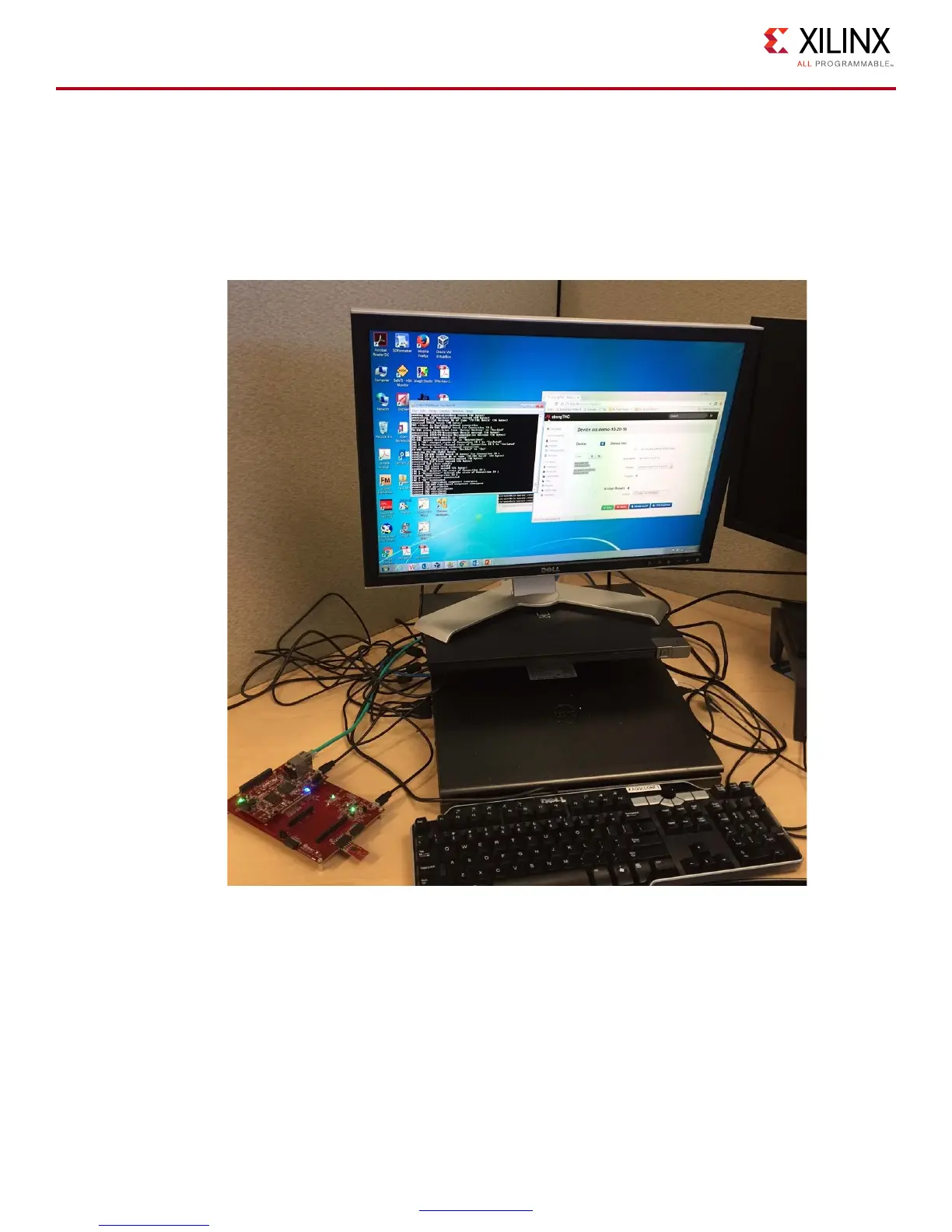

Figure 3 shows a desktop setup for the single client system used in the reference design.The
client in the Avnet IIoT drives a communication terminal. The strongSwan attestation server
runs from VirtualBox. A browser is used to view the measurements and the implementation of
the policy.
X-Ref Target - Figure 3
Figure 3: Measured Boot Reference Design
X18725-020317

Xilinx Zynq-7000 Specifications

General

Series	Zynq-7000
Number of Cores	Dual-core
Processor Speed	Up to 1 GHz
Device Type	SoC
Logic Cells	Up to 350K
DSP Slices	Up to 900
External Memory Interfaces	DDR3, DDR2, LPDDR2
I/O Standards	LVCMOS, HSTL, SSTL
Operating Temperature	-40°C to +100°C (Industrial), 0°C to +85°C (Commercial)
Package Options	Various BGA packages
I/O Voltage	3.3V
