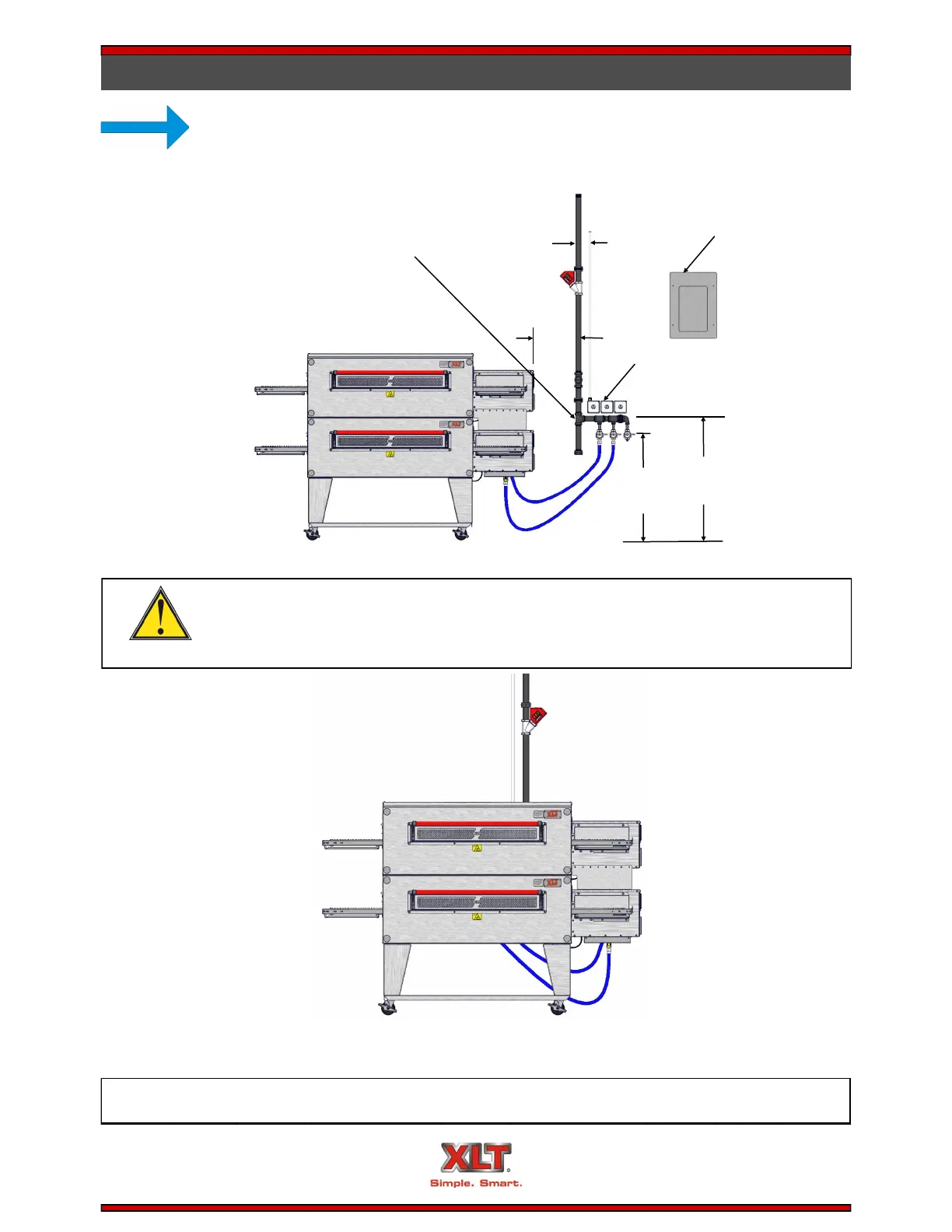

OVEN ONLY ROUGH-IN SPECIFICATIONS
NOTE: All dimensions in inches [millimeters], ± 1/4 [6], unless otherwise noted.
NOTE
Incoming gas line MUST go beside the oven on the control box side.
Acceptable Installation
Unacceptable Installation
Utilities must be easily accessible when the ovens are in the installed position. Do
not install utilities behind the ovens.
CAUTION
42.00
[1067]
48.00
[1219]
6.00
[152]
3.00
[76]
Electrical Supply
Gas Manifold
Electrical Panel
