XPower Easy Max User Manual

- 36 -
Drawing No.
Name or
function
What it is for
1
Current pressure
display
Indicates the current pressure in Bar
2
Power supply It lights up when the inverter is on
3
Pump
When the motor speed is adjusted by the inverter,
the indicator flashes quickly. Where there is not enough water
or there is a constant speed, it flashes slowly.
When it automatically stops, the light remains fixed.
When the motor is manually turned off, then the light turns off
4
NET
serial network
When one or more inverters are connected, the LED of the first
inverter is lit steady while in the others it flashes.
5
Pressure setting
indicator
It lights up when it adjusts pressure
6
Low water
indicator
When the water level inside the pipes is low, the indicator turns on
and the system is rebooted. The reboot interval time is 8 seconds,
1 minute, 10 minutes, 30 minutes, 1 hour, 2 hours, infinitely
7
Pressure set
display
Indicates the pressure set in Bar.
The factory setting is 3 Bar.
8
Button to
decrease
The button decreases the value set by 0.1 Bar each time
it is pressed. If held down it quickly decreases the value
9
Button to
increase
The button increases the value set by 0.1 Bar each time
it is pressed. If held down it quickly increases the value
10
Stop button
It manually stops the electric pump.
Press this button to leave the low water level status.
11
Start button
It manually starts the electric pump.
Press this button to leave the low water level status.
1 2 3 4
11
5
10
6
9
7
8

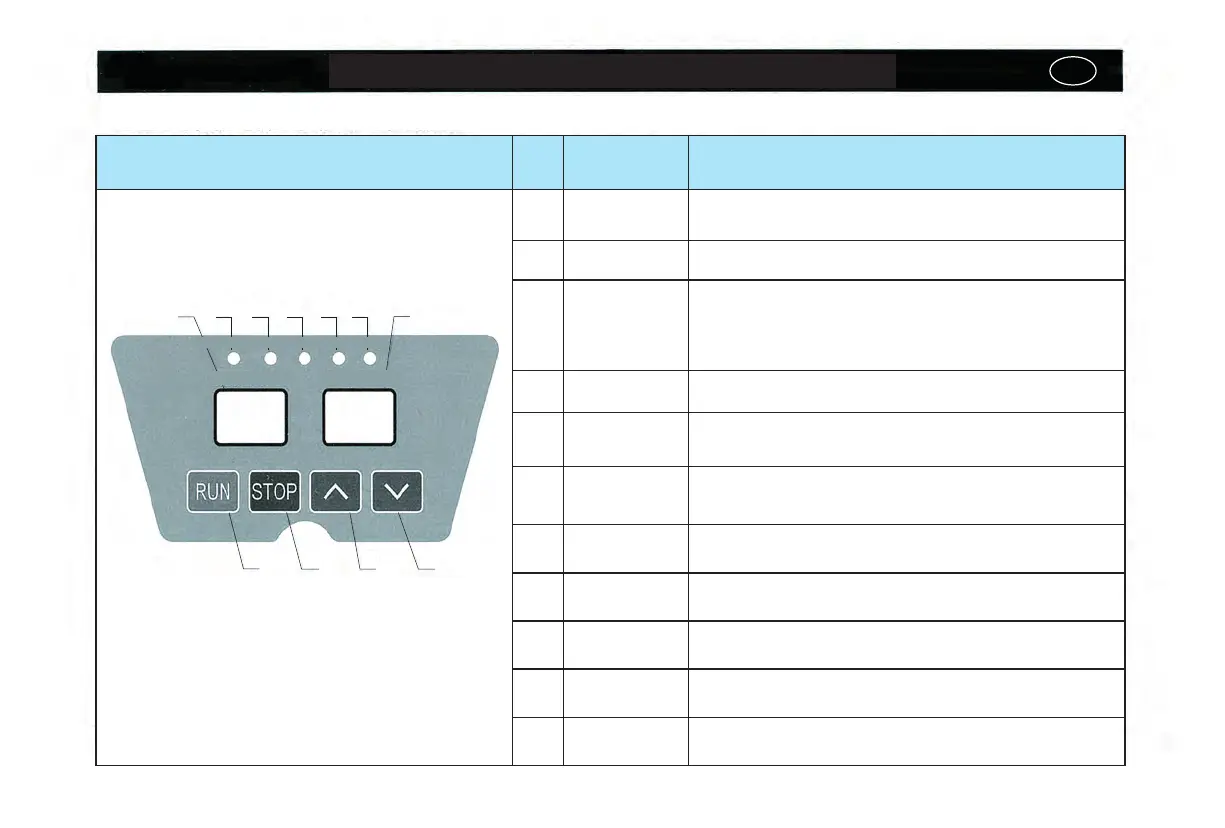

4. Instructions for installation and use
4.3.3 Keys and functions guide
POWER SUPPLY PUMP SETNET ERROR
Current Pressure
Pressure Set
GB
