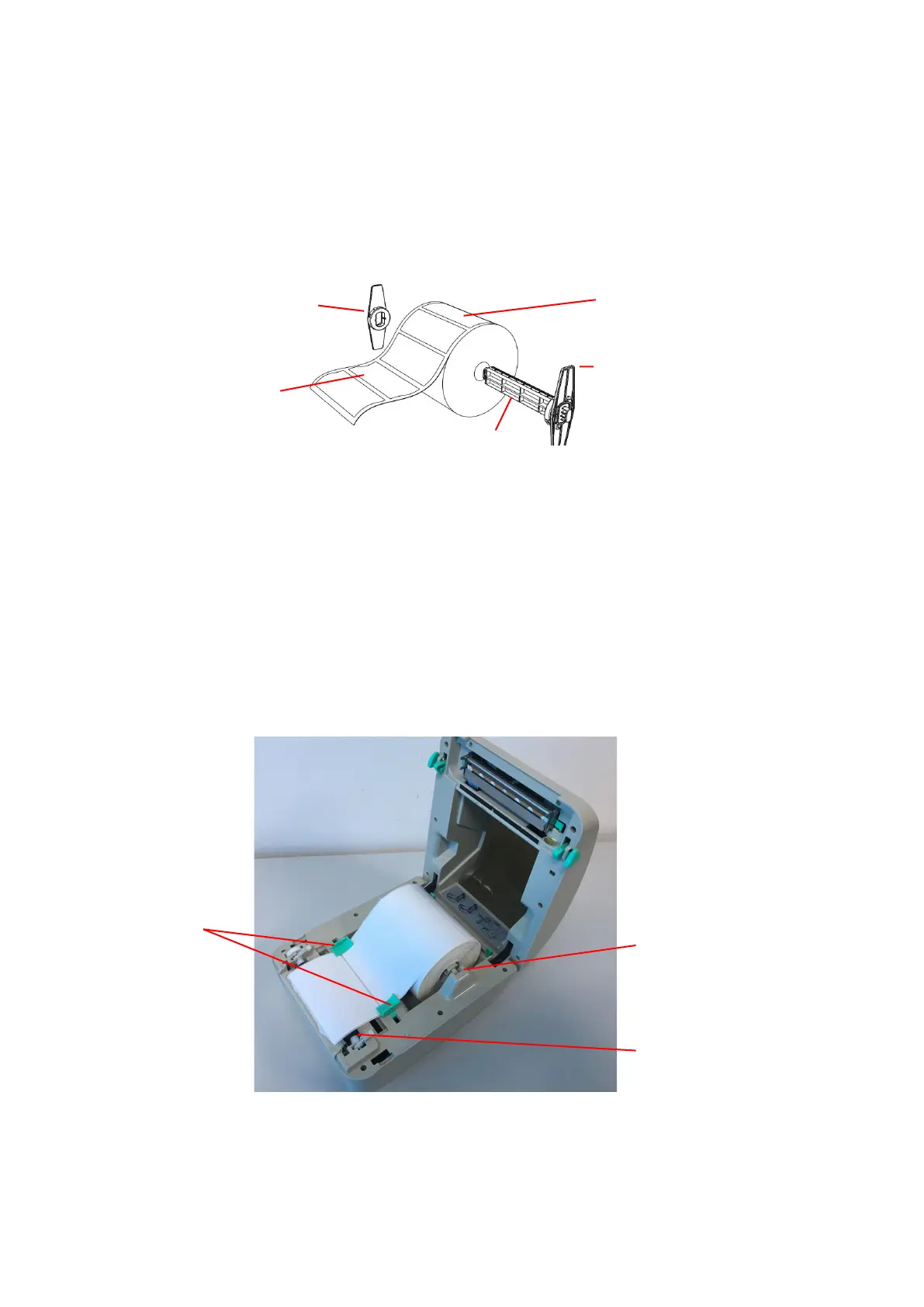

3.2 Loading Label Stock
1. Insert a 1” label spindle into a paper roll (If your paper core is 1 inch, remove the 1.5
inch core adapter from the fixing tab).
1.5” Core Adapter
Label Roll
Fixing Tab
Printing Side Face up
1” Label Spindle
2. Open the printer’s top cover by releasing the green top cover open levers located
on both sides of the printer and lifting the top cover.
3. Place a roll of paper into internal paper roll mount.
4. Feed the paper, printing side face up, through the label guides and place the label
over the platen.
5. Adjust the label guides in or out so they are slightly touch the edges of the label backing.
Label Guide
Label Roll Mount
Platen
