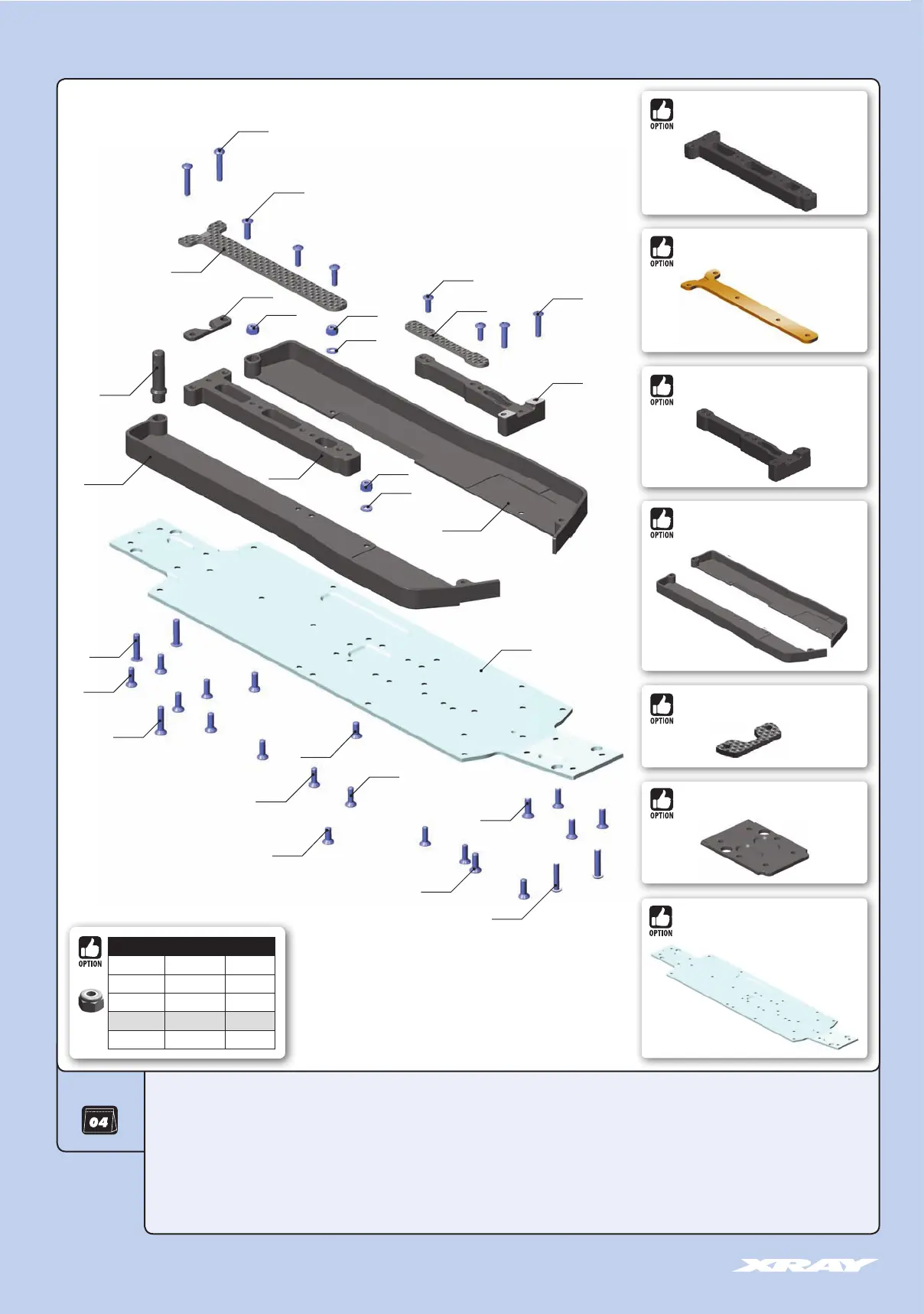

4. FRONT & REAR ASSEMBLY
BAG
361178 GRAPHITE CHASSIS BRACE UPPER DECK 2.0MM
361182 COMPOSITE REAR LOWER BRACE
361296 COMPOSITE CHASSIS BRACE FRONT - HARD
361297 COMPOSITE CHASSIS BRACE REAR - HARD
361298 GRAPHITE CHASSIS WIRE COVER 2.0MM - V2
361320 BODY MOUNT, BATTERY MOUNT - V2 & WING SHIM (2)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
902312 HEX SCREW SH M3x12 (10)
903310
903310
903310
903310
903310
902314
903308
903308
361269-H
361297
902314
903314
361269-H
960030
960030
960030
961032
961032
361296
361182
361178
361320
361105
902312
902310
902316
902314 HEX SCREW SH M3x14 (10)
902316 HEX SCREW SH M3x16 (10)
903308 HEX SCREW SFH M3x8 (10)
903310 HEX SCREW SFH M3x10 (10)
903314 HEX SCREW SFH M3x14 (10)
960030 NUT M3 (10)
961032 WASHER S 3.2 (10)
361105 ALU CHASSIS - SWISS 7075 T6 (2MM)
361269-H COMPOSITE CHASSIS SIDE GUARDS L+R - HARD
361298
902308
#361181
GRAPHITE REAR LOWER BRACE 2.0MM
#361262
COMPOSITE REAR CHASSIS PLATE
#361106
ALU CHASSIS - SWISS 7075 T6 (2.5MM)
#361269-M
COMPOSITE CHASSIS SIDE GUARDS
L+R - MEDIUM
#361294
COMPOSITE CHASSIS BRACE FRONT - MEDIUM
#361295
COMPOSITE CHASSIS BRACE REAR - MEDIUM
#361179
BRASS CHASSIS BRACE REAR (40g)
ALU NUTS M3
#296530-B ALU BLUE OPTION
#296530-K ALU BLACK OPTION
#296530-O ALU ORANGE OPTION
#960030 STEEL SILVER INCLUDED
#960031 ALU SILVER OPTION
